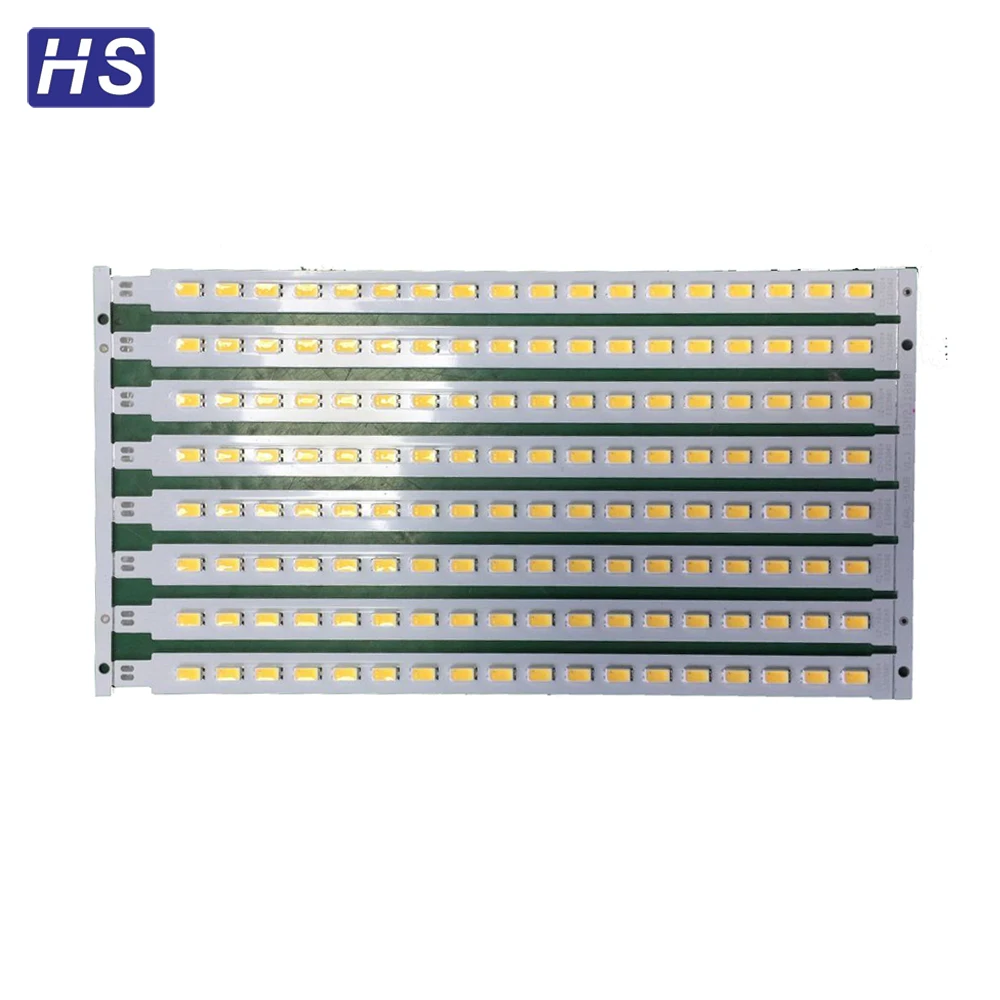

Shenzhen Aluminum circuit board pcb factory PCB supplier

US $3.00 / piece
2 piece(s)Minimum order
Model Number:
HS pcb manufacturer
Type:
LED PCB
Place of Origin:
Guangdong, China
Brand Name:
HS
Base Material:
94v0 Aluminum PCB
Copper Thickness:
1-3oz
Privacy Policy: Samples are free within a certain price range

Contact us

Send Inquiry

Quik Detail

Model Number

HS pcb manufacturer

Type

LED PCB

Place of Origin

Guangdong, China

Brand Name

HS

Base Material

94v0 Aluminum PCB

Copper Thickness

1-3oz

Board Thickness

0.1-3.0mm

Min. Hole Size

0.3mm

Min. Line Width

0.2mm

Min. Line Spacing

0.2mm

Surface Finishing

HASL OSP ENIG

Product name

Aluminum PCB

Solder mask

Green Blue Red Black White

Warranty

2 years

Number of layers

1-12 layers

Design service

Available

Testing

Function testing,fly probe testing

Delivery

DHL UPS FedEs EMS

Payment

Paypal Western Union TT

Produce clone

acceptable

other services

components purchase and assembly

Product Detail

Shenzhen Aluminum circuit board pcb factory PCB supplier

We can do for you:

 112 layer FR4 PCB,1 layer Aluminum PCB,1-4 layer Flexible PCB.

 13oz copper thickness.

 0.2mm hole size.

 0.1mm track width/space.

 SMT PCBA service.













FAQ:

Q:1.Can i have a sample to test?

  A:Yes,we can send you samples to test.



Q:2.What specifications do you need for PCB quotation?

  A:We need your PCB Gerber file,board thickness,copper thickness,surface finishing and quantity to quote you.



Q:3.What is the lead time?

  A:Samples need 3-5days,mass production needs 7-10days,also according to the order volume.



Q:4.Do you have MOQ limit?

  A:Even 1 pcs,we care.



Q:5.Can you offer the best price for us?

  A:Yes,we are specialized PCB manufacturer directly,we can offer lower price than any trading company.



Q:6.How do you ship the goods and how long does it take arrival?

  A:We usually ship by DHL,UPS,FedEx and TNT.It takes 3-5days to arrive.



Q:7.What are the payment terms?

  A:You can pay us with Paypal,Western Union and T/T Bank.



Q:8.Can we visit your factory?

  A:Yes,welcome to visit our factory anytime,and we will lead you to visit our  factory and our production line.



Manufacturing Capability:

item

Manufacture Capability

Material

FR-4/HiTg FR-4/Lead free Materials /CEM-3, Aluminium, Metal based

Layer No.

1-12

Finished board thickness

0.1 mm-4.0mm’(8 mil-150 mil)

Board Thickness Tolerance

±10%

Cooper thickness

0.5 OZ-3OZ (18 um-385 um)

Copper Plating Hole

18-40 um

Impedance Control

±10%

Warp&Twist

0.70%

Peelable

0.012"(0.3mm)-0.02’(0.5mm)

Images

Min Trace Width (a)

0.075mm (3mil)

Min Space Width (b)

0.1mm (4 mil)

Min Annular Ring

0.1mm (4 mil)

SMD Pitch (a)

0.2 mm(8 mil)

BGA Pitch (b)

0.2 mm (8 mil)

Solder Mask

Min Solder Mask Dam (a)

0.0635 mm (2.5mil)

Solder mask Clearance (b)

0.1mm (4 mil)

Min SMT Pad spacing (c)

0.1mm (4 mil)

Solder Mask Thickness

0.0007"(0.018mm)

Holes

Min Hole size (CNC)

0.2 mm (8 mil)

Min Punch Hole Size

0.9 mm (35 mil)

Hole Size Tol (+/-)

PTH:±0.075mm;NPTH: ±0.05mm

Hole Position Tol

±0.075mm

Plating

HASL

2.5um

Lead free HASL

2.5um

Immersion Gold

Nickel  3-7um  Au:1-5u''

OSP

0.2-0.5um

Outline

Panel Outline Tol (+/-)

CNC: ±0.125mm, Punching: ±0.15mm

Beveling

30°45°

Gold Finger angle

15° 30° 45° 60°

Certificate

ROHS,  ISO9001:2008,  SGS,  UL certificate
