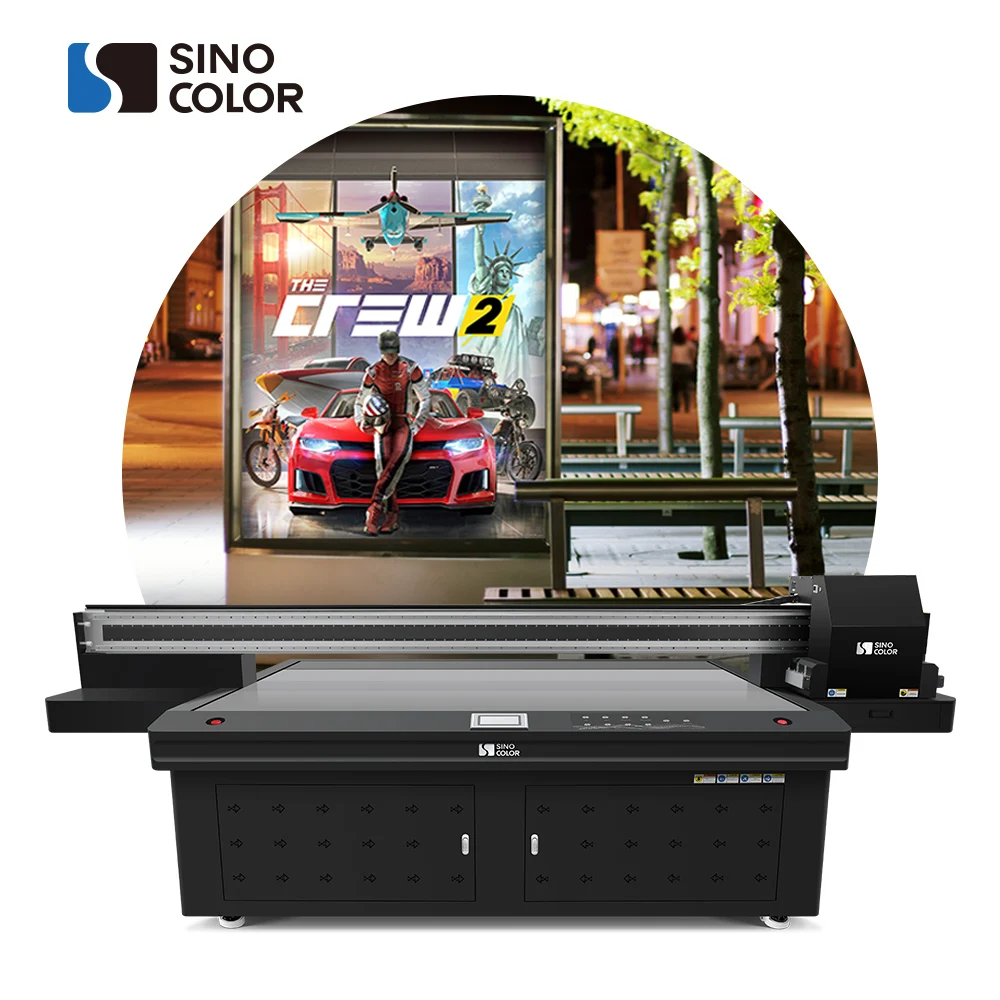

SinoColor 2513 I1600 2/ 3/ 4/ 6/ 8 Heads Gen5 Gen6 Glass Acrylic Ceramic Metal Wood PVC PP PE PTFE Best Flatbed 3D Uv Printer
US $19,999.00-25,800.00 / set
1 set(s)Minimum order
Type:
Inkjet Printer
printing size:
2500mm*1300mm
condition:
New
Plate Type:
Flatbed Printer
place of origin:
Shanghai, China
brand name:
SinoColor
Privacy Policy:
Samples are free within a certain price range
Other recommendations for your business
Contact us
Quik Detail
| Type | Inkjet Printer |
|---|---|
| printing size | 2500mm*1300mm |
| condition | New |
| Plate Type | Flatbed Printer |
| place of origin | Shanghai, China |
| brand name | SinoColor |
| usage | Paper Printer, Label Printer, Card Printer, Leather printer |
| automatic grade | Automatic |
| Color & Page | Multicolor |
| Voltage | 110v or 220v |
| dimensions(l*w*h) | L4120 W2000 H1400 (mm) |
| weight | 1300 KG |
| warranty | 1 Year |
| ink type | UV Ink |
| Model | SinoColor FB-2513S |
| Printheads | Epson i3200-U /Riocoh GEN5/ GEN6 |
| Printing Size | 2500 x 1300 (mm) |
| Speed | 50 sqm/h (CMYK, 4 heads ) |
| Color | CMYK / CMYK+W/ CMYK+W+V/CMYK+ W+V + Pre-treating liquid |
| Resolution | Max 2400dpi |
| Ink Type | UV Ink |
| Media Type | Glass, Acrylic, Ceramic, Metal, Wood,etc |
| Rip Software | Maintop (Standard)/ FlexiPrint (Optional) |
| Warranty | 15 months warranty, lifetime online support |
| Applicable Industries | Manufacturing Plant, Printing Shops, Other, Advertising Company |
| Key Selling Points | High-accuracy |
| Machinery Test Report | Provided |
| Video outgoing-inspection | Provided |
| Warranty of core components | 1 Year |
| Marketing Type | New Product 2022 |
| Core Components | motor, PLC, Circuit Boards |
Product Detail
SinoColor 2513 i1600 2/ 3/ 4/ 6/ 8 heads Gen5 Gen6 Glass Acrylic Ceramic Metal Wood PVC PP PE PTFE best flatbed 3D uv printer
Specification
Model NO. | FB-2513S Outdoor Uv Flat Bed Printer | ||
Printhead | 2/3/4 pcs Epson i3200-U Printheads (Ricoh GEN5 GEN6 Available) | ||
Printhead Height | Max 12cm | ||
Resolution(dpi) | 2400dpi Max | ||
Media | Max Size | 2500 x 1300 (mm) (Can also customize the 200x300cm or 200x320cm) | |
Types | Glass, Acrylic, Ceramic, Metal, Paper, Wood, Leather, PVC , PP, Etc. | ||
Ink | Type | UV Ink | |
Color | CMYK / CMYK+White / CMYK+White+Varnish /CMYK+ White+Varnish + Pre-treating liquid | ||
Capacity | 500 ML per main tank of each color, Automatic ink quantity monitoring, non-stop with ink | ||
Dry System | UV_LED light system | ||
Speed | Draft | 50 sqm/h ( CMYK, 4 heads ) | |
Production | 32 sqm/h ( CMYK, 4 heads ) | ||
Quality | 23 sqm/h ( CMYK, 4 heads ) | ||
Vacuum System | Vacuum System | Electric controlled, Support by 2 Independent Air Pump (Four Zones) | |
Machine Vision System (AI Visual Positioning) | Available. Supported by CCD /CIS camera | ||
Rip Software | MainTop (Standard) / FlexiPrint (Optional) | ||
PC Operation System | Windows 7/XP/10 | ||
Operation environment | Temperature: 18°C – 26°C ; Humidity : 40% – 60% | ||
Power Supply | Max 3.6KW, AC, 50/60Hz, 220V(±10%)>12A | ||
Image Format | TIFF, JPEG, EPS, PFD | ||
Size | Machine | L4120 W2000 H1400 (mm) | |
Packing | L4300 W2280 H1790 (mm) | ||
Weight | Machine | 1300 KG | |
Packing | 1500 KG | ||
Company Introduction
After Sale Service Introduction
Features
Packing&Shipping
1 set in 1 poly-wood box. Standard packing fit for international shipping. Safe.
Packing Size:L4300 W2280 H1790 (mm)
Gross weight:1500KG
Delivery lead time:7 working days after receipt of down payment.
Gross weight:1500KG
Delivery lead time:7 working days after receipt of down payment.
Our Certificate
