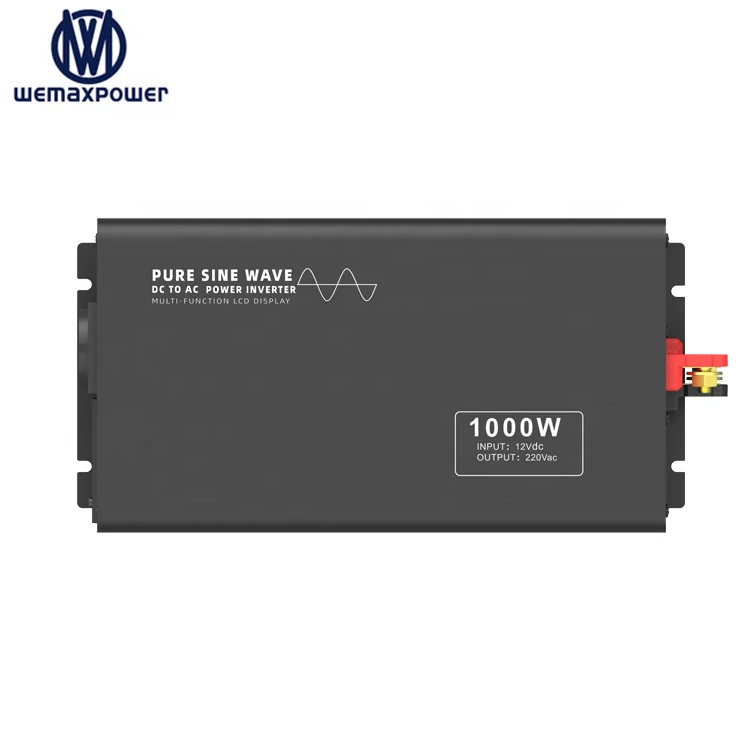

Smart LCD Display 12V/24V/48V to 220V/230V/240V 50Hz/60Hz 1000w DC to AC Pure Sine Wave Power Inverter
Other recommendations for your business
Contact us
Quik Detail
| Network | / |
|---|---|
| Place of Origin | Guangdong, China |
| Brand Name | WEMAXPOWER |
| Model Number | WMX-DSA1000-12/24/48 |
| Type | DC/AC Inverters |
| Output Type | Single Phase |
| Output Current | 4.5A |
| Output Frequency | 50/60HZ |
| Size | 310*173*76mm |
| Weight | 3KG |
| Product name | DC AC Pure Sine Wave Converter Power Inverter |
| Output Voltage | 400*242*88mm |
| Warranty | 12 Months |
| Display | Smart LCD Display |
| Output waveform | Pure Sine Wave |
| Rated power | 1000W |
| Efficiency | MAX 90% |
| Peak power | 2000W |
| Inverter type | High Frequency Portable Power Inverter |
| Input voltage range | 10-15V / 20-30V/40-60V |
| Certificate | CE & Rohs |
| Customized support | LOGO, Output Socket |
Product Detail
提示信息
Smart LCD Display 12V/24V/48V to 220V/230V/240V 50Hz/60Hz
1000w DC to AC Pure Sine Wave Power Inverter
< 1000W Smart DC AC Power Invetrer >
Smart LCD Display 12V/24V/48V to 220V/230V/240V 50Hz/60Hz 1000w DC to AC Pure Sine Wave Power Inverter
|
WEMAXPOWER |
|||
|
Product Name |
Smart LCD Display Pure Sine Wave DC to AC Power Inverter |
||
|
Model |
WMX-DAS1000-12 |
WMX-DAS1000-24 |
WMX-DAS1000-48 |
|
DC Input |
|||
|
DC Input voltage |
12V |
24V |
48V |
|
DC Input voltage range |
10~15V |
20~30V |
40~60V |
|
AC Output |
|||
|
AC Output Voltage |
220Vac±5% | 230Vac±5% | 240Vac±5% |
||
|
Output Frequency |
50Hz or 60Hz±0.1% |
||
|
Output Rate Power |
1000W |
||
|
Output Peak Power |
2000W |
||
|
Wave |
Pure Sine wave |
||
|
Smart LCD Display |
With Digital LCD Display (Input Battery ratio, Temperature , DC input voltage , Output power, Load ratio, output frequency and alarm information ) |
||
|
Conversion Efficiency |
≥90% |
||
|
Multi Protect function |
|||
|
Input Low Voltage Protection |
12V (10V±0.3) | 24V (20V±0.3) | 48V (40V±0.3) |
||
|
Input Recovery voltage |
12V (13.2V±0.3) | 24V (25.5V±0.3) | 48V (51V±0.3) |
||
|
Input Over voltage Protection |
12V (15V±0.3) | 24V (30V±0.3) | 48V (60V±0.3) |
||
|
Over temperature Protection |
Over temperature protection : 80°±5° |
||
|
No-load current |
0.6A |
||
|
Over load protection |
≤130% |
||
|
Total Harmonic Distortion |
≤4% full load |
||
|
Working temperature |
-5~+50℃ |
||
|
Storage temperature |
-20~+70℃ |
||
|
Cooling method |
Forced air cooling |
||
|
Size(mm) |
310*173*76mm |
||
|
Weight (kg) |
3kg |
||
1. Q:Why your quotation is higher than other suppliers?
A:In domestic market, the high and low inverter brands are mixed together. There are many low-cost inverter is actually some assembled small unlicensed workshops, it crudely, to reduce costs and use of substandard components for assembly, there is a very big security risk! In order to protect the pro personal and property safety, please do not covet low price, be sure to choose a reliable inverter.
2. Q:How many categories does it have according to the output waveform ?
A:Type one: WEMAXPOWER Sine Wave inverter, which uses PWM pulse width modulation to generate modified sine wave. Due to the usage of intelligent dedicated circuit and high power field effect tube, it greatly reduces the power loss and increases the soft-start function, effectively ensuring the reliability of the inverter. If the power quality is not highly demanded, it is able to meet the needs of most electrical equipment. But it still exists 20% harmonic distortion problems when running sophisticated equipment, can also cause high-frequency interference to radio communications equipment. This kind of inverter can meet the basic needs of most of our power, high efficiency, small noise, moderate price, and thus become the mainstream products in the market.
Type two: WEMAXPOWER Pure Sine Wave inverter, which adopts isolated coupling circuit design, high efficiency, high stability of the output waveform, high-frequency technology, small in size, suitable for all kinds of load, can be connected to any common electrical devices and inductive load devices (such as refrigerators, electric drill, etc.) without any interference (eg: buzz and TV noise). The output of pure sine wave inverter is the same as the grid tie power we daily used, or even better, because it does not exist grid tie electromagnetic pollution.
3. Q:Is the output voltage of our inverter stable ?
A:Absolutely. Our inverter is designed with a good regulator circuit. You can even check it when measuring the true value by a multimeter. Actually the output voltage is quite stable. Here we need make a especial explanation : many customers found it is unstable when using conventional multimeter to measure voltage. We can say the operation is incorrect. Ordinary multimeter can only test pure sine waveform and calculate datas.
4. Q:What is a resistive load appliances?
A:Generally speaking, appliances like mobile phones, computers, LCD TVs, incandescents, electric fans, video broadcast, small printers, electric mahjong machines, rice cookers etc. All belong to resistive loads. Our modified sine wave inverters can drive them successfully.
5. Q:What is the inductive load appliances?
A:It refers to the application of electromagnetic induction’s principle, produced by high-power electrical products, such as motor type, compressors, relays, fluorescent lamps, electric stove, refrigerator, air conditioner, energy saving lamps, pumps, etc. These products’power are far more than the rated power (about 3-7 times) when start. So only pure sine wave inverter is available to them.
6. Q:What should be noticed when installing inverter?
A:Put the product in a place where is well ventilate,cool, dry and water-proof. Pls do not stress and put foreign objects into the inverter.Remember to turn on the inverter before turn on the appliance.
Any question for Smart LCD Display 12V/24V/48V to 220V/230V/240V 50Hz/60Hz 1000w DC to AC Pure Sine Wave Power Inverter, please contact us.
