Taidacent Infared Liquid Float Dual Level Alarm Control Switch Water Tank Level Switch Sensor Water Level Relay Switch
US $20.88-26.68 / piece
2 piece(s)Minimum order
Model Number:
Tdwaterlevel
Place of Origin:
Guangdong, China
Brand Name:
Taidacent
Description:
Water Level Detection alarm
Usage:
Level Sensor
Output:
Switching Transducer
Privacy Policy:
Samples are free within a certain price range
Other recommendations for your business
$2.09-2.68
2 pieces (MOQ) Contact us
Quik Detail
| Model Number | Tdwaterlevel |
|---|---|
| Place of Origin | Guangdong, China |
| Brand Name | Taidacent |
| Description | Water Level Detection alarm |
| Usage | Level Sensor |
| Output | Switching Transducer |
| Application | Industrial Automation |
| Current - Supply | 30A |
| Voltage - Supply | AC 85~265V |
| Output Type | Relay output |
| Operating Temperature | -20c to 80c |
Product Detail
Taidacent Infared Liquid Float Dual Level Alarm Control Switch Water Tank Level Switch Sensor Water Level Relay Switch
1, the working voltage: AC85 ~ 265V
2, the working current: <100MA
3, output: relay switch output withstand current up to 30A
4. Response time: <500ms
6. Insulation resistance: 100MΩ
7, the working temperature: -30 ~ 80 oC
8, Operating Humidity: 0-100% RH
9, waterproof features: sensors fully sealed waterproof design
10. Installation: M15 * 12 round hole
11. Lead Length: 0.5 m [default]
12, Weight: 90g

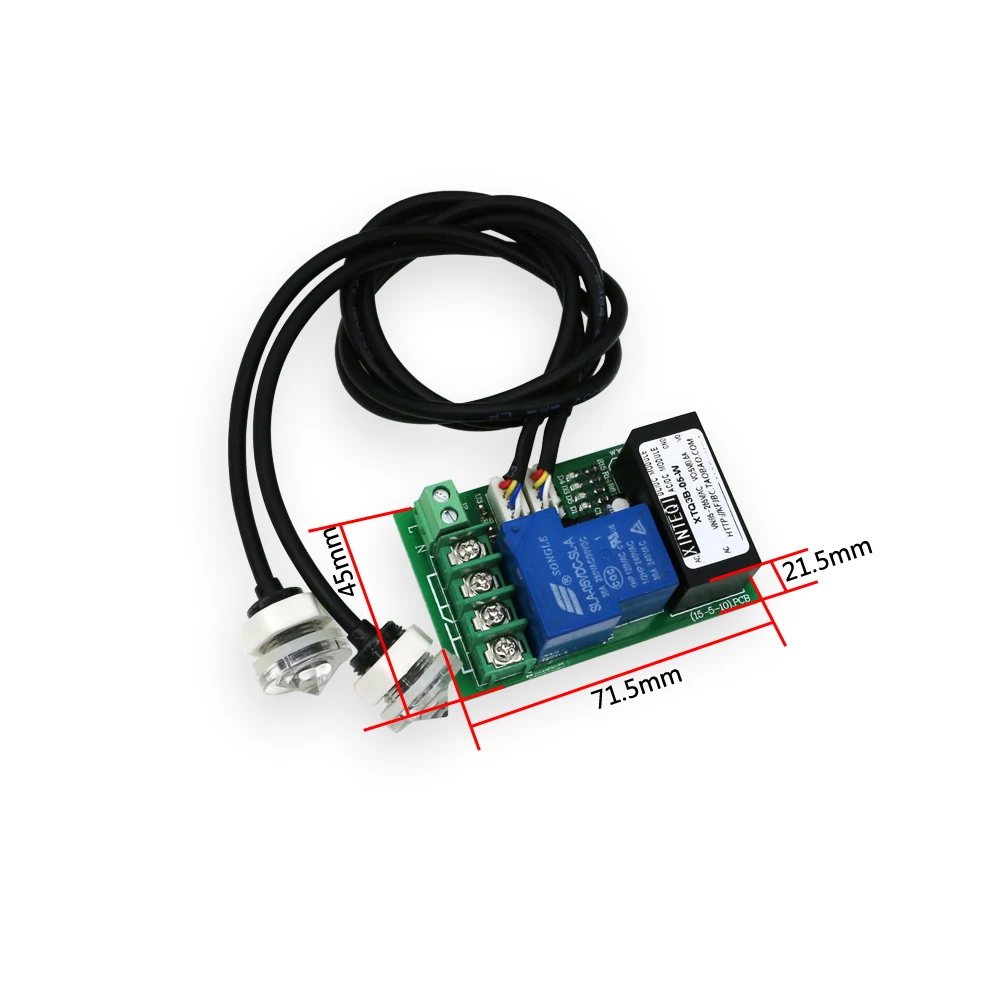

13, size: 72 * 45 * 24mm
2, the working current: <100MA
3, output: relay switch output withstand current up to 30A
4. Response time: <500ms
6. Insulation resistance: 100MΩ
7, the working temperature: -30 ~ 80 oC
8, Operating Humidity: 0-100% RH
9, waterproof features: sensors fully sealed waterproof design
10. Installation: M15 * 12 round hole
11. Lead Length: 0.5 m [default]
12, Weight: 90g
13, size: 72 * 45 * 24mm
Output | Relay output |
Voltage | AC85 to 265V |
How it works

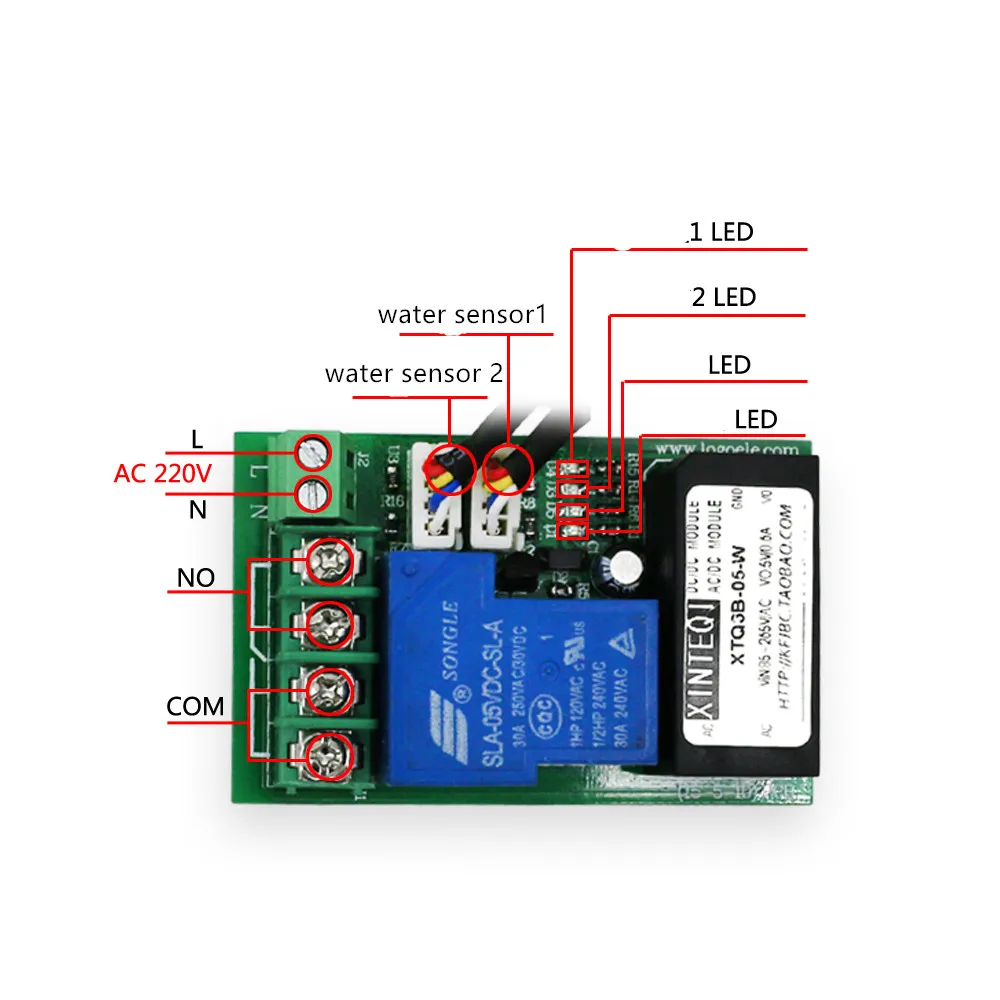

D3, D4, respectively, corresponding to the two level sensors, to the container plus liquid, the following sensor first contact
with the liquid, D3 bright. And then add liquid up to the top of the sensor, D4 light, this time, the response of the D1 indicator
light, the module on the relay action, control the work outside the pumping equipment. Only when the pump is lower than the bottom
of the sensor, this time D3 and D4 two sensor lights completely off, the relay off. Pumping equipment to stop working..
with the liquid, D3 bright. And then add liquid up to the top of the sensor, D4 light, this time, the response of the D1 indicator
light, the module on the relay action, control the work outside the pumping equipment. Only when the pump is lower than the bottom
of the sensor, this time D3 and D4 two sensor lights completely off, the relay off. Pumping equipment to stop working..
Applications:
Industrial field, laboratory, tank automatic water level control system such as the need to protect the situation, and general
industrial field level control;
industrial field level control;
