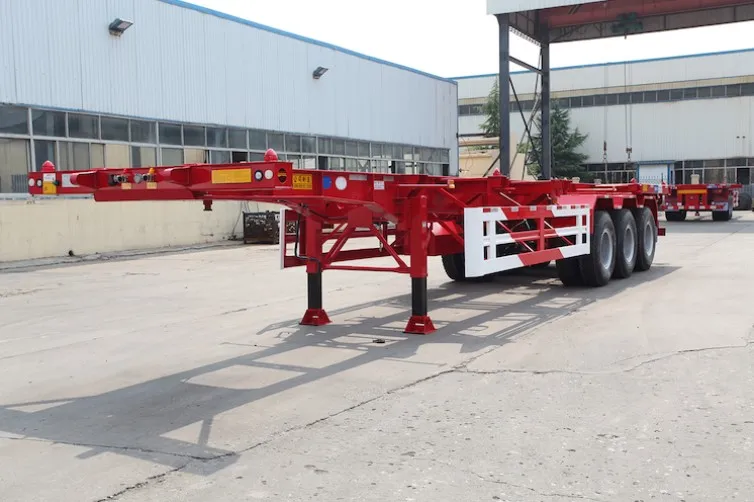

Vehicle Master 30t Skeleton Semi Trailer 45 Ton Skeletal Container Semi Trailer Skeletal Container Semitrailer
US $7,000.00-8,000.00 / set
1 set(s)Minimum order
Use:
Truck Trailer
Type:
Semi-Trailer
Material:
Steel
Size:
12500*2500*1550mm
Max Payload:
40T
Place of Origin:
Shandong, China
Privacy Policy:
Samples are free within a certain price range
Other recommendations for your business
$7,000.00-10,000.00
1 set (MOQ)
$13,000.00-13,214.00
1 set (MOQ)
$7,000.00-8,000.00
1 set (MOQ)
$10,000.00-12,000.00
1 set (MOQ)
$7,000.00-8,000.00
1 set (MOQ)
$10,000.00-12,000.00
1 set (MOQ)
Contact us
Quik Detail
| Use | Truck Trailer |
|---|---|
| Type | Semi-Trailer |
| Material | Steel |
| Size | 12500*2500*1550mm |
| Max Payload | 40T |
| Place of Origin | Shandong, China |
| Brand Name | Vehicle Master Skeleton Semi Trailer |
| Axle Brand | BPW/ FUWA optional |
| Brake System | Double Line Air Brakes |
| Suspension | Air Suspension / Mechanical Suspension |
| Landing Gear | Manual Operation |
| Function | Transport 20ft 40ft Container |
| Keywords | Skeleton Semi Trailer/goose neck skeleton truck semi trailer |
| King pin | 2"(50mm)or3.5"(90mm) JOST |
| Main Beam | Hight:500mm, upper plate:14mm, down plate:16mm, middle plate:8mm |
| Tire | 11.00r20 12r22.5 315 385 80R22.5 |
| Condition | Brand-new |
Product Detail
Product picture
Detailed Images
Specifications
20FT Skeleton Semi Trailer | 40FT Skeleton Semi Trailer | 45FT Skeleton Semi Trailer | ||
Brand: Vehicle Master | Brand: Vehicle Master | Brand: Vehicle Master | ||
2 Axles/3 Axles | 3 Axles/ 4 Axles | 3 Axles/ 4 Axles | ||
20ft Container Loading | 1*40ft/2*20ft Container Loading | 1*45ft/1*40ft/2*20ft Container Loading | ||
Loading Capacity: 20-50 Tons | Loading Capacity: 30-80 Tons | Loading Capacity: 30-80 Tons | ||
Type: Gooseneck or Tandem | Type: Gooseneck or Tandem | Type: Gooseneck or Tandem | ||
Main Bean | ||||
Material: Q345/T700 | Material: Q345/T700 | Material: T700 | ||
Upper Plate Thickness: 12mm | Upper Plate Thickness: 14mm | Upper Plate Thickness: 10mm | ||
Middle Plate Thickness: 6mm | Middle Plate Thickness: 6mm | Middle Plate Thickness: 5mm | ||
Lower Plate Thickness: 12mm | Lower Plate Thickness: 16mm | Lower Plate Thickness: 10mm | ||
Height: 500mm | Height: 500mm | Height: 420mm | ||
Dimension | ||||
L*W*H: 7000mm*2480mm*1560mm | L*W*H: 12400mm*2480mm*1580mm | L*W*H: 13950mm*2500mm*1600mm | ||
Axle | ||||
2/3 Axles *13 Ton VEHCILE MASTER/FUWA/BPW | 3/4 Axles *13 Ton VEHCILE MASTER/FUWA/BPW | 3/4 Axles *13/16 Ton VEHCILE MASTER/FUWA/BPW | ||
Tire | ||||
12R22.5 (8/12 Pieces) Linglong/Triangle/Double Coin/Bridgestone | 12R22.5 (12/16 Pieces) Linglong/Triangle/Double Coin/Bridgestone | 12R22.5 (12/16 Pieces) Linglong/Triangle/Double Coin/Bridgestone | ||
Rim | ||||
9.00*22.5 (8/12 Pieces) Steel/Aluminum | 9.0*22.5 (12/16 Pieces) Steel/Aluminum | 9.00*22.5 (12/16 Pieces) Steel/Aluminum | ||
Leaf Spring | ||||
90mm*13mm*10 Pieces 90mm*16mm*10 Pieces | 90mm*13mm*10 Pieces 90mm*16mm*10 Pieces | 90mm*13mm*10 Pieces 90mm*16mm*10 Pieces | ||
King Pin | ||||
#50 (2")/#90 (3.5") JOST/Other Brand | #50 (2")/#90 (3.5") JOST/Other Brand | #50 (2")/#90 (3.5") JOST/Other Brand | ||
Landing Gear | ||||
28 Tons Two Speed JOST/Other Brand | 28 Tons Two Speed JOST/Other Brand | 28 Tons Two Speed JOST/Other Brand | ||
Twist Lock | ||||
4 Sets | 12 Sets | 12 Sets | ||
Painting | ||||
Electrophoresis Painting | Electrophoresis Painting | Electrophoresis Painting | ||
Product Details
After-sales service and warranty
Company Introduction
Vehicle Master
Since 1980s Brand VEHICLE MASTER was created, Whole Staff Begin to Think of truck trailer transportation, Through Almost 40 Years R&D, production and practice, Finally become famous Manufacturer and supplier of truck trailer. Vehicles Production Base over 40years of development and accumulation. The leading products including Container semi trailer, low bed semi trailer, fuel tank semi trailer, side wall semi trailer, cargo semi trailer, fence semi trailer, box semi trailer, tipper semi trailer, car carrier semi trailer and all types special purpose semi trailer. Sinotruk Shacman CC brands truck tractor, dump truck other truck series together with all spare parts, such as axles, landing gear, springs, suspension, etc.
Feature and Benefit
Packing & Delivery
