Wanmi Mechanical Seal Mg9 Mg1 for Centrifugal Pump
US $1.01-2.02 / piece
3 piece(s)Minimum order
size:
25
place of origin:
Hebei, China
Brand Name:
WM
model number:
MG1
Standard or Nonstandard:
Standard
Pressure in the sealed chamber:
≤1.6Mpa
Privacy Policy:
Samples are free within a certain price range
Other recommendations for your business
$0.10-1.00
1 piece (MOQ)
$0.35-0.69
100 pieces (MOQ)
$0.37-0.74
100 pieces (MOQ) Contact us
Quik Detail
| size | 25 |
|---|---|
| place of origin | Hebei, China |
| Brand Name | WM |
| model number | MG1 |
| Standard or Nonstandard | Standard |
| Pressure in the sealed chamber | ≤1.6Mpa |
| Temperature | -20℃-140℃ |
| Linear velocity | ≤10m/s |
| Stationary Ring | SIC |
| Ratary Ring | Carbon |
| Spring | SUS304 |
| secondary seal | NBR |
| Style | mechanical seal |
| OEM | yes |
Product Detail
Product Description

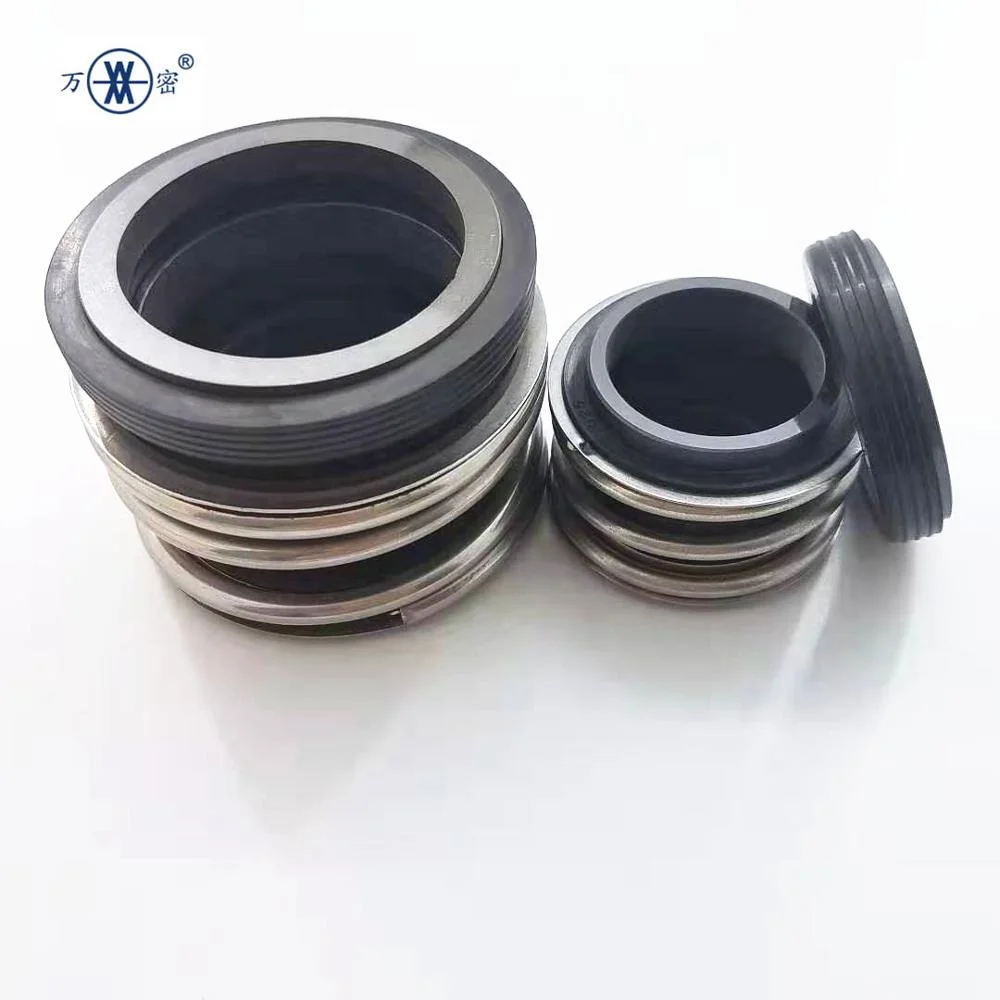

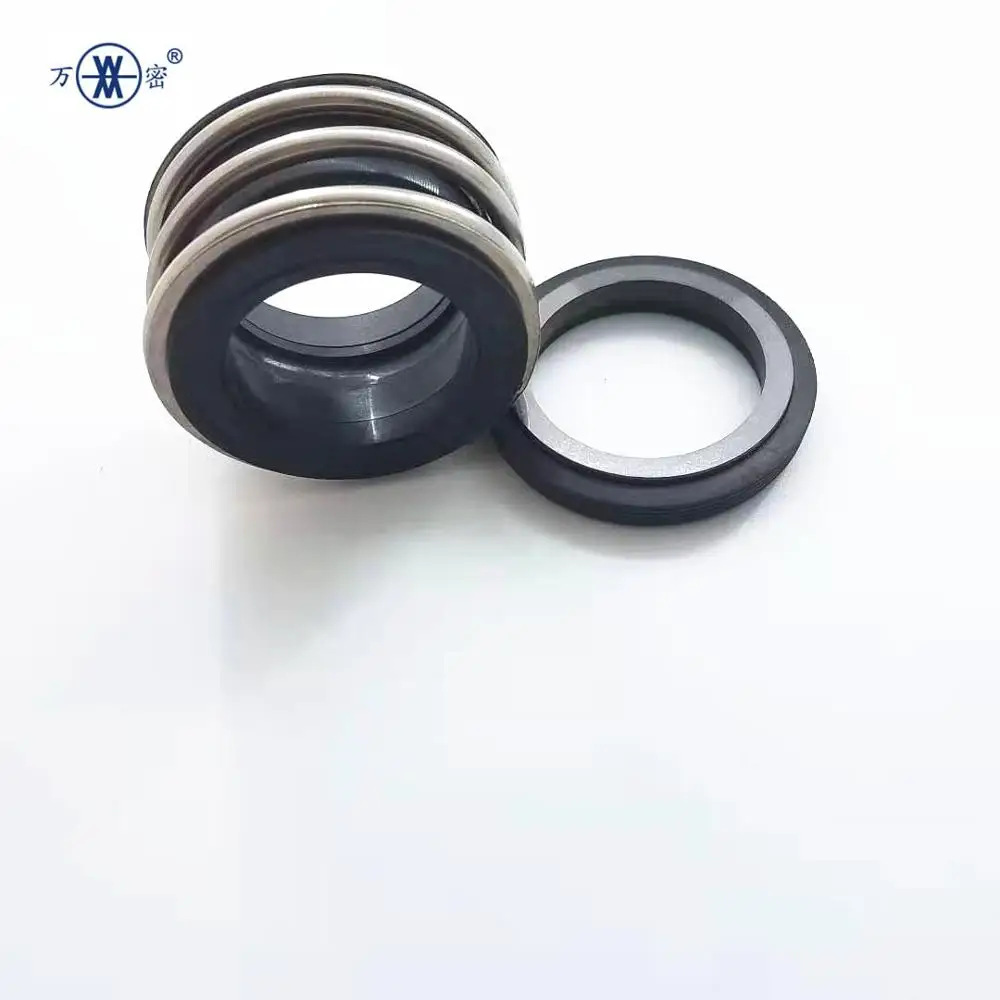

WM MG1 burgmann mechanical seal mg9 mg1 for centrifugal pump
Style | Mechanical seal |
Standarsd or Nostandard | Standard |
Temperature | -20℃~140℃ |
Pressure | ≤1.6Mpa |
Speeds | ≤ 10m/sec |
Rotary ring | CARBON/SIC/TC |
Stationary ring | CERAMIC/SIC/TC |
Secondary seal | NBR/VITON/EPDM |
Spring&Other parts | SUS304 |
OEM | yes |
Custom products | Accept custom |
Sample | yes |
Direction for use
使用说明
Used in differend pumps,mixers and other rotating equipments which apply to oil,water and other weak corrosive solutions.
Materials should be selected according to operation condition.
Size Information
Size Chart of This Design
shaft | d1 | d3 | D4 | D6 | D7 | d8 | D11 |
10 | 10 | 22.5 | 24 | 17 | 21 | 3 | 15.5 |
12 | 12 | 25 | 26 | 19 | 23 | 3 | 17.5 |
14 | 14 | 28.5 | 30 | 21 | 25 | 3 | 20.5 |
15 | 15 | 28.5 | 30 | 23 | 27 | 3 | 20.5 |
16 | 16 | 28.5 | 30 | 23 | 27 | 3 | 22 |
18 | 18 | 32 | 33 | 27 | 33 | 3 | 24 |
19 | 19 | 37 | 38 | 29 | 35 | 3 | - |
20 | 20 | 37 | 38 | 29 | 35 | 3 | 29.5 |
22 | 22 | 37 | 38 | 31 | 37 | 3 | 29.5 |
24 | 24 | 42.5 | 4 | 33 | 39 | 3 | 32 |
25 | 25 | 42.5 | 44 | 34 | 40 | 3 | 32 |
28 | 28 | 49 | 50 | 37 | 43 | 3 | 36 |
30 | 30 | 49 | 50 | 39 | 45 | 3 | 39.2 |
32 | 32 | 53.5 | 55 | 42 | 48 | 3 | 49.2 |
33 | 33 | 53.5 | 55 | 42 | 48 | 3 | 44.2 |
35 | 35 | 57 | 59 | 44 | 50 | 3 | 46.2 |
38 | 38 | 59 | 61 | 49 | 56 | 4 | 49.2 |
40 | 40 | 62 | 64 | 51 | 58 | 4 | 52.2 |
42 | 42 | 65.5 | 67 | - | - | 4 | - |
43 | 43 | 65.5 | 67 | 54 | 61 | 4 | 53.3 |
45 | 45 | 68 | 70 | 56 | 63 | 4 | 55.3 |
48 | 48 | 70.5 | 74 | 59 | 66 | 4 | 59.7 |
50 | 50 | 74 | 77 | 62 | 70 | 4 | 60.8 |
53 | 53 | 78.5 | 81 | 65 | 73 | 4 | 63.8 |
55 | 55 | 81 | 83 | 67 | 75 | 4 | 66.5 |
58 | 58 | 85.5 | 88 | 70 | 78 | 4 | 69.5 |
60 | 60 | 88.5 | 91 | 72 | 80 | 4 | 71.5 |
65 | 65 | 93.5 | 96 | 77 | 85 | 4 | 76.5 |
68 | 68 | 96.5 | 100 | 81 | 90 | 4 | 82.7 |
70 | 70 | 99.5 | 103 | 83 | 92 | 4 | 83 |
75 | 75 | 107 | 110 | 88 | 97 | 4 | 90.2 |
80 | 80 | 112 | 116 | 95 | 105 | 4 | 95.2 |
85 | 85 | 120 | 124 | 100 | 110 | 4 | 100.2 |
90 | 90 | 127 | 131 | 105 | 115 | 4 | 105.2 |
95 | 95 | 132 | 136 | 110 | 120 | 4 | 111.6 |
100 | 100 | 137 | 140 | 115 | 125 | 4 | 114.5 |
