Waterproof and High Reliability Medium and High Temperature Solar Collector Tubes for Various Heating Systems

US $135.70-149.00 / piece
12 piece(s)Minimum order
Place of Origin:
Shandong, China
Brand Name:
DYJH
Model Number:
DYJHN95/100-40-2000
Pipe Material:
Metal
Product name:
solar collector
Function:
Sun's Energy
Privacy Policy: Samples are free within a certain price range

Contact us

Send Inquiry

Quik Detail

Place of Origin

Shandong, China

Brand Name

DYJH

Model Number

DYJHN95/100-40-2000

Pipe Material

Metal

Product name

solar collector

Function

Sun's Energy

Use

Solar Hot Water Heating System

Item

Solar Thermal Collector Made

Vacuum tube

Metal Glass Vacuum Tube

Feature

Higher Heating Efficiency

Transmittance

High transmittance

Warranty

5 Years, 5years

Package

Carton Box

Certificate

TUV,CE,UL

Product Detail

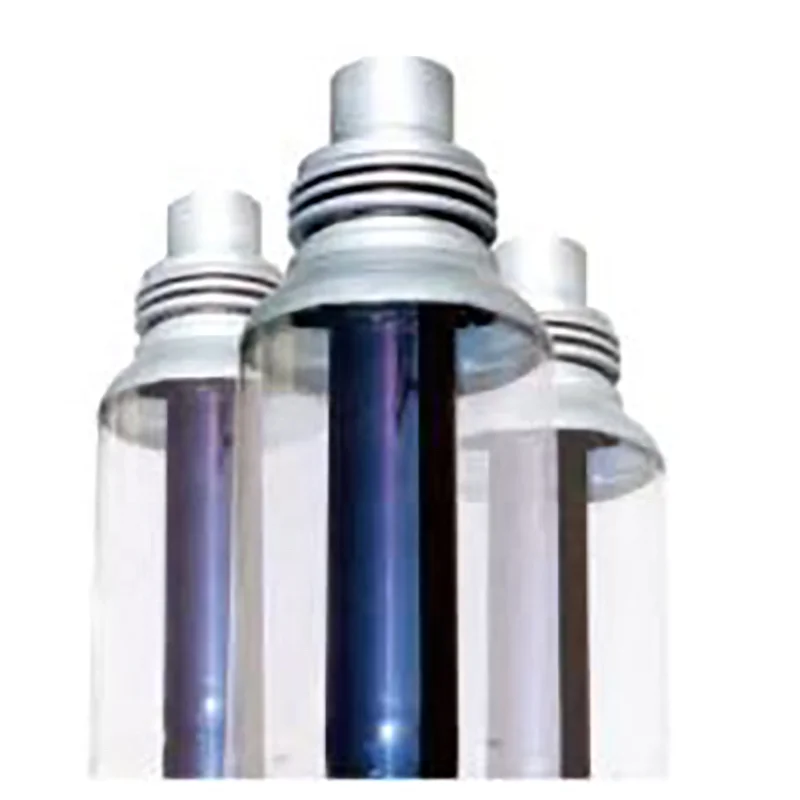

Medium and high temperature collector tubes
Used in Trough collectors and industrial steam projects

Product Description
Technical highlights:
Next-generation glass anti-reflection coating(High filtration)
reliable automatic glass-to-metal sealing technologyHigh adaptability optimized and upgraded absorption coatingZero attenuation
Improved collector tube design New bellows
Model Unit
DYJHN95/100-40-2000
glass tube outer diameter
95/100
Metal tube outer diameter
40/50
length
2000
weight
9
Absorption ratio
>94.5%
Emission ratio
<10%(360℃)
average heat loss
<60W/m
degree of vacuum
<5x10-4Pa
service life
30
Company proposal: Combine photovoltaic and photothermal photos to reflect integrated energy
Customers from Italy and India visited the CSP workshop and the CSP heating project in Yantou Village
