X5036 High Quality and High-precision Vertical Milling Machine, Automatic Milling Machine, Heavy-duty Metal Milling Machine
US $6,500.00-6,800.00 / set
1 set(s)Minimum order
table travel (x) (mm):
800
machining capacity:
Medium Duty
table travel (y) (mm):
320
table travel (z) (mm):
450
spindle taper:
ISO50
range of spindle speed(r.p.m):
60 - 1700 r.p.m
Privacy Policy:
Samples are free within a certain price range
Other recommendations for your business
Factory Direct X6432 Rotary Head 360 Degree Horizontal Milling Universal Rotary Head Milling Machine
$18,000.00-18,900.00
1 set (MOQ)
$7,500.00-10,350.00
1 set (MOQ)
$10,800.00-12,000.00
1 set (MOQ)
$1,250.00-1,500.00
1 set (MOQ) Contact us
Quik Detail
| table travel (x) (mm) | 800 |
|---|---|
| machining capacity | Medium Duty |
| table travel (y) (mm) | 320 |
| table travel (z) (mm) | 450 |
| spindle taper | ISO50 |
| range of spindle speed(r.p.m) | 60 - 1700 r.p.m |
| place of origin | Shandong, China |
| brand name | WELLDE |
| model number | X5036 |
| type | Universal |
| voltage | 380V/220V |
| dimension(l*w*h) | 12600X2200X2220MM |
| weight (kg) | 1700 |
| warranty | 1 Year |
| key selling points | Competitive Price |
| machinery test report | Provided |
| video outgoing-inspection | Provided |
| max. table load(kg) | 500 kg |
| Number of Axes | 3 |
| Condition | New |
| Core Components | Gear |
| Warranty of core components | 1 Year |
| Marketing Type | New Product |
Product Detail
Products Description
X5036 High quality and high-precision vertical milling machine, automatic milling machine, heavy-duty metal milling machine
Universal milling machine X5036
Main features:
1. Adopting a rectangular guide machine has good rigidity,
2. The workbench and guide rail are quenched by ultrasonic spark quenching.
3. Workbench X. Y. Z is gear driven automatic feed and manual operation
4. The milling head can rotate 45 degrees.
Application:
1. The vertical lifting platform milling machine is a universal metal cutting machine tool.
2. The spindle taper hole of the machine tool can be directly or through accessories installed with all cylindrical milling cutters, disc milling cutters, forming milling cutters, end milling cutters tools, suitable for machining various small parts such as flat, inclined, groove, hole and other gears. It is an ideal processing equipment for industries such as mechanical manufacturing, molds, equipment, instrumentation, automobiles, motorcycles, etc.
Specification
Specifications | Units | X5036B |
Table size | mm | 1500x360 |
Table load | kg | 300 |
T slot(number-width-pitch) | mm | 3-18*80 |
Table travel | mm | 800/320/450 |
Range of table feed | mm /min | 22-555 |
Rapid speed of table | mm /min | 810 |
Spindle taper | ISO50 7:24 | |
Spindle speed range | rpm | 60-1700(12steps) |
Swivel angle of vertical milling head | ° | ±45 |
Distance between spindle nose and table surface | mm | 60-540 |
Spindle motor power | kw | 4 |
Feed motor power | kw | 0.75 |
Weight | kg | 2700 |
Overall dimension | mm | 2600x2200x2220 |
Recommend Products

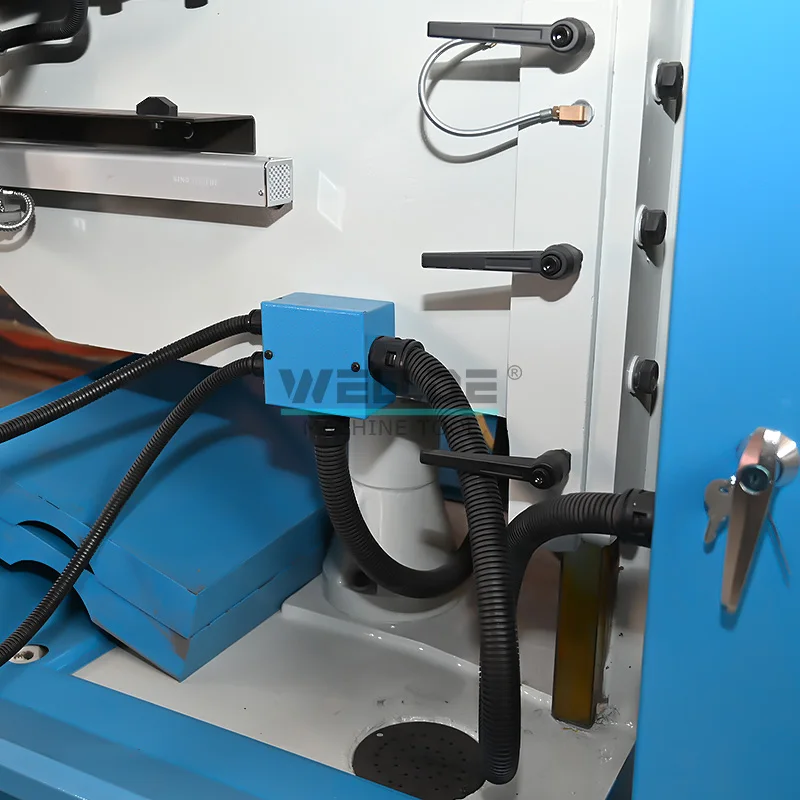

Details Images
