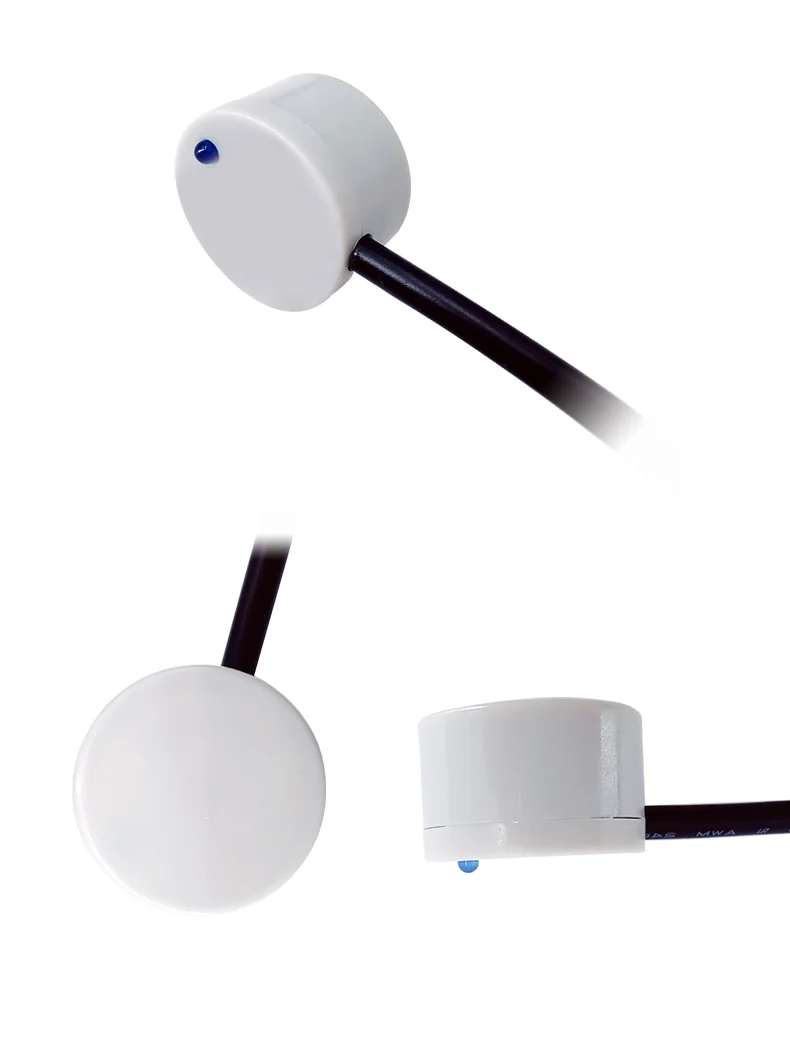

XKC-DS1603 Metal Tanks Ultrasonic Water Level Sensor Oil Level Sensors

1 piece(s)Minimum order
Series:
ultrasonic liquid level sensor
Features:
Workable for metal tanks
Mounting Type:
Non-contact/Contactless
Description:
ultrasonic liquid level sensor, Liquid Level Sensor
Model Number:
XKC-DS1603
Type:
Liquid Level Sensor
Privacy Policy: Samples are free within a certain price range

Contact us

Send Inquiry

Quik Detail

Series

ultrasonic liquid level sensor

Features

Workable for metal tanks

Mounting Type

Non-contact/Contactless

Description

ultrasonic liquid level sensor, Liquid Level Sensor

Model Number

XKC-DS1603

Type

Liquid Level Sensor

Place of Origin

Guangdong, China

Brand Name

Xingkechuang

Use

Metal tanks

Theory

ultrasonic liquid level sensor

Output

RS485,UART

operating voltage

10-36V DC

Average working current

<30 mA

Detecting level height

50-2000 mm

Output signal

RS485/UART

Application

Metal tank liquid detection

Product Detail

Product Description
Output NF,UART,RS485,AQ
Voltage DC10-36V
Type Ultrasonic

1. Product description
The ultrasonic liquid level detection sensor designed and produced by Shenzhen Xingkechuang Co., Ltd. adopts ultra-
Acoustic wave penetration technology realizes the non-contact detection of the liquid height in the container, and the liquid height
Degree value is converted into RS485 signal output.




 2. Product Features
• Non-contact level measurement, safe
••10V-36V wide working voltage
•• Full-scale real-time tracking, no need to restart when empty container is filled
••Installation and commissioning are greatly simplified
•• RS485 output
•• Sensor center frequency is 2MHz •• Operating temperature -15°C to +60°C
•• Storage temperature -25°C to +80°C
•• Measurement resolution 1mm
•• Electrostatic protection design, the connection lead is added with electrostatic protection devices, in line with IEC61000-4-2 standard

3. Scope of application
• Detection and alarm of liquid in containers made of dense materials such as steel, glass, iron, ceramics, and non-foaming plastics
•Real-time detection of liquid level boundary of pure single liquid or miscible mixed liquid without serious deposition
 123456789

Company Information




Xingkechuang Technology has been concentrating on R&D, production and sales of sensors products since 2013,as well as applications and testing of smart productsXinkechuang has successfully built an outstanding independent R&D team and has obtained a series of original patents and industry-related certifications. Our main original patented products include: non-contact liquid level sensor, intelligent non-contact liquid level controller, active infrared sensor, ultrasonic sensor, laser ranging sensor, temperature sensor, gas sensor, wireless controller multi-point liquid level controller and Infrared liquid level intelligent controller, etc. As an international and diversified sensor manufacturer and customized solutions provider, By providing superior products and professional technical solutions for customers in China and all around the world,Xinkechuang has become one of the most influential innovative technology companies in thindustry






Our Services

Manufacture & Customization Solutions:

Non-contact liquid level sensor, intelligent non-contact liquid level controller, diffuse reflection infrared sensor, ultrasonic sensor, laser ranging sensor, temperature sensor, gas sensor, wireless controller, multi-point liquid level controller.



Applications & Industries Served Scopes:

Medical equipment, home appliances, plant protection drones, sewage treatment equipment, smart cities, smart public toilets, smart advertising machines, robot obstacle avoidance, smart trash cans, disinfection machines, sweeping robots, cleaning equipment, milk equipment, chemical plants, new energy car, charging pile etc.
