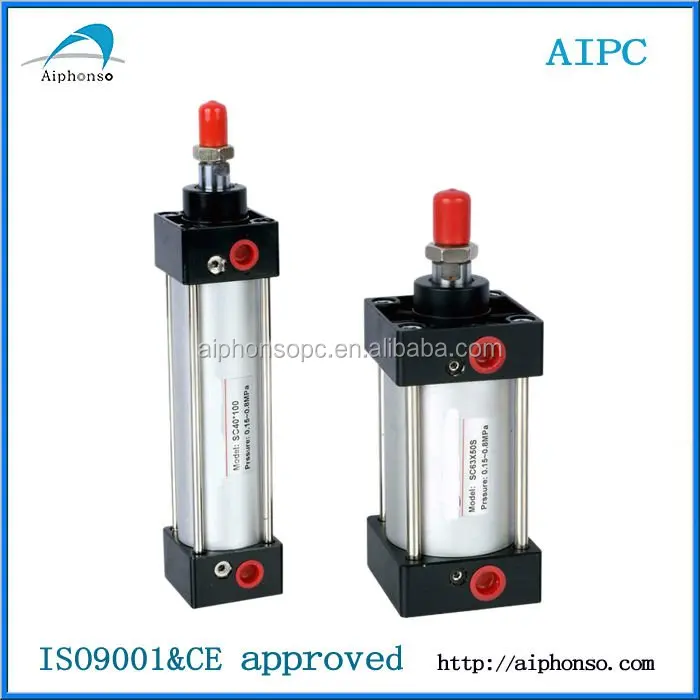

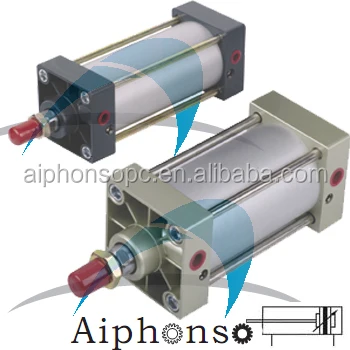

Airtac Standard SC SU SI SE SDA MAL Series Pneumatic Air Cylinder
US $10.00-30.00 / piece
1 piece(s)Minimum order
warranty:
1 Year
weight (kg):
2
video outgoing-inspection:
Provided
machinery test report:
Provided
type:
Cylinder
place of origin:
Zhejiang, China
Privacy Policy:
Samples are free within a certain price range
Other recommendations for your business
$0.50-1.50
1 piece (MOQ)
$5.00-5.50
1 piece (MOQ)
$55.55-63.49
1 piece (MOQ) Contact us
Quik Detail
| warranty | 1 Year |
|---|---|
| weight (kg) | 2 |
| video outgoing-inspection | Provided |
| machinery test report | Provided |
| type | Cylinder |
| place of origin | Zhejiang, China |
| brand name | AIPHONSO or OEM |
| Standard or Nonstandard | Standard |
| Power | Pneumatic |
| Quality control system | ISO9001:2008 |
| Operating Temperature | -5~70℃ or 180℃ (High temp seal) |
| Working Pressure | 0.1-0.9Mpa |
| Bore | 16mm,20mm,32mm,40mm,50mm,63mm,80mm,100mm,125mm,160mm,200mm,250mm |
| Max Stroke | 2500mm |
| Motion Pattern | Double Action |
| Operating Speed Range | 30~800mm/s |
Product Detail
Product Description
Specification
SC | 63 | 100 | S | LB |
Model | Bore | Stroke | Magnet Code | Blank:basic type |
SC:Standard double acting | S:With magnet | LB:front and back fixed type | ||
SCD:Double shaft double acting | Blank:Without magnet | FA:front flange type | ||
SCJ:Double axis double acting adjustable type | FB:rear flange type | |||
SU:Standard double acting(without rod) | CA:single earring | |||
CB:double earring | ||||
TC:swinging type | ||||
TC-W:swinging type attach foot seat |
Bore(mm) | 32 | 40 | 50 | 63 | 80 | 100 | 125 | 160 | 200 | ||||||||
Action type | Double Action | ||||||||||||||||
Working Medium | Air | ||||||||||||||||
Pressure Range | 1.0~9.0Kgf/cm² | ||||||||||||||||
Ensured Pressure Resistance | 13.5Kgf/cm² | ||||||||||||||||
Temperature Range | -10~70℃ | ||||||||||||||||
Speed Range | 30~800mm/s | ||||||||||||||||
Buffer Type | Adjustable Buffer | ||||||||||||||||
Buffer Stroke | 24 | 32 | |||||||||||||||
Joint Pipe Bore | PT1/8 | PT1/4 | PT3/8 | PT1/2 | PT3/4 | PT1/2 | |||||||||||
Customize service
Company Profile
Fenghua Aiphonso Industrial Autaomation CO., LTD
is a professional manufacturer of pneumatic cylinder,solenoid valves, air source treatment,fittings and so on.
which has more than 100 employees and covers an area of over 4,000 square meters.
which has more than 100 employees and covers an area of over 4,000 square meters.
Technology-oriented, quality-based and continual quality improvement make it capable of passing ISO9001 Quality System Certification,Certificate of Utility Model Patent and Certificate of Invention Patent.China Yutong Bus Qualified Supplier Certificate.
Our Products are well sold in Southeast Asia,the Middle East and many other regions.
