ALLESD SMT Cleaning Wipe Roller Wood Pulp Cleanroom Wiper SMT Stencil Roll Clean Wiper
US $1.60-2.00 / roll
50 roll(s)Minimum order
Place of Origin:
Jiangsu, China
Brand Name:
Allesd
Product name:
SMT cleaning wipe roller
Material:
55% Wood pulp + 45% Polyester
Size:
530MMx490MMx9M
Weight:
56gsm
Privacy Policy:
Samples are free within a certain price range
Other recommendations for your business
Contact us
Quik Detail
Place of Origin | Jiangsu, China |
---|---|
Brand Name | Allesd |
Product name | SMT cleaning wipe roller |
Material | 55% Wood pulp + 45% Polyester |
Size | 530MMx490MMx9M |
Weight | 56gsm |
Application | Specifically designed for different SMT screen printers |
Package | 1roll/pack |
MOQ | 100rolls |
Color | White |
Core Diameter | 19mm/38mm |
Core Width | 530mm/480mm/400mm/350mm |
Product Detail
Products Description
SMT Stencil Wiper Rolls are used to remove residual solder paste from the bottom side of PC Board stencils. | ||
The basic weight of wiper could be: 50gsm, 56gsm, 60gsm, 68gsm etc for choosing. Core materials: Card Paper Core/ Plastic core for options. | ||
We manufacture stencil rolls in a wide range of sizes to fit popular printer models including; DEK machines, MPM machines, EKRA ,machines, Panasonic machines, Yamaha machines and so on. | ||
Material: | 55% Wood Pulp and 45% Polyester | |
Note: It is made by the 55% wood pulp and 45% polyester, or 100% polypropylene, or viscose & polyester. 3 kinds of wiper material for options. | ||
Color: | white | |
Size: | 530MMx490MMx9M (Any customized sizes can be suppport) | |
Weight: | 56G/m2 | |
Feature: | 1. Specifically designed for SMT screen printers 2. Solvent resistant, highly water and oil absorbent, and efficient removal of stains, degreasing 3. High strength, tough and durable, even when wet 4. Soft and make no any scratches and damage the surface of the object. 5. Exceptionally low lint levels, and without any chemical adhesive |
Machine | Specification | Core | |
MINAMI | 8mm*270mm*6m | Plastic Core: 290mm | |
EKRA | 13.5mm*300mm*7m | Paper Core:400mm | |
13.5mm*400mm*7m | Paper Core:400mm | ||
MPM | 19.5mm*250mm*10m | Paper Core:455mm | |
19.5mm*300mm*10m | Paper Core:455mm | ||
19.5mm*450mm*10m | Paper Core:455mm | ||
Samsung | 20mm*400mm*10m | Plastic Core:460mm | |
Plastic Core:350mm | |||
Suneast | 20mm*400mm*10m | Plastic Core:400mm | |
SONY | 20mm*260mm*20m | Plastic Core:280mm | |
DEK | 20mm*400mm*9m | Plastic Core:530mm | |
20mm*490mm*9m | Plastic Core:530mm | ||
YAMAHA | 25.5mm*350mm*15m | Paper Core:360mm | |
25.5mm*420mm*30m | Paper Core:420mm | ||
Panasonic/KME | 38mm*350mm*15m | Paper Core:355mm | |
38mm*480mm*15m | Paper Core:480mm | ||
Ion | Average Value | Equipment Limit Test Value | Test Mehod |
Chloride(Cl- ) | 0.13 | 0.0010 µg/cm2 | test by ion chromatography(IC) |
Sulfate(SO4 2-) | 0.215 | 0.0010 µg/cm2 | test by ion chromatography(IC) |
Sodium(Na+ ) | 0.554 | 0.0010 µg/cm2 | test by ion chromatography(IC) |
Ammonium(NH4+) | 0.0734 | 0.0010 µg/cm2 | test by ion chromatography(IC) |
Silicone/DOP | N.D. | 0.0010 µg/cm2 | test by ion chromatography(IC) |
Recommend Products
Company Information

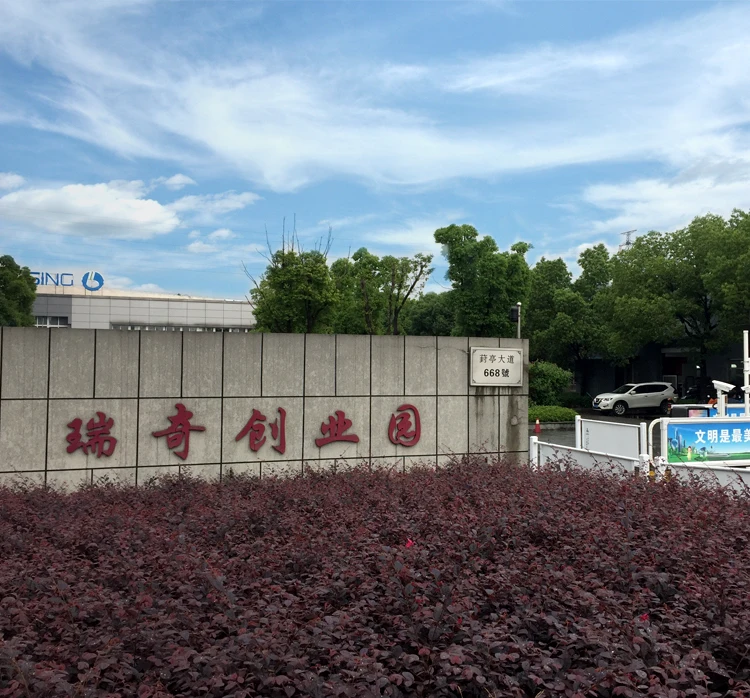

Established in 2011,Suzhou Quanjuda Purification Tech Co,.Itd is located in SIP Suzhou,one of the most dynamic cities in eastern coast of China,set up offices in the number 668,Fengting Avenue.
Has rich import and export experience and good reputation.Established an effective management system,engaged many years of trade staff,and established business relations with more than 60 countries and regions around the world.


Why Choose Us


Packaging & Shipping



FAQ
● Q1: Are you a manufacturer?
①.Ans:Yes, we have been in manufacturing and providing excellent Cleanroom and ESD solutions for customers more than 10years.
②.Our own production plants and a wide network of suppliers who are strictly selected, are totally qualified for ISO Quality Management System.
● Q2: How long could you prepare samples?
Ans:Normally 1days if we have the sample onhand. If customized one, about a week around.
● Q3: How about batch order production?
Ans: Normally 3-7days or so
● Q4: Do you inspect the finished products?
Ans:Yes, we will do inspection according to ISO standard and ruled by our QC staff.
● Q5: How do you ship the goods?
Ans: By sea, by air, by truck or by courier (UPS, DHL, Fedex, TNT etc.)
● Q6: What advantage do you have?
Ans:
①.We have professional engineers, customers can expect the best possible advice and support.
②.Related responsible team to answer all your questions and follow-up process for you and do update in time
③.Strict and standard process control according to Quality Management System.
④.Documents support on products, we have strong technical data sheet to support our products, which could make you easier to know our products.
