Ammonia Storage tank Liquid Ammonia Storage tank Transport Gas tank

US $35,000.00-45,000.00 / unit
1 unit(s)Minimum order
Max Working Pressure(mpa):
2.11 MPa
video outgoing-inspection:
Provided
machinery test report:
Provided
core components:
PLC
capacity:
5-100M3 Cryogenic Tank
place of origin:
Shanghai, China
Privacy Policy: Samples are free within a certain price range

Contact us

Send Inquiry

Quik Detail

Max Working Pressure(mpa)

2.11 MPa

video outgoing-inspection

Provided

machinery test report

Provided

core components

PLC

capacity

5-100M3 Cryogenic Tank

place of origin

Shanghai, China

brand name

SEFIC

dimension(l*w*h)

Dia 2216*4405-3520*17585

warranty

1 Year

key selling points

Long Service Life

After-sales Service Provided

Overseas third-party support available

Usage

LOX/LIN/LAr transport gas tank

Material

Steel transport gas tank

Full-load weight(kg)

9830- 181550kg transport gas tank

Working pressure

0.8-1.75Mpa transport gas tank

Test pressure

1.84Mpa transport gas tank

Design Temperature

-196/ +50degree transport gas tank

Process Fluid

LOX/LIN/LAR / Expand Perlite transport gas tank

Test

NDE/Pt/LT/CTTP/ transport gas tank

Working Years Design:

20years transport gas tank

Condition

New

Applicable Industries

Manufacturing Plant

Warranty of core components

1 Year

Showroom Location

None

Marketing Type

Hot Product 2021

Weight

40550

Product Detail



Product Description

Introduction: GAS TANK

The word cryogenics stems from Greek and means "the production of freezing cold"; however, the term is used today as a synonym for the low-temperature state. It is not well-defined at what point on the temperature scale refrigeration ends and cryogenics begins, but most scientists assume it starts at or below -150 °C or 123 K (about -240 °F). The National Institute of Standards and Technology at Boulder, Colorado has chosen to consider the field of cryogenics as that involving temperatures below −180 °C (-292 °F or 93.15 K). This is a logical dividing line, since the normal boiling points of the so-called permanent gases (such as helium, hydrogen, neon, nitrogen, oxygen, and normal air) lie below −180 °C while the Freon refrigerants, hydrogen sulfide, and other common refrigerants have boiling points above −180 °C.

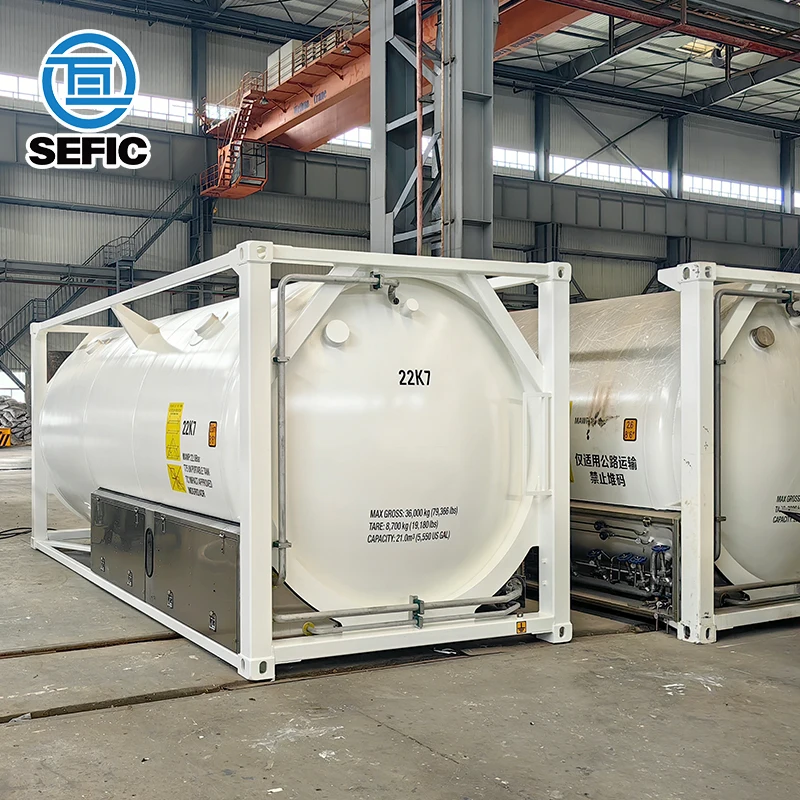

Transport gas tank

1. Medium: LOX LIN LAr
2. Capacity:5-100m3
3. Pressure:0.8-1.75 MPA
4. Certification:GB/ASME

LOX,LIN,LAr transport gas tank Specification:
Model Water capacity Working
pressure(MPA)
Extemal
dimension(mm)
Net
weight(kg)
Full-load weight(kg)
LOX LIN LAr
CFLY05/1.0 5m3 1 2216*4405 4130 9830 8180 11130
CFL-Y05/1.75 5m3 1.75 2216*4405 4400 10100 8450 11400
CFL-Y10/1.0 10m3 1 2216*7098 6250 17920 14620 20520
CFL-Y10/1.75 10m3 1.75 2216*7098 6861 18261 14961 20861
CFL-Y15/0.8 15m3 0.8 2616*6520 7380 24480 22530 28380
CFL-Y15/1.75 15m3 1.75 2616*6520 8501 25601 20651 29501
CFL-Y20/0.8 20m3 0.8 2616*8030 8925 31725 25125 36925
CFL-Y20/1.75 20m3 1.75 2616*8030 10378 33178 26578 38378
CFL-Y30/0.8 30m3 0.8 2616*11070 12166 46366 36466 54166
CFL-Y30/1.75 30m3 1.75 2616*11070 14300 48500 38600 56300
CFL-Y50/0.8 50m3 0.8 3020*12685 19494 76494 59994 89494
CFL-Y50/1.75 50m3 1.75 3020*12685 23050 80050 63550 93050
CFL-Y100/0.8 100m3 0.8 3520*17585 33800 147800 114800 174800
CFL-Y100/1.6 100m3 1.6 3520*17585 40550 154550 121550 181550

 T75-20FT-2_06.jpgT75-20FT-2_02.jpgT75-20FT-2_04.jpgT75-20FT-2_03.jpgT75-20FT-2_05.jpg

Company Information

1 (21)




Located in Shanghai, SEFIC is a professional supplier of gas and gas equipment. Founded in the 90s, the company has already accumulated enough experience and became one of the best suppliers of all kinds of gas and gas equipment. Besides, it is one of the earliest in the country to gain the License of Pressure Vessel Type A2 and C2, ISO9001 and ISO14000 Certification, Private Hi-Tech Enterprise, Hi-Tech Enterprise, and Special Equipment Manufacture Permission. We almost can supply all kinds of gas cylinders with TUV, TPED, CE and DOT certification.Located  s, vaporizeia, Africa countries, such as Angola and South Africa.
.jpg

Quality and Safety:

We have implemented a strict and complete quality control system, which ensures that each product can meet the quality requirement of customers. In addition, all of our products have been strictly inspected before shipment. Our products have attained the ISO/DOT Standard,CE/TUV/TPED certified.



HIGH QUALITY
SEFIC has implemented a strict and complete quality control system, which ensures that each gas cylinder can meet quality requirements of customers, and all cylinders have been strictly inspected before shipment.

LOWER PRICE
SEFIC always supply the lower price! We never stop trying to find new ways to reduce the gas cylinder cost, so that we can offer our customers a competitive price. Cooperate with SEFIC, Choose a Trustworthy Partner!
QUICK DELIVERY TIME
We are committed to work hard to ensure that every shipment of the gas cylinders are safe, punctual arrival, we have a lot of partners which always provide the most rapid means of transportation.
GOOD SERVICE
SEFIC has different series and models, for different standards in different countries, and we are committed to providing the best service. Cooperate with SEFIC, Choose a Trustworthy Partner!
ORIGINAL Manufacturer
Cooperation with SEFIC to achieve the sales relationship from the manufactory to the customer, can improve the production and delivery efficiency of the gas cylinder.
LARGE OUTPUT
SEFIC has professional equipments for gas cylinders. We have the capability to produce more than 50, 000pcs of Gas Cylinders per month.
EXPORTING Experience
SEFUC has implemented a strict and complete quality control system, which ensures that each gas cylinder can meet quality requirements of customers, and all cylinders have been strictly inspected before shipment.
OEM ACCEPTED
We accept OEM work, SEFIC can manufacture gas cylinder handle, gas cylinder cap, gas cylinder valve, gas cylinder Mark and gas cylinder color as your required.
.jpg
Our Services

Our Services

We are not only cylinder supplier, but also the first rate service provider. We are prepared for your demand and question at any time. Please feel free to send us message if you have any interest or question about our products.



Tank FAQ

Quality

Q:How do you ensure the quality of product?
A: Our Factory is standard production work ship, got ISO CCC BV Certification, our workers are well trained. Our product under goes a scrutinizing inspection process. We also Accept Third Party Inspection and Testing.



Delivery

Q: What is the delivery time of this Liquid Storage Tank in sefic?
A: The delivery time of gas storage tank is usually within 90 days once the deposit received and product drawing confirmed. If the size is too big, usually by bulk ship, and it may need more time, Transport ways are based on reducing cost for you and keep the tank performance!



Packaging

Q: Do you have any protection?
A: By PVC, Nude or based on your requirement.



Drawings

Q: Can you provide Drawings for confirmation?
A: Yes, in sefic, we will provide drawing after order confirmed before production.



Standard

Q: What standard? Can you manufacture your products under ASME standard?
A: Our products are designed, manufactured and tested as per reference standards of GB150, safety technology supervision regulations of pressure vessels and some other reference Chinese standards. Our company has obtained the A2 and C2,C3 Pressure Vessel Fabrication Certificates, Grade GC1 Pressure Pipe & Vessel Construction Certificates, ISO9001 Quality Certificate, ASME Certificate. If you ask for ASME stamp, we are able to manufacture your products under ASME standard.



OEM

Q: Do you provide OEM Service?
A: Yes, we have a first-class team and could design as per your requirement. We can also print color and your company LOGO according to your requirements.



Service

Q: How about the after-sale service?
A: We can provide you the technical support to guide you repair your product. And we will also send original spare parts by air. If you have special need, we can let our engineer to help you in person.



Warranty

Q: What’s the warranty for the storage tanks?
A: Our warranty is one year after shipment. Within one year, we will send broken spare parts at our expense upon request if it is proved to be our production defect. In fact, we rarely receive any spare parts request. If the tanks are maintained properly, they can be used for 15-20 years.
