API 6FA API Forged Steel DBB Stainless Steel Ball Valve
Other recommendations for your business
Contact us
Quik Detail
| application | General |
|---|---|
| Port Size | 30" |
| place of origin | Shanghai, China |
| model number | Q347F-300Lb-30" |
| material | Stainless Steel A182 Gr. F316 |
| power | Pneumatic |
| temperature of media | -196℃-650℃ |
| brand name | CHAODA |
| pressure | 300LB |
| structure | BALL |
| media | oil&gas&acid medium |
| Product name | API 6FA API forged steel DBB stainless steel ball valve |
| Design | ASME B16.34/API 6D DBB Valve |
| Face to Face | ASME B16.10/API 6D ss ball valve |
| End to End | ASME B16.10/API 6D ball valve prices |
| End Flange | ASME B16.5 high pressure ball valve |
| BW End | ASME B16.25 gas ball valve |
| Test | API 6D pneumatic ball valve |
| Fire Safe Test | API 607/API 6FA ball valve cf8m 1000wog |
| MOQ | 1 Piece |
| Body material | cf8m stainless steel flanged ball valve picture |
Product Detail

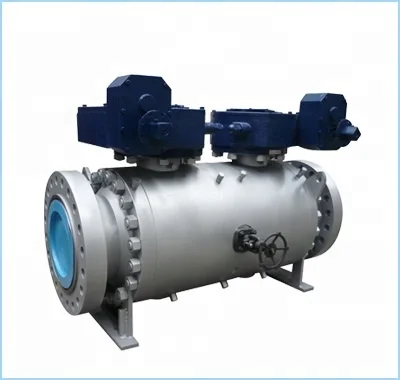

API 6FA API forged steel DBB ss ball valve
Features
Size: 2"~48"
Class: 150~2500
Three Pieces Forged Steel Body
Trunnion Mounted Ball, Full & Reduced Bore
Anti-Static Device
Blow-out Proof Stem
Double Block and Bleed
Fire Safe Design
Emergency Sealant Injector ( 6" & Larger)
Vent Valve ( 6" & Larger)
Lifting Lugs & Supporting Feet ( 8" & Larger)
Seat Pocket Overlay ( On Request)
Seals Area Overlay ( On Request)
Specifications
Design ASME B16.34/API 6D
Face to Face ASME B16.10/API 6D
End to End ASME B16.10/API 6D
End Flange ASME B16.5
BW End ASME B16.25
Test API 6D
Fire Safe Test API 607/API 6FA
Special NACE MR-01-75
High quality
Passed the ISO9001:2008 quality system
Machining Workshop
Passed the ISO9001:2008 quality system
Penetrant Test
Penetrant Test working as the basic inpsection process done according to
Factory
Workshop
Our Workshop
Warehouse
Our Warehouse
Team
Our Team
Packing Details :Standard Seaworthy packing to be applied.
Delivery Details : EX-works 45 calendar days after we received your confirmed order, if 3rd party inspection required, delivery should be extended accordingly.
Certifications
KS launched its quality management and safety system as ISO 9001, ISO14001, OHSAS18001 and awarded API 6D, API 600, API 607, API 6FA, CE/PED approvals for the product.
Main Achievement
Project: Petroleum Transportation Pipeline
Client: Sinopec
Year: 2008
Location: Beijing, China
Product: Fully welded ball valve (bury type), Gate, check, globe valves
Materials: WCB,CF8M,A105
Size: NPS1/2~NPS24
Rating: ANSI150lb ~600lb
Qty: 1356 pcs
Pakistan Customers
Project: TENDER ENQUIRY NO. PROC/FC/CB/PROJ/KPD-1522/2015
Client: OIL & GAS DEVELOPMENT COMPANY LTD.
Year: 2015
Location: Pakistan
Product: Gate, Check, Globe , Ball valves
Materials: WCB,CF8M, CF3M, F304, A105
Size: NPS1/2~NPS10
Rating: ANSI150lb ~800lb
Qty: 1560 pcs
Iraq Customer
Project: Gas Capturing Project
Client: Shell Gas Iraq
Year: 2013
Location: Iraq
Product: Ball, Gate, Globe , Check Valves
Materials: WCB, F316L, CF8M
Size: NPS1/2~NPS14
Rating: ANSI150lb ~600lb
Qty: 325 pcs
Q: Are you trading company or manufacturer ?
A: We are factory with excellent trading skills
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or EX-works 46-60 calendar days after we received your confirmed order, if 3rd party inspection required, delivery should be extended accordingly.
Q: Do you provide samples ? is it free or extra ?
A: No, the prodcut what we offer is standard,so it does not need the sample.However,we can offer some spare parts for free
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
