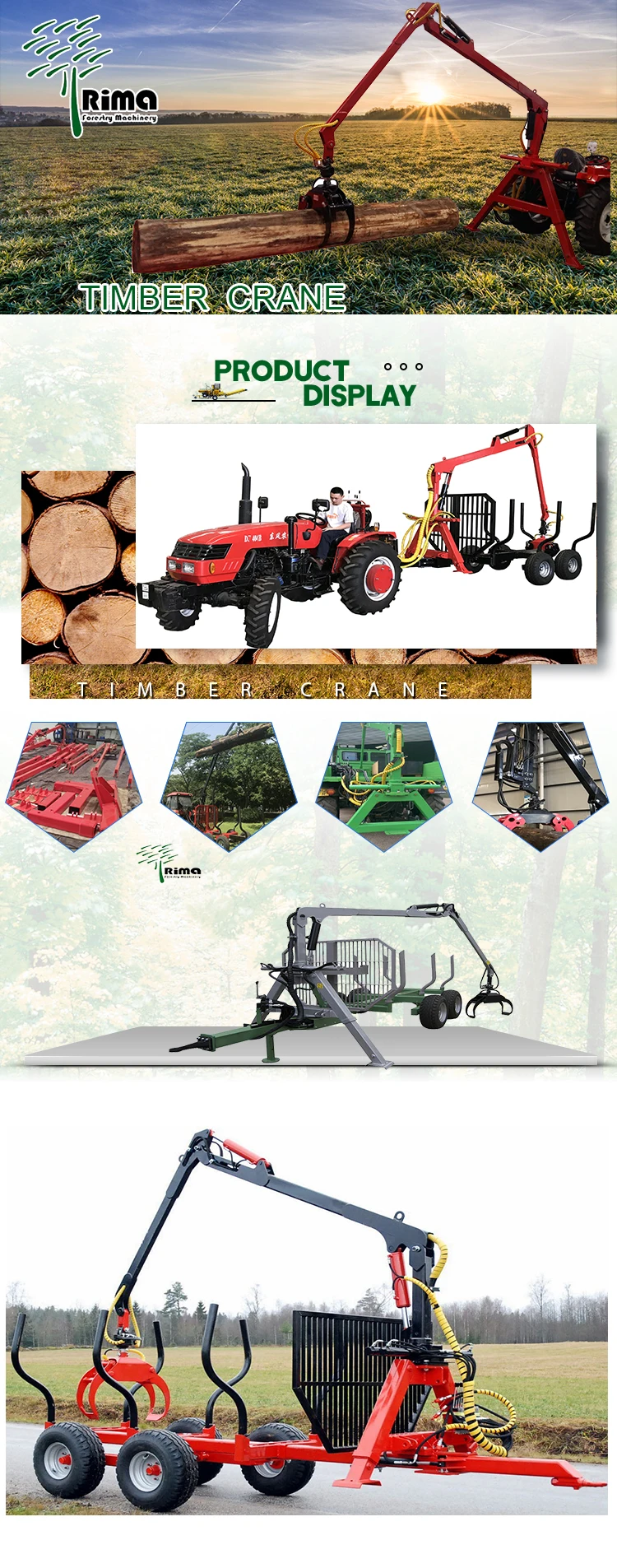

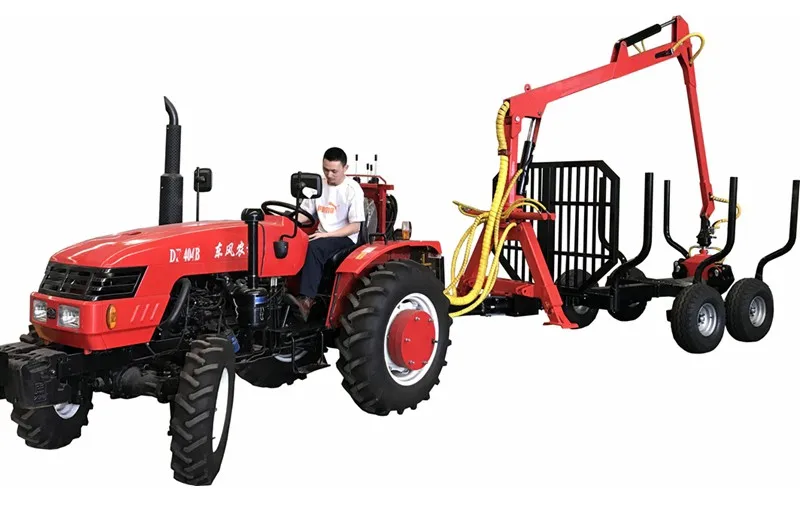

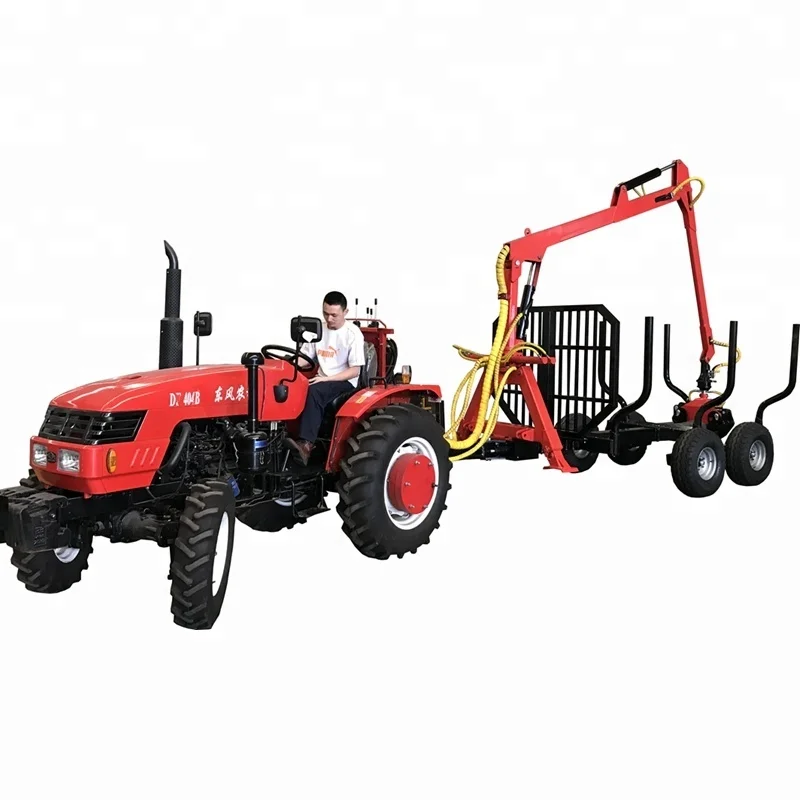

Atv Grapple Crane / Log Loading Trailer with Crane / Log Grapple Loader
US $3,500.00-4,000.00 / piece
1 piece(s)Minimum order
type:
Agro-Forestry Monitoring System
use:
Load
power type:
atv
place of origin:
Shandong, China
brand name:
RIMA
dimension(l*w*h):
1800*800*1150MM
Privacy Policy:
Samples are free within a certain price range
Other recommendations for your business
$4,000.00-4,200.00
1 piece (MOQ)
$3,100.00-3,300.00
1 piece (MOQ)
$2,500.00-3,000.00
1 piece (MOQ)
$3,000.00-6,500.00
8 pieces (MOQ)
$400.00-500.00
1 piece (MOQ) Contact us
Quik Detail
| type | Agro-Forestry Monitoring System |
|---|---|
| use | Load |
| power type | atv |
| place of origin | Shandong, China |
| brand name | RIMA |
| dimension(l*w*h) | 1800*800*1150MM |
| weight | 760kg |
| warranty | 1 Year |
| After-sales Service Provided | No overseas service provided |
| Color | Customized |
| Name | timber trailer with crane |
| Power Type | tractor |
| Standard wheels | 10/75-15.3 |
| Total length | 5333mm |
| Usage | load wood |
| Max Outreach | 4.7m |
| Lifting capacity at 4 m | 400kg |
| Slewing torque | 7 KNm |
| Grapple | 0.18 m2 |
| Certification | EPA |
| Condition | New |
Product Detail
Model | TT06 |
Load capacity up to 40 km/h | 6000kg |
Length of loading area | 3900mm |
Total length | 5333mm |
Total width with standard wheels | 1980mm |
Standard wheels | 10/75-15.3 |
Hight of the blosters “S” | 1.2m |
Hight between the trailer and the ground | 600mm |
Number of the bloster “S” | 3 sets |
Height of the front gate | 700mm |
Centre distance between the tyres | 970mm |
Cargo Width at the top wagon | 1700mm |
Cargo Width at the bottom trailer | 1.1 m |
Net weight | 950kg |
Packaging & Shipping
Company Information
FAQ
Why choose Rima?
Rima is one of the leading manufacturers in the production of agricultural equipments and forest machines, such as flail mower, firewood processor,log splitter, wood chipper, mini excavator, grapple etc. for compact utility tractors. Established in 2009, it has built a strong cooperation with worldwide customers by quick growing. Thanks to its flexibility and attention to the customers’ requests, the company has developed a wide range of products for gardening, farming and forest, even with possibility of adapting them to the needs of the final users.
