Automatic Simple Metal Sheet Cut to Length Machine
Other recommendations for your business
Contact us
Quik Detail
| cutting width (mm) | 100 - 10000 mm |
|---|---|
| material thickness(mm) | 0.3 - 3 mm |
| cutting speed(m/min) | 10 - 25 m/min |
| video outgoing-inspection | Provided |
| machinery test report | Provided |
| core components | PLC, Engine, Bearing, Gearbox |
| coil weight (t) | 0-5t |
| leveling precision(±mm/m) | 1 ±mm/m |
| place of origin | Hebei, China |
| brand name | Zhongtuo |
| voltage | customized |
| rated power | 5.5kw |
| dimension(l*w*h) | 3000x1500x1800mm |
| key selling points | Easy to Operate |
| warranty | 2 years |
| Decoiler | 5t automatic decoiler |
| Shaft diameter | 110mm |
| Machine frame | 350H steel |
| Drive motor power | 5.5kw |
| Processing speed | 0-25m per minute |
| Transmission way | Gear |
| Material thickness | 0-3mm |
| Cut power | hydraulic power |
| Certification | CE ISO |
| Marketing Type | New Product 2020 |
| Warranty of core components | 2 years |
| Condition | New |
| Applicable Industries | Construction works , Building Material Shops |
| Showroom Location | Egypt, Canada, Turkey, Russia, Morocco, Chile, UAE |
| Weight | 1.5 |
| Year | 2022 |
Product Detail

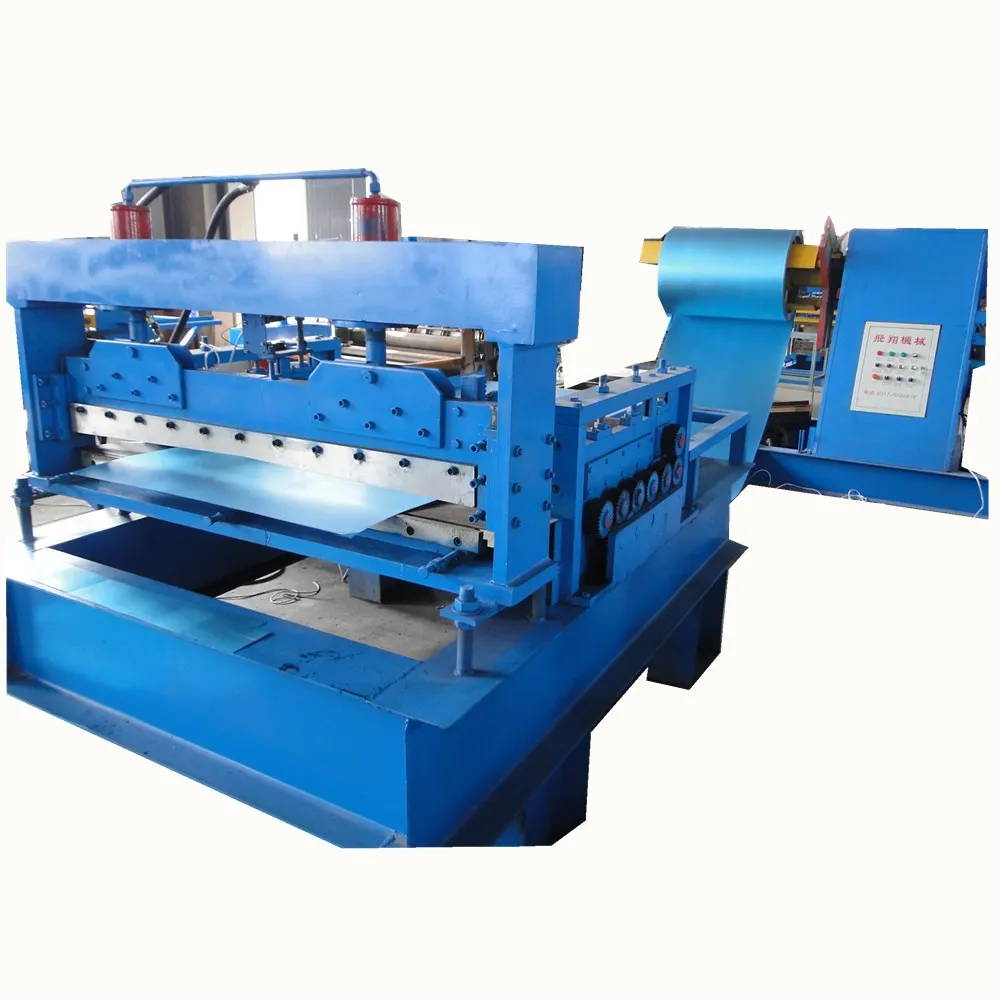

Automatic simple metal sheet cut to length machine
Working flow:
Automatic hydraulic decoiler--guiding rollers--leveling rolllers--hydraulic post cutting device
Brife introduction and machine components:
Automatic cut to length machine is a unit which can cut the metal sheet to length. The machine main components include automatic decoiler (contains automatic loading system), feeding rollers, leveling rollers, post cutting device, hydraulic station and control computer. The whole machine are controlled by the industrial PLC, which can gurantee the machine work automatically and precison of the final products. There is one set Omron brand encoder on the machine, it used for the measuring of the sheet length, when the length reached the length you set and then the encoder will send signal to the computer, and then computer will send signal to the cutter, and then cutter will cut automatic. This can gurantee the cutter cut the sheet at the right positation.
Automatic hydraulic decoiler:
Hydraulic system is used to be the power of open and closure of segments. The speed sensor of the decoiler enables the decoiler to automatically adjust the speed to match up the roll forming machine.
| Carrying capacity | 5 t |
| Max coil width | 1200mm |
| Coil inner diameter | 450-550mm |
| Hydraulic motor power | 3kw |
| Transmission motor power | 3kw |
This decoiler contains an automatic carry car.
https://www.youtube.com/watch?v=l1Aq7aJTlDg
Main parameters of the cut to length machine:
This machine can cut the sheet to any length as customer requirement, customer just need to set the sheet length and quantity parameters on the touch panel and then the machine can cut automatically.
| Processing material | PI/PPGI |
| Material thickness | 0.5-3.0mm |
| Material width | 0-1500mm |
| Shaft diameter | 110mm |
| Machine frame | 350H steel welding |
| Material of rollers | Inside 45# steel outside Rubber |
| Drive motor power | 5.5kw |
| Processing speed | 0-25m per minute |
| Leveling rollers | up layer 5 rollers down layer 6 rollers |
| Transmission way | chain with gear |
| Voltage | as customer reuqirement |
| Material thickness | 0.5-3.0mm |
| Cut power | hydraulic power |
| Cutting blade material | GCr12mov |
machine video and picture for you reference:

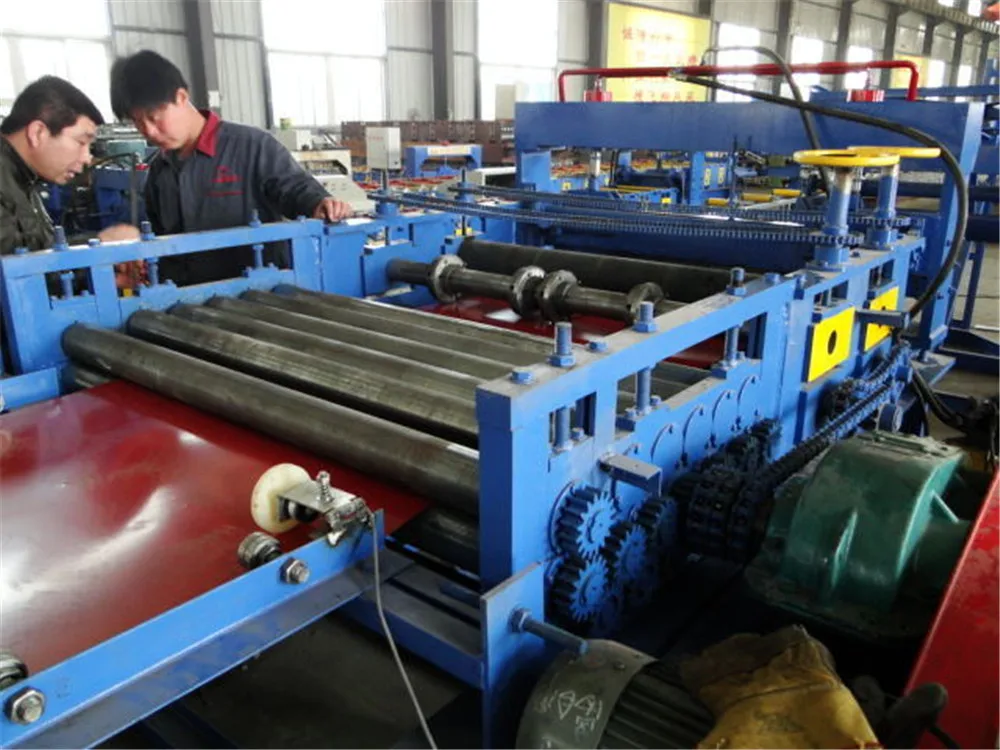

Feeding device(with handwheels adjust feeding thickness) electric adjustable

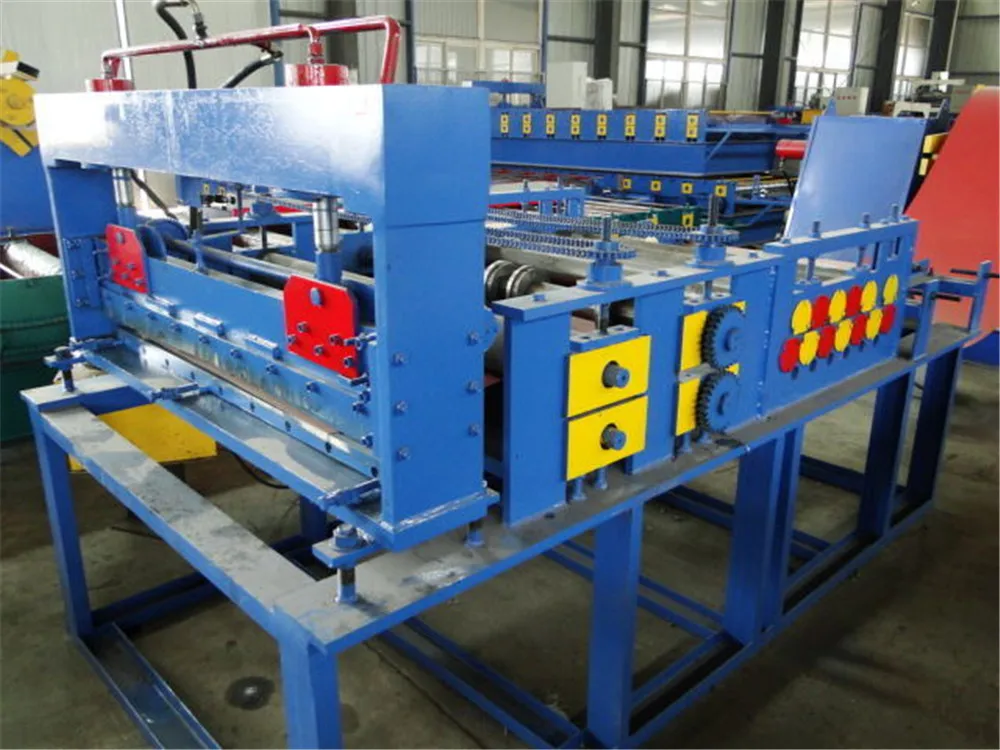

slit cutters hydraulic cutting for shearing
