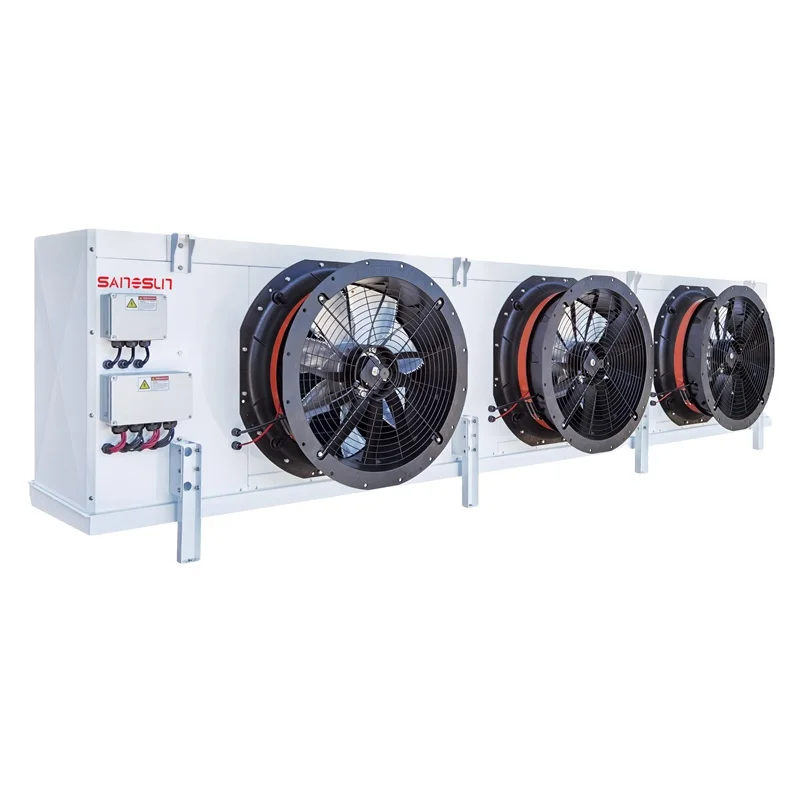

Best Selling Evaporative Air Cooled Unit Cooler for Cold Room or Freezer Cold Storage
US $413.00-435.00 / set
1 set(s)Minimum order
type:
AIR COOLER
place of origin:
Shandong, China
brand name:
FS
operating voltage:
220/380V
Mounting Type:
Ceiling Mount
warranty:
1 Year
Privacy Policy:
Samples are free within a certain price range
Other recommendations for your business
Contact us
Quik Detail
type | AIR COOLER |
---|---|
place of origin | Shandong, China |
brand name | FS |
operating voltage | 220/380V |
Mounting Type | Ceiling Mount |
warranty | 1 Year |
dimension(l*w*h) | 1944*519*547 |
key selling points | High Productivity |
airflow | 3147/3066 |
machinery test report | Provided |
video outgoing-inspection | Provided |
core components | motor, Other, PLC |
weight (kg) | 125 KG |
Shell material | Sprayed steel |
Refrigerating fluid | R22/R404A/R507A/R134A |
Applicable Voltage | 220V/380V-50HZ(customisable) |
Use of machinery | Cold/Freezer room |
Frost melting method: | electric frost |
Cooling capacity(kw) | -34°C, Cooling capacity 5.79kw |
Number of fans | 3 |
Fan diameter (mm) | 350 |
Equipment type | evaporator |
Operation mode | Automatic operation |
Applicable Industries | Other |
Condition | New |
Warranty of core components | 1 Year |
Product Detail


Applicable working temp | 10℃ | 0℃ | -18℃ | -25℃ | -34℃ |
Evaporation temp | 0℃ | -8℃ | -25℃ | -31℃ | -40℃ |
Temperature difference | 10K | 8K | 7K | 6K | 6K |
Superheat | 6.5K | 5.2K | 4.6K | 3.9K | 3.9K |
Condition code | SC1 | SC2 | SC3 | SC4 | SC5 |
Refrigerating capacity | range | Individual fan power | Air volume | |
SC1 | 3.21~120kw | 5~10M | 0.13~2.62KW | 5000~22000M³/H |
SC2 | 2.56~85KW | 5~10M | 0.13~2.62KW | 5000~22000M³/H |
SC3 | 2.24~62KW | 5~10M | 0.13~2.62KW | 5000~22000M³/H |
SC4 | 1.95~54KW | 5~10M | 0.13~2.62KW | 5000~22000M³/H |
SC5 | 1.24~45KW | 5~10M | 0.13~2.62KW | 5000~22000M³/H |
