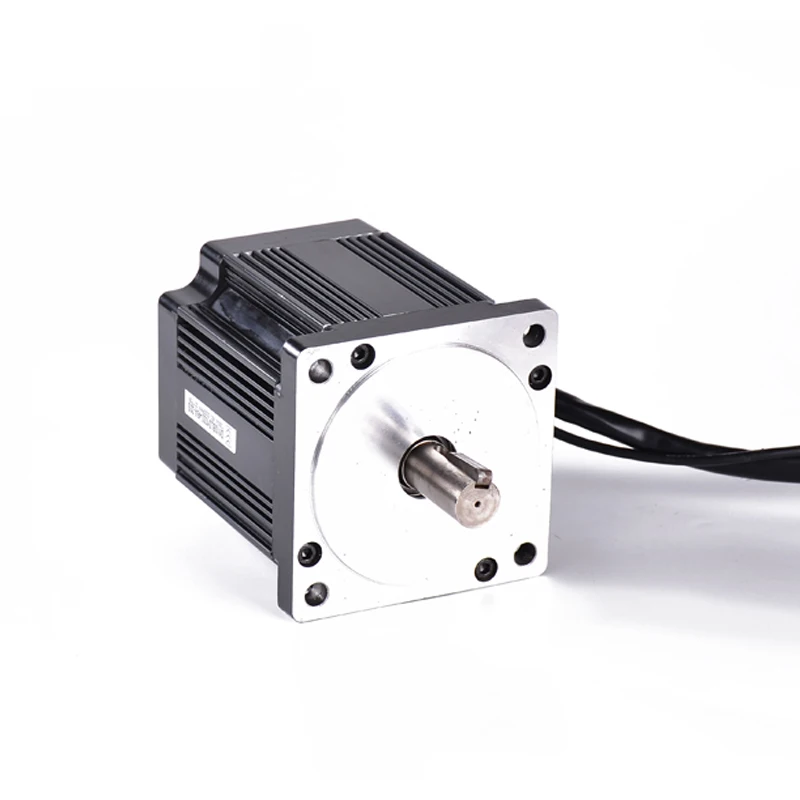

BeUDMKE 110MM 600W 1Kw 1.5 Kw 2Kw 1.2Kw Bldc Moteur Electrique 24 36 48 310 V Permanent Magnet Electric Brushless Dc Motor
US $99.80-124.00 / set
1 set(s)Minimum order
Warranty:
1 year
Place of Origin:
Guangdong, China
Brand Name:
BeUDMKE
Model Number:
110mm Brushless DC Motor
Use:
FAN, AGV/Industrial Robot/Forklift/Automatic machine/Smart Appliances/Packing Machinery
Type:
Brushless motor
Privacy Policy:
Samples are free within a certain price range
Other recommendations for your business
$101.00-133.33
2 sets (MOQ)
$1,200.00-1,350.00
1 set (MOQ)
$370.00-450.00
2 sets (MOQ)
BeUDMKE Custom 48v 72v 5kw-15kw Pmsm Motor High Precision Control Easy Maintenance Servo Robot Motor
$383.00-420.00
2 sets (MOQ)
Contact us
Quik Detail
| Warranty | 1 year |
|---|---|
| Place of Origin | Guangdong, China |
| Brand Name | BeUDMKE |
| Model Number | 110mm Brushless DC Motor |
| Use | FAN, AGV/Industrial Robot/Forklift/Automatic machine/Smart Appliances/Packing Machinery |
| Type | Brushless motor |
| Torque | 1.91N.m-6.37N.M/custom |
| Construction | Permanent Magnet |
| Commutation | Brushless |
| Protect Feature | Totally Enclosed |
| Speed(RPM) | 3000RPM |
| Continuous Current(A) | 2.42A-52.08A |
| Efficiency | IE 2 |
| Motor type | 110mm BLDC Brushless Motor |
| Direction of Rotation | CW/CCW |
| Voltage(V) | 24A, 36A, 48V, 310V |
| Power | 600w, 1000w, 1500w, 2000w, custom |
| No load speed | 3300rpm/min |
| Length | 93-183cm |
| Peak torque | 5.73N.m-19.1N.M |
| sample delivery date | 2-15 days |
| Bulk delivery time | 15-20 days |
| MOQ | 1 pcs |
Product Detail
Specification
Products Description
Feature:
A. High power range from 20W to 15KW
B. Rich stock and fast shipping time in 10 working days
C. Easy for speed & direction adjustment
D. 42mm to 180mm size range with low noisy
E. Strong stability for driver/controller
F. Lifetime above continuous 10000 hours
G. IP65 protection rank is available for us
H. Above 90% enery efficiency motor is available
I. 3D file is available if customers needed
J. Permanent magnet brushless dc motor
K.High-performance and stable matching driver and controller
A. High power range from 20W to 15KW
B. Rich stock and fast shipping time in 10 working days
C. Easy for speed & direction adjustment
D. 42mm to 180mm size range with low noisy
E. Strong stability for driver/controller
F. Lifetime above continuous 10000 hours
G. IP65 protection rank is available for us
H. Above 90% enery efficiency motor is available
I. 3D file is available if customers needed
J. Permanent magnet brushless dc motor
K.High-performance and stable matching driver and controller
110mm BLDC Motor Size Dimensions
Kindly remind: As different customers may need different motor parameter for fitting your equipment. If below motor can't fit your need, please kindly send inquiry to us with information for rated power or torque,rated speed, and rated voltage for our new size drawing making for you. Thanks a lot!
Dimensions (Unit: mm )
Mounting screws are included with gear head.
Dimensions (Unit: mm )
Mounting screws are included with gear head.
Recommend Products
Main Products
Company Profile
DMKE motor is a specialized motor company founded in Y2009 by Haibing Jian,who boats 18 years of experience in the motor and controller industry. Our company located in Panyu,Guangzhou,China.
Our main products are brushless dc motor, brushless controller, dc servo motor and controller, planetary gear motors, worm gear motors, brush dc motor and AC motor. They are widely used in AGV, RGV, robots, barrier gate, lifting equipment, cleaning machines, medical equipment, cafe machinery, packing machinery, amusement game machines, automobiles, industrial equipment etc.
With a plant area of 4000 square meters, we have the independent design and development capabilities and strong technical force,with an annual output of more than 1 million units. We can accept OEM motor and controller based on customers’ need.
Our main products are brushless dc motor, brushless controller, dc servo motor and controller, planetary gear motors, worm gear motors, brush dc motor and AC motor. They are widely used in AGV, RGV, robots, barrier gate, lifting equipment, cleaning machines, medical equipment, cafe machinery, packing machinery, amusement game machines, automobiles, industrial equipment etc.
With a plant area of 4000 square meters, we have the independent design and development capabilities and strong technical force,with an annual output of more than 1 million units. We can accept OEM motor and controller based on customers’ need.
Our Advantages
FAQ
Q1: What kind motors you can provide? |
A1: For now, we mainly provide Brushless DC Motor, DC Servo Motor, Drive Dheel, Servo Electric Cylinder, Gearbox, Motor Controller, with diameter range from 16 to 220mm, and power range from 5W to 20KW. |
Q2: Are you motors reversible? |
A2: Yes, nearly all dc and ac motor are reversible. We have technical people who can teach how to get the function by different wire connection. |
Q3: Is it possible for you to develop new motors if we provide the tooling cost? |
A3: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we’ll make our evaluation. Welcome to click here to send your requirements. |
Q4: What is your after-sales services? |
A4: A) Free maintenance within 12 months guarantee, lifetime consultant. B) Professional solutions in installation and maintenance. |
