BingYan Ipg 500W Pulsed Laser Rust Remover Aluminum & Stone Cleaning Cloud Control Laser Cleaning Machine
1 set(s)Minimum order
condition:
New
power(w):
1500W, 1000W, 2000W
applicable material:
Stainless Steel, Carbon steel, Aluminum, Wood, Stone, metal
laser type:
Fiber Laser
place of origin:
Henan, China
brand name:
BY LASER
Privacy Policy:
Samples are free within a certain price range
Other recommendations for your business
Contact us
Quik Detail
| condition | New |
|---|---|
| power(w) | 1500W, 1000W, 2000W |
| applicable material | Stainless Steel, Carbon steel, Aluminum, Wood, Stone, metal |
| laser type | Fiber Laser |
| place of origin | Henan, China |
| brand name | BY LASER |
| dimension(l*w*h) | 845*460*605mm |
| laser head brand | HIGHYAG |
| guiderail brand | THK |
| control system brand | Beckhoff |
| weight (kg) | 180 |
| key selling points | Easy to Operate |
| warranty | 2 years |
Product Detail
Product Overview
What is the laser cleaning machine?
Removal of oils, resins, glues, dust, stains, and production residues. Roughening of metal surfaces.
1: Paint removal, rust removal, and oil stain removal before welding or bonding; treatment of oxides and residues after welding.
Removal of oils, resins, glues, dust, stains, and production residues. Roughening of metal surfaces.
1: Paint removal, rust removal, and oil stain removal before welding or bonding; treatment of oxides and residues after welding.
2: Mold cleaning, such as tire molds, electronic molds, and food molds.
Removal of oil stains after precision component production and processing.
Removal of oil stains after precision component production and processing.
3: Treatment of oxides, paint removal, and rust removal during the production or maintenance of aerospace weapons, ships.
4: Cleaning of metal surfaces in narrow spaces. Cleaning of cultural relics, rocks, and exterior surfaces of buildings.
5: Cleaning of mechanical parts, cleaning of pipes and fittings, cleaning of
automobile parts, cleaning of old paint on aircraft, etc.
4: Cleaning of metal surfaces in narrow spaces. Cleaning of cultural relics, rocks, and exterior surfaces of buildings.
5: Cleaning of mechanical parts, cleaning of pipes and fittings, cleaning of
automobile parts, cleaning of old paint on aircraft, etc.
Product Paramenters
Product Model | BLC-1000 | BLC-1500 | BLC-2000 | BLC-3000 | |||
Power | 1000W | 1500W | 2000W | 3000W | |||
Laser wavelength | 1080士10nm | ||||||
Fiber mode | Continuous | ||||||
Adjustable Frequency Range | 20KHz | ||||||
Laser fiber length | 10m (15m can be customized) | 20m | |||||
Adjustable widths | 10-160mm | ||||||
Voltage | AC220V士10% | AC380V土7% | |||||
Optional Accessories | Alternators / Transformers：AC220 to 380V ， AC460V to 380V | ||||||
Total power | 6kw | 8kw | 10kw | 13kw | |||
Cooling mode | Water cooling (deionized water, distilled water or pure water) | ||||||
Host size | 845*460*605mm | 905*480*630mm | 1240*584*1148mm | ||||

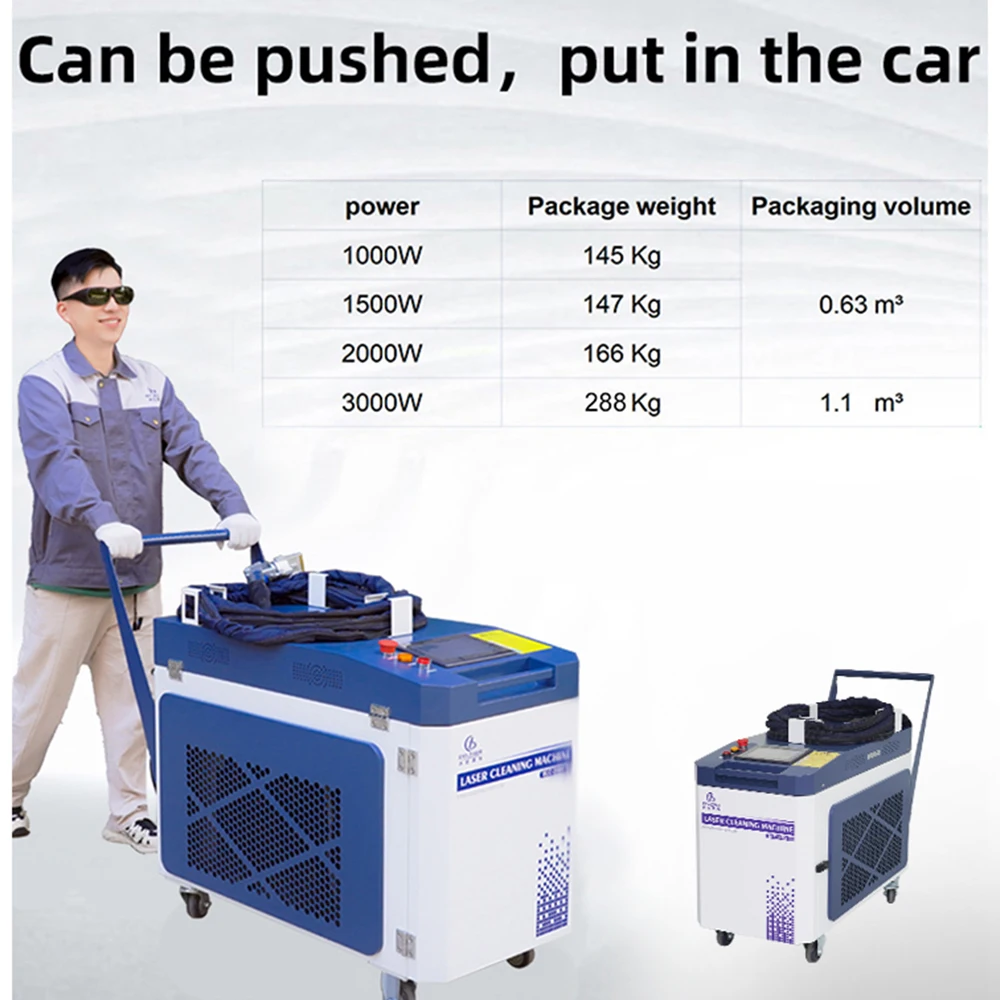

Package Size | 1120*565*1050mm | 1430*720*1220mm | |||||
Net weight | 106kg | 113kg | 137kg | 225kg | |||
Gross weight | 145kg | 147kg | 166kg | 249kg | |||
Tank capacity | 16L (need to add water 14-15L) | ||||||
Sample Show
Product Advantages
1.Free test samples -We can carry out free marking effect tests according to your product material
2.Video Live-You can connect with our sales consultants to watch the production process and the operation of the machine in online video.
3.Customised /OEM-Customised machines on request，Contact us！
