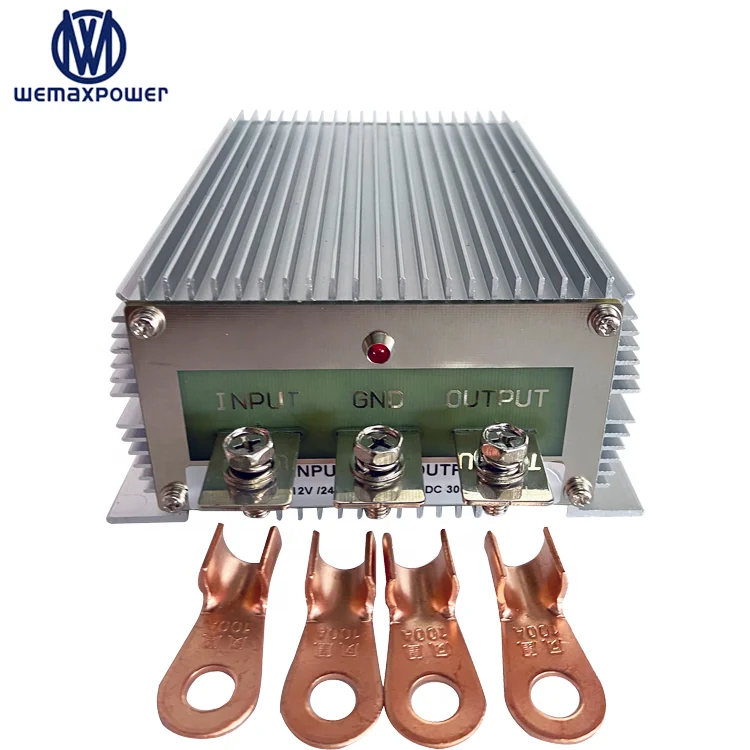

Buck Module 24v to 12v 60a Voltage Dc Dc 24vdc Step Down 12vdc Regulator 720w Dc24v to Dc12v Converter

US $35.51-37.98 / unit
1 unit(s)Minimum order
Network:
/
Place of Origin:
Guangdong, China
Brand Name:
WEMAXPOWER
Model Number:
WMX-DSD24S1260
Type:
DC/DC Converters
Output Type:
Single Phase
Privacy Policy: Samples are free within a certain price range

Contact us

Send Inquiry

Quik Detail

Network

/

Place of Origin

Guangdong, China

Brand Name

WEMAXPOWER

Model Number

WMX-DSD24S1260

Type

DC/DC Converters

Output Type

Single Phase

Output Current

60A

Output Frequency

/

Size

150*127*63mm

Weight

1.55KG

Efficiency

96%

Product name

dc24v to dc12v converter

Applications

Car/Bus/Boat/Truck/Bus/RV.etc

Warranty

1 year

Input Voltage

24Vdc

Output Voltage

12Vdc

Waterproof

Yes

Certificate

CE & RoHS

Function

Step-down Converter

Cooling way

Free air cooling

Shell of material

Aluminum

Customized support

YES

Product Detail

Buck module 24v to 12v 60a voltage dc dc 24vdc step down 12vdc regulator 720w

dc24v to dc12v converter
dc dc converter

24v to 12v 60a dc/dc converter

Fetures

ØHigh quality components.

ØFull power, stable voltage & current output.
ØWide input voltage range.
ØWaterproof & anti-shock protection, ultra compact size, light weight.
ØIndustry grade product , efficiency up to 96%.
ØDie-cast aluminum shell, epoxy potting.
ØNon-Isolated Module.

Specification

 Series NO.

 WMX-D24D12

 Model NO.

 WMX-DSD24S1260

 Product Name

 24v to 12v dc/dc converter

 Input rated voltage

 24Vdc

 Input voltage range

 18-32Vdc

 Conversion Efficiency

 96%

 Output voltage

 12Vdc

 Output current

 60A

 Output rated power

720W

 Voltage regulation

 < 1%

 Load regulation

 < 2%

 Ripple (full load test)

 < 150mV

 No-load current

 < 20mA

 Working Temperature

 -40°c ~ +80°c

 Waterproof

 YES

 Protections

 Over-load, Over-current, Over-temperature, Over-voltage

 Machine size

 150*127*63mm

 N. Weight

 1.55kg

 Cooling way

  Free air convection

 Other

 Standard box packing



Introductionproduct description



Dimension-

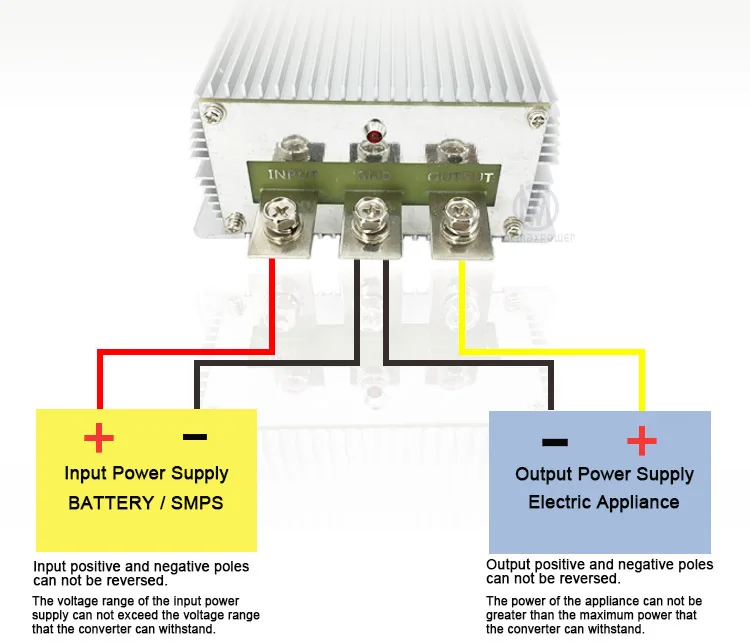

Wiring Diagramconnection diagramApplicationapplicationdc dc converterModel Listdc converter Shippingdc dc converter
