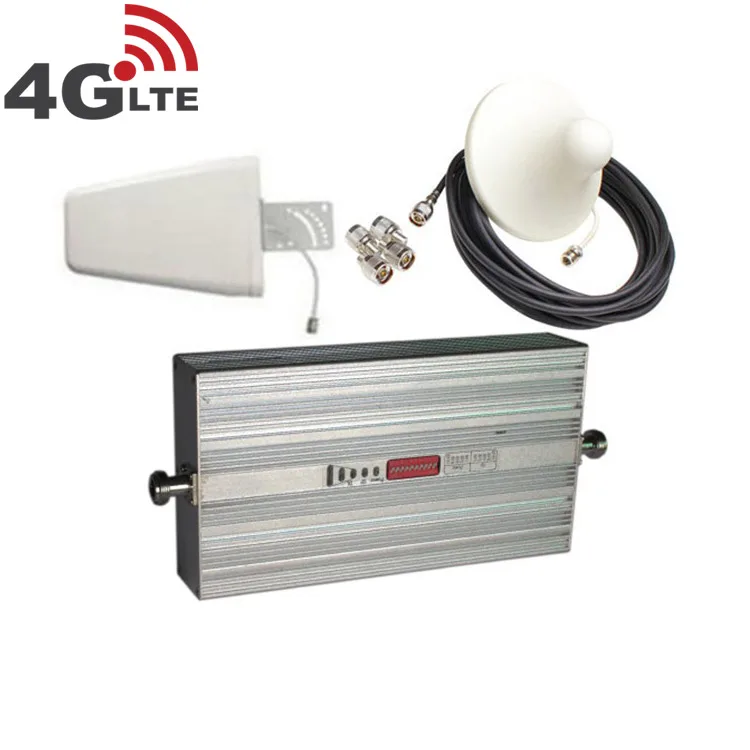

Cell Phone Reception Boosters kit 4G Lte Signal Repeater 2600MHz Gain 70dB Amplifier Booster
Other recommendations for your business
Contact us
Quik Detail
| Model Number | KT-4G |
|---|---|
| Place of Origin | Fujian, China |
| Brand Name | Kingtone |
| Product name | 4g lte signal repeater 2600mhz gain 70db |
| Type | 4g lte amplifier booster |
| Frequency | 2600 MHz |
| Gain(dB) | 75 |
| Output Power(dBm) | 10 |
| coverage | 200~500sqm |
| ALC(dB) | 20 |
| Weight(kg) | 4kg |
| System | FDD LTE 2600 |
| Function | 4G LTE Repeater |
Product Detail
Cell Phone Reception Boosters kit 4G Lte Signal Repeater 2600MHz Gain 70dB Amplifier Booster
Boost Your Cell Signal @ Your Home or Office.
Features:
· Extends the transmit and receive signals of mobile phone antenna.
· Easy installation.
· Passive-repeater circuit board reduce signal loss, cutoff, fade and static
· Picks up signals from your phone and transmits them outside, pulls in signals from
outside for sharp reception.
· Improves reception/transmission when using your phone.
· For use with all portable and transportable cellular telephones.
Quick Details
- Place of Origin: Fujian, China (Mainland)
- Brand Name: KINGTONE
- Model Number: 4g signal booster
- Product name: 4g repeater
- 4g mobile signal booster: 4g signal repeater
- 4g lte repeater amplifier: lte2600mhz repeater
- 4g booster: lte
- 4g cellulares: 4g cell phone signal receiver
- 4g cell phone: 4g mobile phone signal extender
- 4g mobile phone: 4g telephone signal repeater
- mobile signal booster: signal booster for cell phone
- 2g/3g/4g signal booster/repeater: 4g signal booster lte 2300mhz
- fdd-lte 4g mobile phone: cell phone booster 4g
Contact with Anna Yao:
Skype: anna.yao696
Whatsapp: +86 15392188577
| PackagingDetails: | :
|
|---|

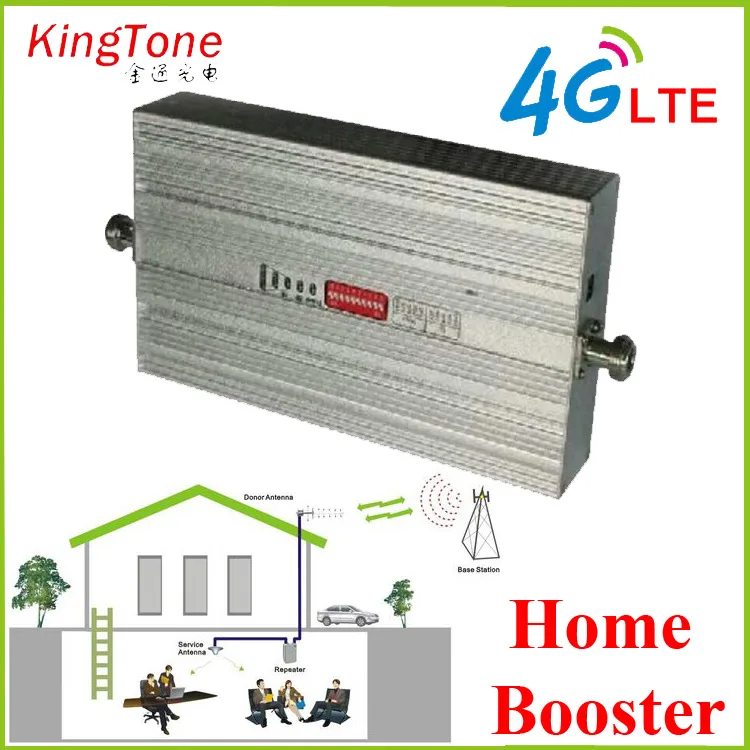

Cell Phone Reception Boosters kit 4G Lte Signal Repeater 2600MHz Gain 70dB Amplifier Booster (also known as cell phone signal booster or amplifier), in the cell phone industry, is a type of bi-directional amplifier used for boosting the cell phone reception to the local area by the usage of a reception antenna, a signal amplifier, and an internal rebroadcast antenna. These are similar to the cellular broadcast towers used for broadcasting by the network providers, but are much smaller, usually intended for use in one building.
Installation Steps
Fix up outdoor antenna reception on housetop and point to signal tower
Connect outdoor antenna to 'outdoor' port in repeater machine through cable
Connect indoor antenna to 'indoor' port in repeater machine through cable also
Plug power adaptor into AC power socket and finish installation cell phone gsm amplifier
Main Features:
1 Mini design, beautiful looking and practical
2 Receiving and sending separation, easy installation and operation
3 Full-duplex design, low consumption, environmental protection
4 AGC,ALC integration design, device stability total improvement
5 MCU singlechip control, monitoring device on running completely
Technical Specification:
Electrical specification | Uplink | Downlink | ||
Frequency Range | GSM900 | 890 ~ 915 MHz | 935 ~ 960 MHz | |
4G | 2500 ~ 2570 MHz | 2620 ~ 2690 MHz | ||
WCDMA | 1920-1980MHz | 2110-2170MHz | ||
Max .Gain | ≥ 70dB | ≥ 75dB | ||
Max .Output Power | ≥ 24dBm | ≥ 27dBm | ||
MGC ( Step Attenuation ) | ≥ 31dB / 1dB step | |||
Automatic Level Control | ≥ 20dB | |||
Gain Flatness | GSM & CDMA | Tpy≤ 6dB(P-P); DCS,PCS ≤ 8dB(P-P) | ||
WCDMA | ≤ 2dB/ 3.84MHz,Full Band ≤ 5dB(P-P) | |||
Noise Figure | ≤ 4dB | |||
VSWR | ≤ 2.0 | |||
Group Delay | ≤ 1.5μs | |||
Frequency stability | ≤ 0.01ppm | |||
Spurious Emission & | GSM Meet ETSI TS 151 026 V 6.1.0 | |||
WCDMA Meet 3GPP TS 25.143 ( V 6.2.0 ) | ||||
CDMA Meet IS95 & CDMA2000 | ||||
WCDMA System | Spurious Emission Mask | Meet 3GPP TS 25.143 ( V 6.2.0 ) | ||
Modulation Accuracy | ≤ 12.5% | |||
Peak Code Domain Error | ≤ -35dB@Spreading Factor 256 | |||
CDMA System | Rho | ρ > 0.980 | ||
ACPR | Meet IS95 & CDMA2000 | |||
Mechanical Specifications | Standard | |||
I /O Port | N-Female | |||
Impedance | 50 ohm | |||
Operating Temperature | -25ºC~+55ºC | |||
Environment Conditions | IP40 | |||
Dimensions | 220x320x40mm | |||
Weight | ≤ 3.50Kg | |||
Power Supply | Input AC90-264V,output DC 5V / 6A | |||
LED Alarm | Standard | |||
Power LED | Power Indicator | |||
UL LED | Be lighted when there is phone calling | |||
DL 1 | Be lighted when Outdoor signal is -65dB | |||
DL 2 | Be lighted when Outdoor signal only -55dB | |||
DL 3 | Be lighted when Outdoor signal only -50dB | |||
Our mobile signal booster(mini repeater) is specially designed for the “blind zones” of offices, family rooms, factories, bars, supermarkets, underground parking garage,etc, where the signal is very poor, or in spite of full mobile signals on the mobile phone, there is a break in voice leading to call clarity problem. Simply place the mobile phone booster in such places, you'll be astonished with the huge gain in both the incoming reception and outgoing transmission levels as the mobile signal booster goes to work!
