Cheap Price Crawler Mounted Bore Well Drilling Machine for Water Well China Drilling Rig
Other recommendations for your business
Contact us
Quik Detail
| Type | Rotary Drilling Rig |
|---|---|
| Power Type | Diesel |
| Place of Origin | Henan, China |
| Brand Name | Unique |
| Use | Water Well |
| Dimension(L*W*H) | 5900x2000x2850mm |
| Weight | 9000 KG |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video outgoing-inspection | Provided |
| Core Components | motor, Pressure vessel, Engine, Gearbox |
| Key Selling Points | Competitive Price |
| Drilling Diameter | 300mm, 200mm |
| Drilling Depth | Max.300m |
| Product name | crawler type water well drilling rig |
| Drilling depth | 300m |
| Drilling diameter | 140-325mm |
| Drilling method | Top Drive Hydraulic Rotary Drilling |
| Working pressure(mpa) | 1.7-3.0MPa |
| Lifting power | 24T |
| Rotation Speed | 40-70r/min |
| Engine Power | 85Kw/2200rpm |
| Applicable Industries | Manufacturing Plant, Construction works , Energy & Mining |
| Showroom Location | Viet Nam, Philippines, Peru, Indonesia, Pakistan, Spain, Thailand, Morocco, Kenya, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Nigeria, Uzbekistan |
| Condition | New |
| Marketing Type | New Product 2019 |
| Warranty of core components | 1 Year |
Product Detail

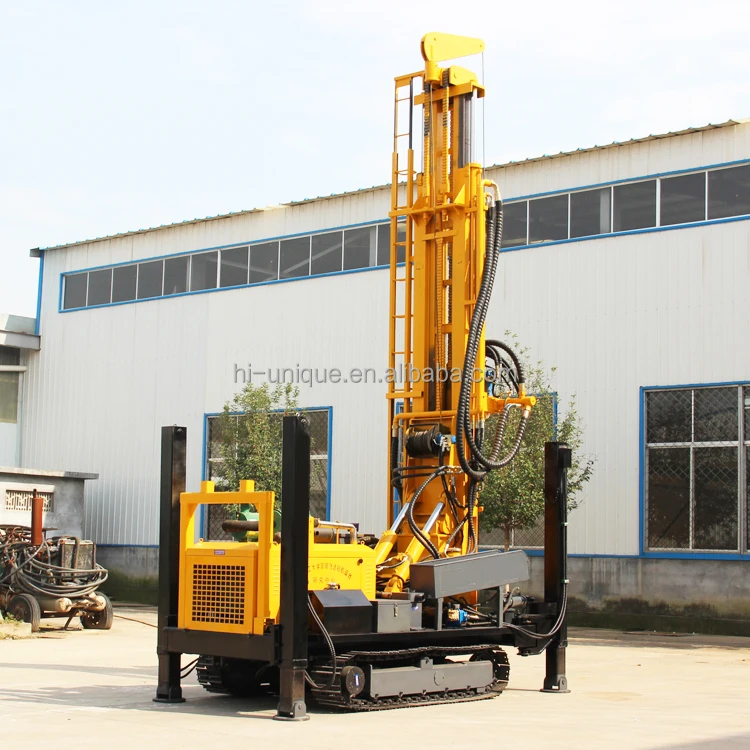

Cheap Price Crawler Mounted Bore Well Drilling Machine for Water Well China Drilling Rig
1. The drilling rig makes the overall power loss small and the drilling cost low. 200m 300m 400m 500m 600m depth Truck crawler portable compressor water well drilling rig
2. The drill rig has more positive speed stages and 14-500r / min speed range, and the output torque is 13428-250N.m.
3. The drilling rig has 2 reverse speeds, which is convenient for handling accidents.
4. The air compressor drilling rig adopts a long-stroke double-speed mechanism, a mechanical
power head, and a power head stroke of 3400MM to improve drilling efficiency and reduce the occurrence of plugging and burning accidents.
5. The water well drilling rig rig uses dual oil pumps for oil supply. A single pump is used for drilling, and a double pump is used for confluence when lifting. The power loss is small and the auxiliary time is short.
6. The drilling rig machine has advanced structure and reasonable layout, which is convenient for maintenance, maintenance and repair.
7. The crawler water drilling rig machine chassis is adopted, and the trip of the outrigger cylinder can be automatically loaded for 1.5m, which is convenient for relocation and transportation.
8. The drill rig reserves some functional interfaces in the hydraulic system, and can expand the functions according to the technological requirements of different users.
Technical Parameters
|
Drilling Depth |
300m |
|
Dia.hole |
φ140-325mm |
|
Advance Length one time |
6.6m |
|
Working pressure |
1.7-3.0MPa |
|
Air consumption |
17-35m³/min |
|
Length of rod |
1.5m,2m,3m,6m |
|
Dia. Of rod |
φ76, φ89,φ102,φ114 |
|
Lifting power |
24T |
|
Rotation torque |
8500-11000N.m |
|
Rotation Speed |
40-70r/min |
|
Diesel Engine |
Yuchai |
|
Engine Power |
85Kw/2200rpm |
|
Travelling speed |
0-2.5 Km/h |
|
Climb capacity |
30° |
|
Weight |
9000kgs |
|
Dimension |
5900x2000x2850mm |
|
Application |
Complicated geological conditions:Rock,Mud,Sand etc. |
|
Drilling Way |
Top drive hydraulic rotary and propulsion,Dth Drilling or Mud Pump Driling |
|
Dth Hammer |
4",5",6",8" Drill hammer or CIR110, 130, 150,170 |
Zhengzhou Unique Industrial Equipment Co., Ltd is a leader in the R&D, manufacture, and distribution of Construction Machinery in China. Our main products are : water well drilling rig, Concrete Mixers, Concrete Mixing Plants, Mobile Concrete Batching Plants, Tower Cranes, Building Hoists, Concrete Mixer Truck, Concrete Pumps and Block Making Machines and etc…
UNIQUE Group was founded in 1983, which has been dedicated to making the most suitable products and services for construction enterprises for more than 30 years, focused on providing comprehensive solutions for engineering construction, expanding the field, healthy development, built mainly with development and production of construction machinery, across regions, and cross-industry conglomerates.
UNIQUE Group wholeheartedly serves concrete machinery industry at home and abroad, provides high quality products, fast after-sales service, and goes to a better future with you hand in hand!
UNIQUE has the 12 workshops to produce every part of concrete mixing plants and we can produce spare parts to delivery thern to you within 2 days.
UNIQUE was founded in 1973, more than 40 years dedicated to building construction enterprises make the most suitable products and services.
After-sales Service:
Training how to install and use the machine; Engineers avilable to service machinery overseas.
Q1: Are you trading company or manufacturer?
A: We are factory. We can design and manufature product with our patent.
Q2: How long is your delivery time?
A: Generally it is 7-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q3: What is your payment method?
A: 30% of total price should be paid by T/T as down payment; 70% balance payment should be paid by T/T before delivery.
Q4: What’s the Drilling Depth of water well drilling rig do you have?
A:The Drilling Depth range from 200m-600m.
Q5: How long could your air compressor be used?
A: Generally, more than 10 years.
