China HZ-130 Spt 130m Surface Small Water Well Drilling Rig Machine Diamond Core Drills Machines Rigs for Mineral Exploitation
US $5,001.00 / set
1 set(s)Minimum order
Type:
Rotary Drilling Rig
Power Type:
Diesel
Place of Origin:
Shandong, China
Brand Name:
SDS
Use:
Water Well
Voltage:
12v
Privacy Policy:
Samples are free within a certain price range
Other recommendations for your business
$75.00-85.00
1 case (MOQ)
Contact us
Quik Detail
| Type | Rotary Drilling Rig |
|---|---|
| Power Type | Diesel |
| Place of Origin | Shandong, China |
| Brand Name | SDS |
| Use | Water Well |
| Voltage | 12v |
| Dimension(L*W*H) | 2.4*0.8*1.4m |
| Weight | 740 KG |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video outgoing-inspection | Provided |
| Core Components | motor, Gear, Engine |
| Key Selling Points | Competitive Price |
| Drilling Diameter | 75mm |
| Drilling Depth | Max.100m |
| Name | Soil Test 130m Mining Core Drilling Water Machine Rigs |
| Drilling depth | 130M |
| Drilling diameter | 75-220mm |
| Power Parameters | 13.2kw |
| drill angle | 90-75 |
| Mud pump | 160 |
| Key words | water well drill rig |
| Application | Water Wells Drill Rig |
| Engine | Disel Engine |
| Color | Yellow |
| Showroom Location | None |
| Condition | New |
| Marketing Type | New Product 2019 |
| Warranty of core components | 1 Year |
| Applicable Industries | water well, soil test, Geological exploration |
Product Detail
130m depth diesel engine pneumatic rigs track-type crawler type water well drilling rig machine
HZ series hydraulic water well drilling rig is mainly used for water well, geological general investigation and exploration,kindsof hole in concrete structure,road and tall building foundation exploration,river levees,subgrade grouting hole drilling anddirect grouting,civil wells etc.
1. It improves drilling efficiency and reduces labor intensity With hydraulic automatic feeding mechanism.
2. It can be achieved without stopping to change rods, easy to operate, safe and reliable with ball clip holding mechanism orhydraulic chuck.
3. It has hole bottom pressure gauge to be easy to master the situation in the hole.
4. It also has advantage of Compact structure, concentrated handle, small footprint, light weight, strong decomposition, easy tomove. It can be operated in plains and mountain areas.
Model | HZ-130 | |
Tech Parameter | Drilling depth(m) | 130 |
Open hole dia.(mm) | 325 | |
End hole dia.(mm) | 75 | |
Drill rod dia.(mm) | 42-60 | |
drill angle( ° ) | 90-75 | |
Matching power ( kW) | 13.2 | |
Weight without power( kg ) | 880/970 | |
Dimension ( m ) | 2.4*0.8*1.4 |
It has the advantages of large drilling, deep drilling, fast footage, flexible and efficient.
Details Images
Console
The console is composed of a console frame, manual reversing valve, pressure reducing valve, speed regulating valve, oil pressure gauge, various pipelines, engine instruments, throttle cable, flameout cable, damper control, etc. All control functions are concentrated on the console, which is easy to operate, time-saving and labor-saving. The operator can stand on a foot pedal with sufficient area to operate.
Promotion part
The propulsion part is composed of propulsion cylinder, chain, slide plate and so on. When the piston rod of the propulsion cylinder comes out and retracts, it drives the pulley block, and the slide plate slides up and down on the carriage through the chain. The resin slider structure is adopted on the skateboard, which effectively reduces the wear of the slideway. The axial pressure can be adjusted during deep hole drilling.
Power system
It is composed of engine, coupling, oil pump connecting plate, and air filter. The air filter is composed of three-stage air pre-filter and air fine filter. It can effectively protect the engine from normal use under severe working conditions.
Details determine success or failure, we focus on every detail of the product, every process, every process, we focus on creating the best quality products, to provide you with higher product quality.
Application
Our machines can be applied to various countries in the world, suitable for various scenarios, various geological scenarios including deserts, swamps, grasslands, mountains, orchards, etc.
Related Products

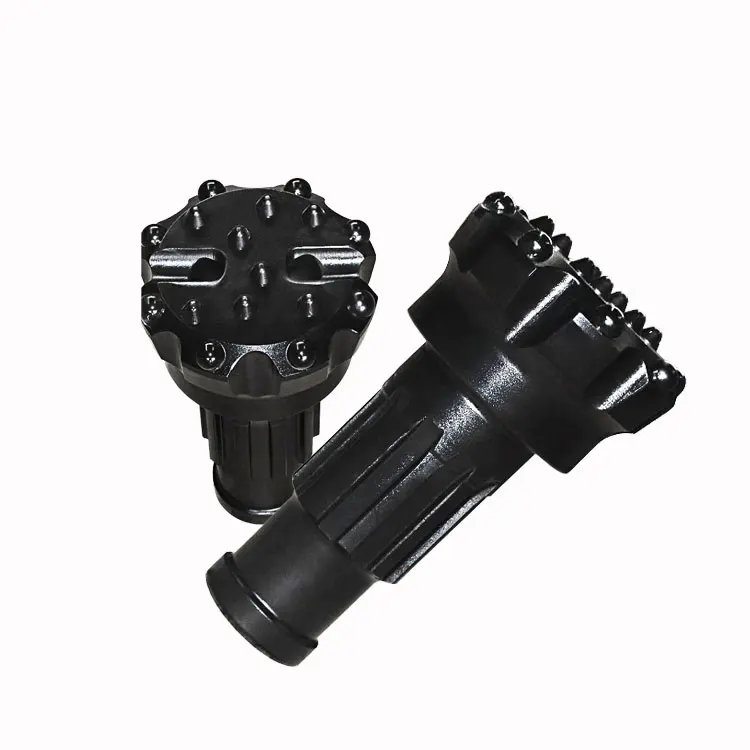

We also have your drilling rigs` related accessories——drilling bits, drilling rods, drilling pipe, Underwater detector and so on. Just send message to us to get the best price!
Why Choose Us
1. We are driiling rig in SiChuan for more than ten years, with a series of PASSED certificate, like CE,TUV,BV,ISO.
2. for Soils, we have hydraulic one for choice.for rocks, we have penumatic one for choice.also we have DTH drilling rig, big diameter drilling rigs, geological exploration drilling rig, engineering drilling rig for different working condition.
3. for hydrtaulic drilling rig, we have portable type, wheel type, crawler type for choice.
Customer Photos
Our customers are distributed all over the world. You are not alone. The quality of our machines is very good. Customers have given us certain affirmations. Contact us for information about the machine
Packaging & Shipping
We will provide safe and reliable transportation for your goods. We will pack your goods in wooden boxes, and related supporting goods will be arranged in the same container. We usually take the shipping method, and it takes about 30 days to arrive. The specific time depends on the situation. Of course, I will also use land transportation or other transportation methods.
