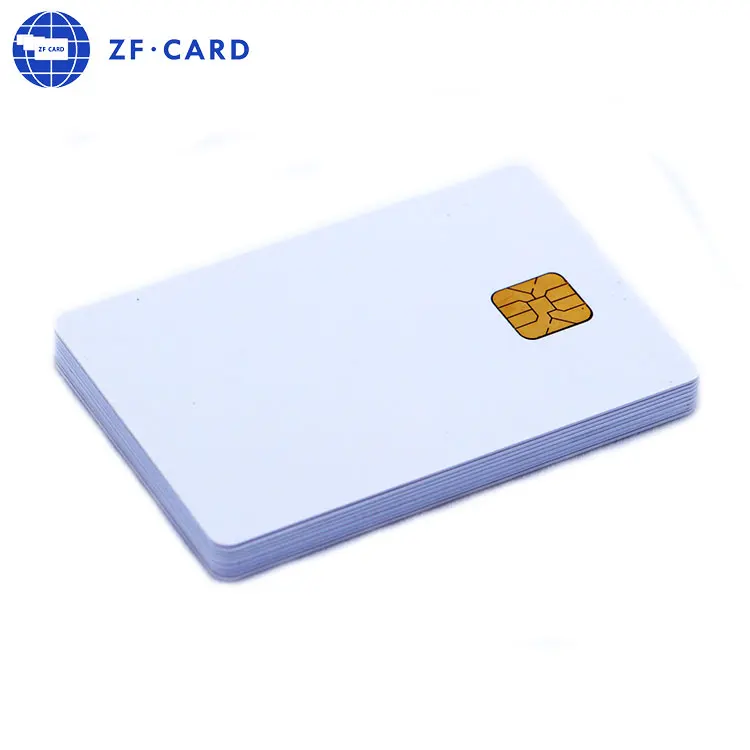

CR80 Standard CMYK Printing SLE4442 Chip Blank Contact Smart Card
Other recommendations for your business
Contact us
Quik Detail
| Application | Payment, Credit Card, Campus Card ,Bus, Parking lot ect |
|---|---|
| chip | SLE4442 |
| Special Features | Waterproof / Weatherproof |
| Communication Interface | contact |
| Place of Origin | Guangdong, China |
| Brand Name | ZF CARD |
| Model Number | ZF-4b83 |
| Frequency | 13.56Mhz |
| Material | PVC/PET/ABS |
| Size | 85.5*54mm |
| Thickness | 0.84mm,or based on your demand |
| Certification | ISO9001 |
| Printing type | offset printing, silk printing, UV printing etc |
| Sample | Free sample provided |
| Personalization | serial no, barcode, embossing, magstripe, encoding, foil stamping etc |
| Lead time | 3-7 Working Days |
| Product Keywords | CR80 Standard CMYK Printing SLE4442 Chip Blank Contact Smart Card |
Product Detail
CR80 Standard CMYK Printing SLE4442 Chip Blank Contact Smart Card
Product Detail
The main features of the SLE4442/5528 are:
- Synchronous communication protocol, ISO 7816 compatible
-
100% functional compatibility to SLE 4428
-
1024 x 8 bit EEPROM organization of Data Memory
-
1024 x 1 bit Protection Memory
-
Byte-wise write protection of Data Memory (one time programmable)
-
Not alterable Manufacturer Code (chip coding and unique coding by application identifier
RID according to ISO/IEC 7816-5)
-
Data Memory alterable only after verification of 2 Byte PSC
-
PSC verification trials limited by Error Counter
-
Serial synchronous three-wire link protocol according to ISO/IEC 7816
-
Byte-wise addressing
-
End of processing indicated at data output
-
Contact configuration and Answer-to-Reset (synchronous transmission) in accordance to standard ISO/IEC 7816
-
PSC code: FFFF
-
Other contact ic chip available: SLE5542/SLE4428/SLE4442/AT24C series, etc
| Material | PVC |
| Size | 85.5 x 54mm ( credit card size /ISO standard size) or Customized |
| Thickness | 0.84mm |
| Specification |
1. Printing Type: CMYK printing, offset printing, pantone color printing 2. Surface Finish: Glossy, frosted, matt, silver/gold background, silver screen 3. Options: Signature panel, magnetic strip, scratch panel, embossing numbers, raised numbers, eyelets, hole punching, etc. 4. Serial Numbers: Uniques serial numbers, barcode(EAN13/39/128, UPC, etc) QR code 5. Magnetic Stripe: Black 12.7mm Hico/Loco 3 track, 8.4mm Hico 2 track, 6.35mm Hico 2 track; VIP card, membership card, ID card, magnetic card, scratch card |
| Packaging |
200 pcs per inner box, 25 boxes per carton, 5000pcs per carton Carton Dimension: 57cm*34cm*26cm, 7KG for 1000 pcs cards(0.84mm) |
| Delivery Time | 3-5 days depend on the craftworks and quantity for each order |
| Payment Terms | T/T bank transfer, Westen Union, MoneyGram, Credit Card |
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
Carton Specification
| Quantity | Box size (cm) | Carton size(cm) | Weight(KG) |
| 1000pcs | 23*19*17 | 25*20*18 | 7 |
| 2000pcs | 47.5*23*13 | 51*25*15 | 14 |
| 3000pcs | 47.5*23*19 | 51*25*20 | 21 |
| 4000pcs | 47.5*23*24.5 | 51*25*26.5 | 28 |
| 5000pcs | 47.5*23*30.5 | 51*25*32.5 | 35 |
