2.2 2.4 2.8 3.2 3.5 4 Inch SPI LCD Display Touch Screen Module 240*320 320*480 Resolution ILI9341 ILI9488 ST7796

1 piece(s)Minimum order
Type:
TFT
Display Size:
2.2/2.4/2.8/3.2 /3.5/4.0 Inch
Supplier Type:
Manufacturer
Place of Origin:
Guangdong, China
Brand Name:
QDTFT
SKU:
MSP Series Module
Contact Now
Live Chat
Inquiry Basket
Category: ,,,,,,,,,,,,,,
Privacy Policy: Samples are free within a certain price range

Contact us

Send Inquiry

Quik Detail

Type

TFT

Display Size

2.2/2.4/2.8/3.2 /3.5/4.0 Inch

Supplier Type

Manufacturer

Place of Origin

Guangdong, China

Brand Name

QDTFT

SKU

MSP Series Module

Resolution

320*240/480*320

Interface

SPI

Color

RGB 65K

Driver IC

ILI9341/ILI9341V/ILI9488/ST7796U/ST7796S

Touch IC

XPT2046/FT6336U

Operating Voltage

3.3V / 5V

Warranty

1 year

Product Detail

Products Description
More product introduction: http://www.lcdwiki.com/Main_Page#SPI_Display

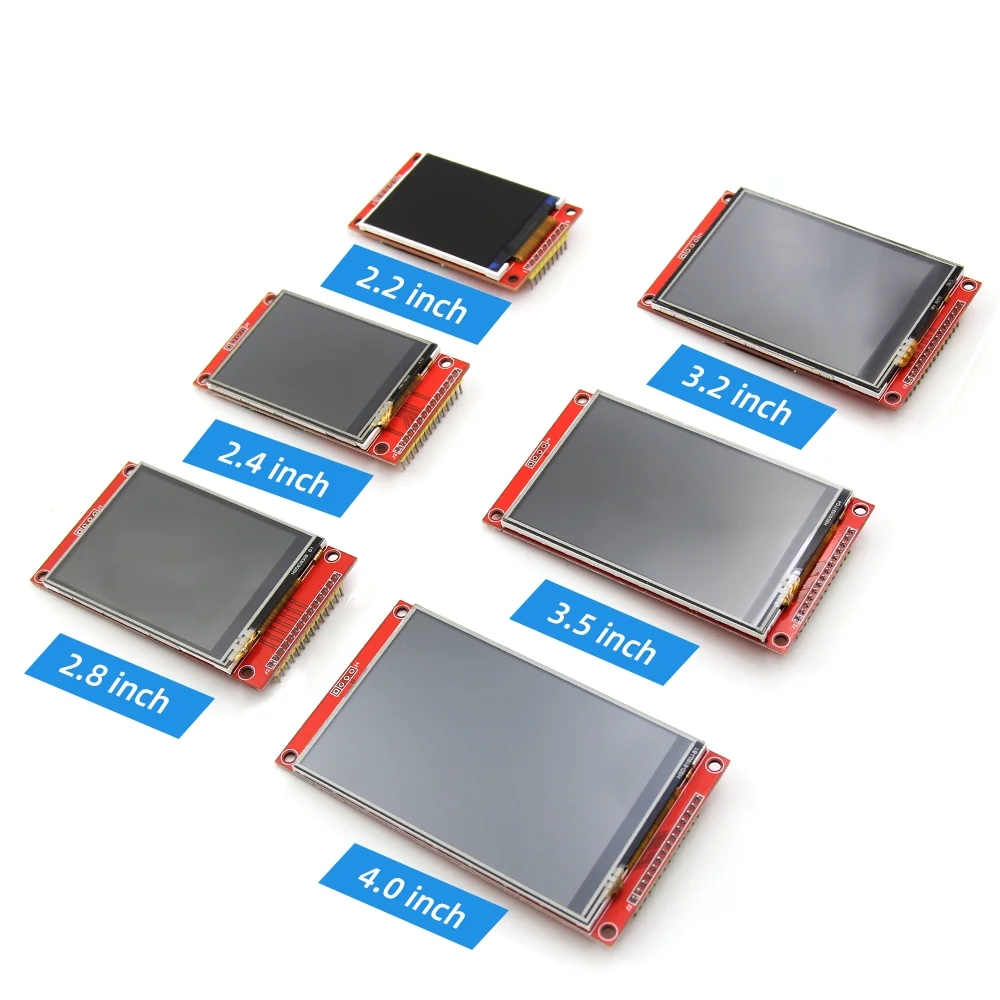

Red PCB LCD Module
* support 65K color display,display rich colors
* Using the SPI serial bus, it only takes a few IOs to illuminate the display
* Easy to expand the experiment with SD card slot
* Provide a rich sample program
* Military-grade process standards, long-term stable work
* Provide underlying driver technical support
Black PCB LCD Module
* 65K colors and rich display colors
* The upgrade adopts IPS full view panel, with good visual angle(Except 4 inch)
* On board level conversion circuit, compatible with 5V and 3.3V MCU
* Adopting a 4-wire SPI serial bus to save I/O pins
* Optional capacitive touch/no touch function for modules
* Module input supports 2.54 pin interface and FPC extension interface
* Equipped with micro TF card slot for easy storage expansion
* Provide rich example learning programs (ESP32/STM32/Arduino UNO&Mage2560/C51/CH32)
* Provide low-level driver technical support, and update WIKI information online
* Multiple tests for module aging can meet military level standards, supporting long-term stable work
Number
Pin Label
Description
1
VCC
5V/3.3V power input
2
GND
Ground
3
CS
LCD chip select signal, low level enable
4
RESET
LCD reset signal, low level reset
5
DC/RS
LCD register / data selection signal,high level: register, low level: data
6
SDI(MOSI)
SPI bus write data signal
7
SCK
SPI bus clock signal
8
LED
Backlight control, high level lighting,if not controlled, connect 3.3V always bright
9
SDO(MISO)
SPI bus read data signal, if you do not need to the read function, you can not connect it
(The following is the touch screen signal line wiring, if you do not need to touch function or the module itself does not have
touch function, you can not connect them)
10
T_CLK
Touch SPI bus clock signal
11
T_CS
Touch screen chip select signal, low level enable
12
T_DIN
Touch SPI bus input
13
T_DO
Touch SPI bus output
14
T_IRQ
Touch screen interrupt signal, low level when touch is detected
Number
Pin Label
Description
1
VCC
Power positive
2
GND
Power ground
3
LCD_CS
LCD selection control signal, Low level active
4
LCD_RST
LCD reset control signal, Low level reset
5
LCD_RS
LCD command / data selection control signalHigh level: data, low level: command
6
SDI(MOSI)
SPI bus write data signal(SD card and LCD screen used together)
7
SCK
SPI bus clock signal(SD card and LCD screen used together)
8
LED
LCD backlight control signal (If you need control, please connect the pins. If you don't need control, you can skip it)
9
SDO(MISO)
SPI bus read data signal (SD card and LCD screen used together)
10
CTP_SCL
Capacitive touch screen IIC bus clock signal (modules without touch screens do not need to be connected)
11
CTP_RST
Capacitor touch screen reset control signal, low-level reset (modules without touch screens do not need to be connected)
12
CTP_SDA
Capacitive touch screen IIC bus data signal (modules without touch screens do not need to be connected)
13
CTP_INT
Capacitor touch screen IIC bus touch interrupt signal, when generating touch, input low level to the main control (modules without touch screens do not need to be connected)
14
SD_CS
SD card selection control signal, low level active (without SD card function, can be disconnected)
SPI LCD DISPLAY
MODULE
SIZE
TOUCH
RESOLUTION
DRIVER IC
MSP0961
0.96''
/
160*80
ST7735S
MSP1141
1.14''
/
135*240
ST7789T3
MSP1308
1.3''
/
240*240
ST7789
MSP1443
1.44''
/
128*128
ST7735S
MSP1444
1.44''
/
128*128
ST7735S
MSP1541
1.54''
/
240*240
ST7789
MSP1803
1.8''
/
128*160
ST7735S
MSP1804
1.8''
/
128*160
ST7735S
MSP1901
1.9''
/
170*320
ST7789
MSP2008
2''
/
240*320
ST7789
MSP2202
2.2''
/
240*320
ILI9341
MSP2401
2.4''
/
240*320
ILI9341
MSP2402
2.4''
resistive
240*320
ILI9341
MSP2806
2.8''
/
240*320
ILI9341
MSP2807
2.8''
resistive
240*320
ILI9341
MSP2833
2.8''
/
240*320
ILI9341V
MSP2834
2.8''
capacitive
240*320
ILI9341V
MSP3217
3.2''
/
240*320
ILI9341
MSP3218
3.2''
resistive
240*320
ILI9341
MSP3222
3.2''
/
240*320
ILI9341V
MSP3223
3.2''
capacitive
240*320
ILI9341V
MSP3520
3.5''
resistive
320*480
ILI9488
MSP3521
3.5''
/
320*480
ILI9488
MSP3525
3.5''
/
320*480
ST7796U
MSP3526
3.5''
capacitive
320*480
ST7796U
MSP4020
4''
/
320*480
ST7796S
MSP4021
4''
resistive
320*480
ST7796S
MSP4030
4''
/
320*480
ST7796S
MSP4031
4''
capacitive
320*480
ST7796S
