Custom High Quality 20W High-power Mobile Phone Wireless Charger Module Three-coil Transmitter PCBA One Stop Custom Service

US $1.00-5.00 / piece
100 piece(s)Minimum order
Model Number:
YCT-C109
Type:
Controller Board
Place of Origin:
Guangdong, China
Brand Name:
YCT
Copper Thickness:
1 oz
Base Material:
FR-4/aluminum/cem-1/cem-3/FR-1
Privacy Policy: Samples are free within a certain price range

Contact us

Send Inquiry

Quik Detail

Model Number

YCT-C109

Type

Controller Board

Place of Origin

Guangdong, China

Brand Name

YCT

Copper Thickness

1 oz

Base Material

FR-4/aluminum/cem-1/cem-3/FR-1

Board Thickness

1.6mm

Min. Hole Size

0.10mm

Min. Line Width

0.10mm

Min. Line Spacing

0.1mm4mil

Surface Finishing

HASL

Application

consumer electronics

Certificate

ROSH, ISO9001

Solder mask

Green, Blue, Red, Yellow, Black

Coil Type

Single Coil

Product Detail

Product features
(1) Comply with WPC V1.2.3 wireless charging specification
(2) Product standards: EPP certification standards
(3) Supports wireless charging of mainstream mobile phones such as Huawei, Xiaomi, Samsung, and Apple
(4) Use high-performance main control chip, power management chip, low temperature throughout the process
(5) Both cars and trucks can be used directly without a voltage stabilizing module.
(6) High stability, strong compatibility and wide charging range
(7)Input voltage/current: 9V-30V-2A
(8)Output power: 20W/15/10W/7.5W/5W automatic identification
(9) Charging efficiency: about 80%
(10) Sensing distance: <8mm
(11) Working frequency: 100-200Khz
(12) Equipped with four protection functions such as overcurrent, overvoltage, overtemperature and short circuit.
(13)Support dual foreign object detection (FOD)

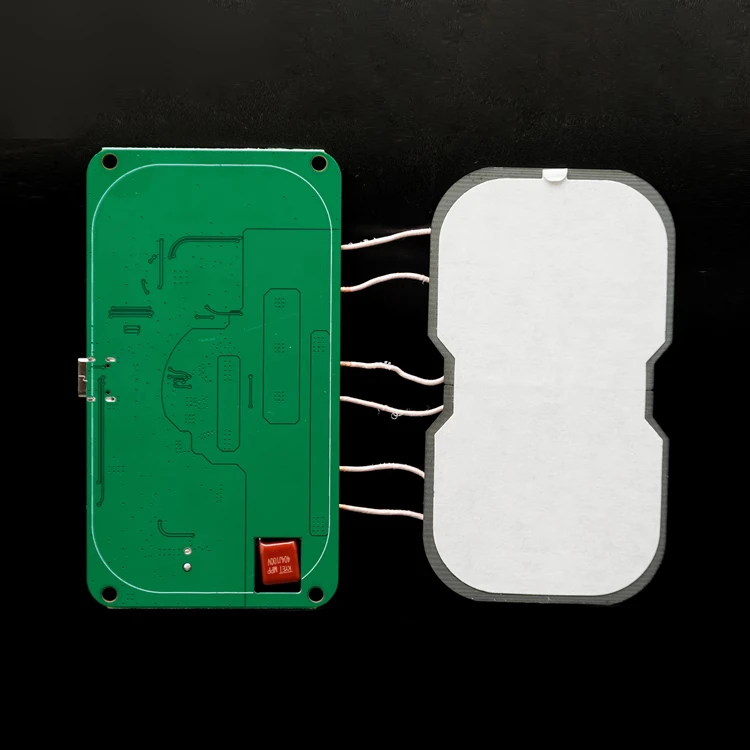

(14)PCBA board size: length 100mm*width 50mm*thickness 11mm
(15) Magnetic isolation sheet coil size: length 95mm*width 53mm*thickness 3.8mm

750-wireless charger3.jpg750-wireless charger4.jpg





01_0203_020204_02

OEM Manufacturer FR4 94v0 Car GPS Tracker PCBAProduct Description

 PCB capacity

Item Mass Production Pilot Run Production
Capacity Capacity
Layer Counts 1L—18L, HDI 20-28 , HDI
Material CEM1,CEM3,FR-4, High TG FR4 , Halogen-free FR4 , aluminium ,Ceramic(96% Alumina)
Teflon,PTFE(F4B,F4BK), Rogers(4003,4350,5880)Taconic(TLX-8,TLX-9), Arlon(35N,85N)etc.
Material Mixed Laminate 4 layers -- 10 layers 12 layers
FR4+Ro4350 , FR4+Aluminium , FR4+ Polyimide
Maximum Size 610mm X 1200mm 1200 - 2000MM
Board Outline Tolerance ±0.15mm ±0.10mm
Board Thickness 0.125mm--6.00mm 0.1mm--8.00mm
Thickness Tolerance ( t≥0.8mm) ± 8% ±5%
Thickness Tolerance( t<0.8mm) ±10% ±8%
Minimum Line / Space 0.10mm 0.075mm
Trace width Tolerance 15%-20% 10%
Minimum Drilling Hole (Mechanical) 0.2mm 0.15mm
Minimum laser hole 0.1mm 0.075mm
Hole Position/hole Tolerance ±0.05mm           PTH:±0.076MM     NPTH:±0.05mm
Mini hole ring (single 0.075MM 0.05MM
OutLayer Copper Thickness 17um--175um 175um--210um
InnerLayer Copper Thickness 17um--175um 175um--210um
Mini Solder Mask Bridge 0.05mm 0.025mm
Impedance Control Tolerance ±10% ±5%
Surface Finishing HASL, Lead free HASL, Immersion gold, Immersion tin, Immersion Silver.
Plated gold , OSP, Carbon ink,
Acceptable File Format ALL Gerber Files,POWERPCB,PROTEL,PADS2000,CAD,AUTOCAD,ORCAD,P-CAD,CAM-350,CAM2000 etc.
Quality Standards IPC-A-600F and MIL-STD-105D CHINA GB<4588>



PCBA Capacity



    Stencil Size

   736x736mm
   Minimum IC Pitch    0.2mm
   Maximum PCB size    510X460mm
   Minimum PCB thickness    0.5mm
   Minimum chip size:    0201 (0.2x0.1)/0603 (0.6 x 0.3mm)
   Maximum BGA size:    74x74mm
   BGA ball pitch:    1.00mm (minimum), 3.00mm (maximum)
   BGA ball diameter:    0.40mm (minimum), 1.00mm (maximum)
   QFP lead pitch:    0.38mm (minimum), 2.54mm (maximum)
   Machine Type    Panasonic CM 402
   Panasonic DT301
    Panasonic CM 402    patch speed:0.06sec/ chip (up to 60,000cph)
   Patch precision:±0.03~±0.005mm
   PCB size:max:510X460mm,min:50X50mm
   element size: 0603mm-50X50mm
   Panasonic DT301     patch speed:0.7sec/ chip
    Patch precision:±0.03~±0.005mm
    PCB size:max:510X460mm,min:50X50mm
    element size: 1005mm-100X90mmX25mm  high speed multifunctional mounter
   Volume:    One piece to low volume production quantities
   Low cost first prototype Fab
Fast deliveries
   Assembly type:    SMT assembly
   DIP assembly
   Mixed(surface mount and through hole) technology
   Cable assembly
   Components type:    Passive components
   As small as 0402 package
   As small as 0201 with design review
   Ball Grid Arrays(BGA):
   As small as .5mm pitch
     Component source    Shar,poshiba, ST,
   Samsung, Infineon, Ti,
   ON,Microchip etc.
   Parts procurements:    provide one-stop services
   Only Assembly service (you supply the parts)
   You supply some parts(expensive/important components), we do the rest
   Solder type:    Leaded
   Lead-free/ROHS compliant
   Other capabilities:    Repair/rework services
   Mechanical assembly
   Box build
   Mold and plastic injection.
    Testing Type      First prototype test before mass quantity production
     AOI
     BGA X-ray
     PCB E-test
Lead time   According Digikey components delivery time


OEM Manufacturer FR4 94v0 Car GPS Tracker PCBAOEM Manufacturer FR4 94v0 Car GPS Tracker PCBAOEM Manufacturer FR4 94v0 Car GPS Tracker PCBAOEM Manufacturer FR4 94v0 Car GPS Tracker PCBAOEM Manufacturer FR4 94v0 Car GPS Tracker PCBA

FAQ



A1.What is needed for PCB PCBA quotation?

  • PCB: Quantity, Gerber file and Technic requirements(material,surface finish treatment, copper thickness,board thickness ,...)
  • PCBA: PCB information, BOM, (Testing documents...)

A2. What file formats do you accept for PCB PCBA production?

  • Gerber file: CAM350 RS274X
  • PCB file: Protel 99SE,  P-CAD 2001 PCB
  • BOM: Excel (PDF,word,txt)

A3. Are my files safe?

       Your files are held in complete safety and security.We protect the intellectual property for our customers in the whole process.. All documents from customers are never shared with any third parties.

A4. MOQ?

      We are able to handle Small as well as large volume production with flexibility.

A5.Shipping cost?

       The shipping cost is determined by the destination, weight, packing size of the goods. Please let us know if you need us to quote you the shipping cost.

A6.Component source?

           We will use all original if no permission

OEM Manufacturer FR4 94v0 Car GPS Tracker PCBAOEM Manufacturer FR4 94v0 Car GPS Tracker PCBA
