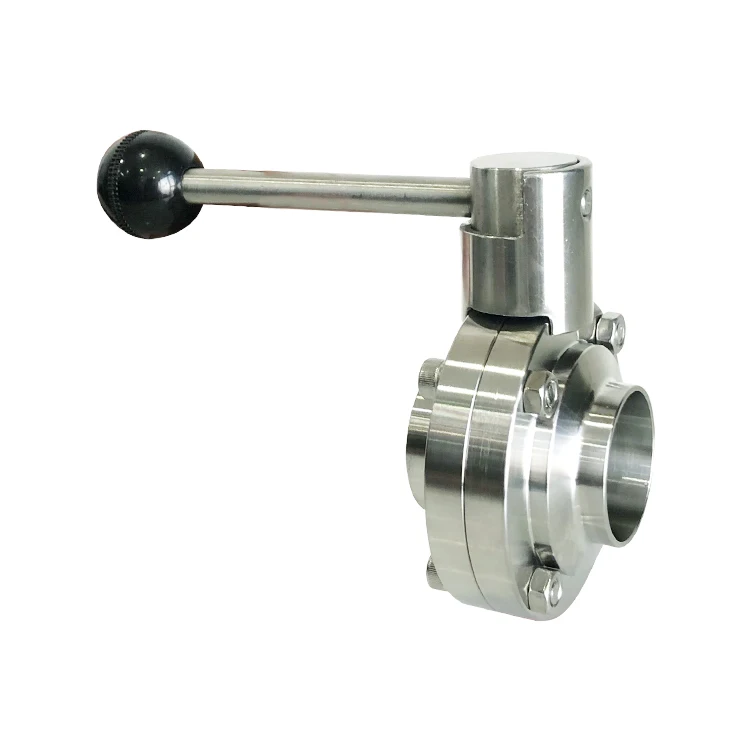

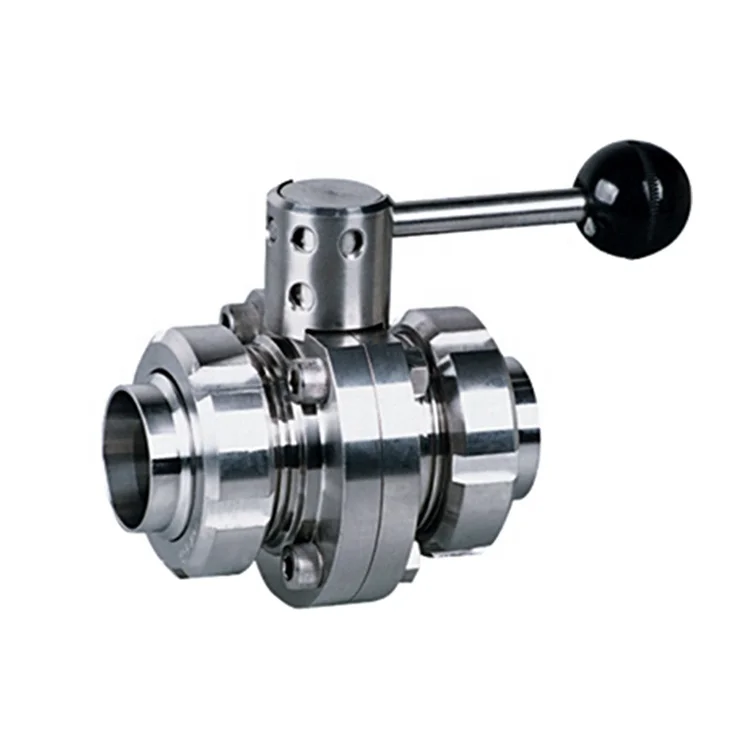

Custom Private Label Automated Butterfly Type Ball Valve Sanitary Stainless Steel 316L 304 Industrial Valves
Other recommendations for your business
Contact us
Quik Detail
| application | General |
|---|---|
| port size | 1/2"-4", DN10-DN100 |
| warranty | 1 year |
| place of origin | Jiangsu, China |
| model number | BV-05 |
| power | Manual |
| temperature of media | Max 150℃/302℉ to meet the CIP/SIP |
| type | Butterfly Valves |
| brand name | JG |
| structure | BALL |
| media | Liquid |
| customized support | OEM |
| Standard or Nonstandard | Standard |
| Item | Sanitary stainless steel butterfly type ball valve |
| Body material | Stainless Steel 304/316L |
| Seal | PTFE |
| Connection | Thread, flange, welding, clamp |
| Standard | DIN, SMS, ISO, 3A, RJT |
| Controlling | Manual, electric, pneumatic, automatic |
| Type | Butterfly type ball valve |
| Certificate | ISO9001 |
| Size | Standard Size/OEM |
Product Detail
Application
Technical specifications
Max.pressure: 10bar 1/2"-12", DN10-DN300 / 5bar(DN200/300)
Min.pressure: 0.2bar p.abs
Operating temperature: -10°C +120°C ( EPDM )
Connection: weld, clamp, thread, flange, etc
Size: DN10-DN300, 1/2"-12"
Standards: DIN, SMS, RJT, 3A, ISO, IDF
Design
Disc: AISI 316L/304(forged)
Valve body: AISI 316L/304(forged)
Washer and gasket: EPDM conforms to PFA 177.2600
Hande: AISI 304/PP
Surface finishing: Ra < 0.8
Features
Compact and robust design
Multi-position handle: Plastic type for 1/2"-4", stainless steel type for 1/2'-6"
Pull handle, is suitable up to DN25-1 to DN300-12 valve
Manual handle, pneumatic and electric actuator can be exchangeable with each other
PED97-23EC
The valve body can be changeable with any kind of connection
Widely used in food, beverage, pharmaceutical, bioengineering, water treatment, daily chemical, petroleum and chemical industries.
Tank
Pump
Mixer
Valve
Pipe Fitting
Filter
How long have you worked in this field?
Over 15 years.
Can your factory supply samples with free if we need?
Yes, we can.
Can your factory produce products according to our drawings or samples?
Yes, of course we can
What is your factory's biggest advantage?
Technology is our core competitiveness.
How about the delivery time ?
Standard products will be 10-15 days after receive your down payment or full payment.
Are you manufacturer or trading company?
We are a professional manufacturer.
