Cutter Hard Bucket Diaphragm Wall Grab Bore Pile Piling Buckets Portable Well Crawler Rock Water Hydraulic Rotary Drilling Rig

      Unicorn Drill Drilling Bucket & Core Barrel adopt the high-carbon steel (Q345B, 16Mn, Q195-Q345, etc.) and special drilling bits (B47K20H, B47K19H, B47K17H, 3050, 3060, 3065,C30, C31HD, B85, B43H,18TL, 18HD, 25VIP, 18VIP,  25T, 25HD, 22T,833-18,855 25,18PN/LK,25PN/LK ) angle to keep the drilling strength and efficiency.

 Purchase the standard drilling buckets.

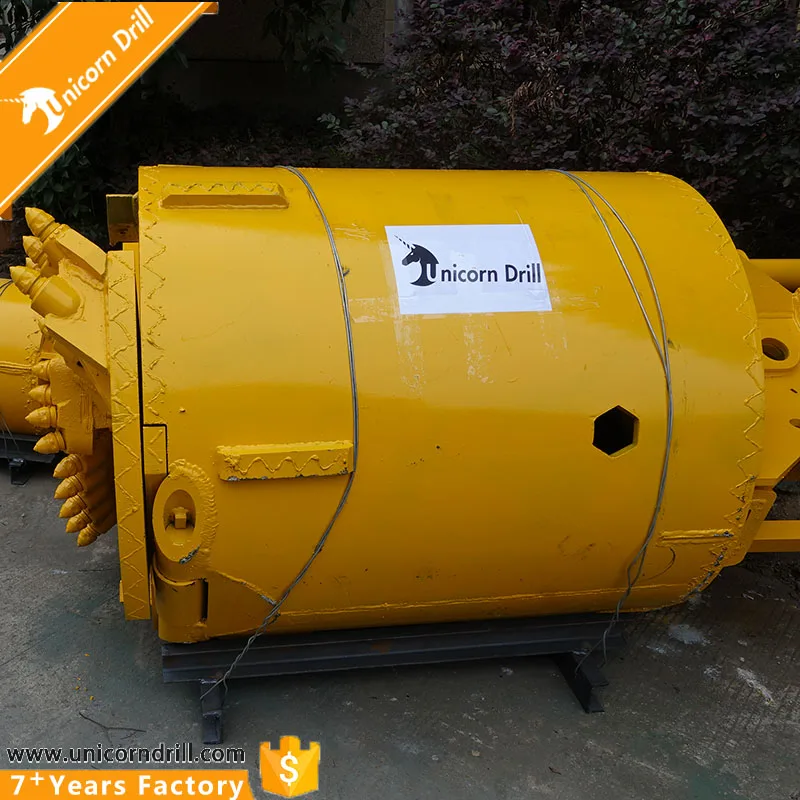

1) Clay Drilling Buckets

    Applicable layers: clay, silt and loose to medium dense sand and gravel, up to coarse gravel. Double cut soil buckets is recommended in cased/uncased and for bigger diameter piles.

    Features: Cylindrical barrel or conical barrel(optional).

                     Throughout ventilation hole.

                     Hard facing strips for wear protection.

                     Kelly box: 130*130 ,150*150,200*200 or as required (optional).

CLAY DRILLING BUCKETS TECHNICAL DATA

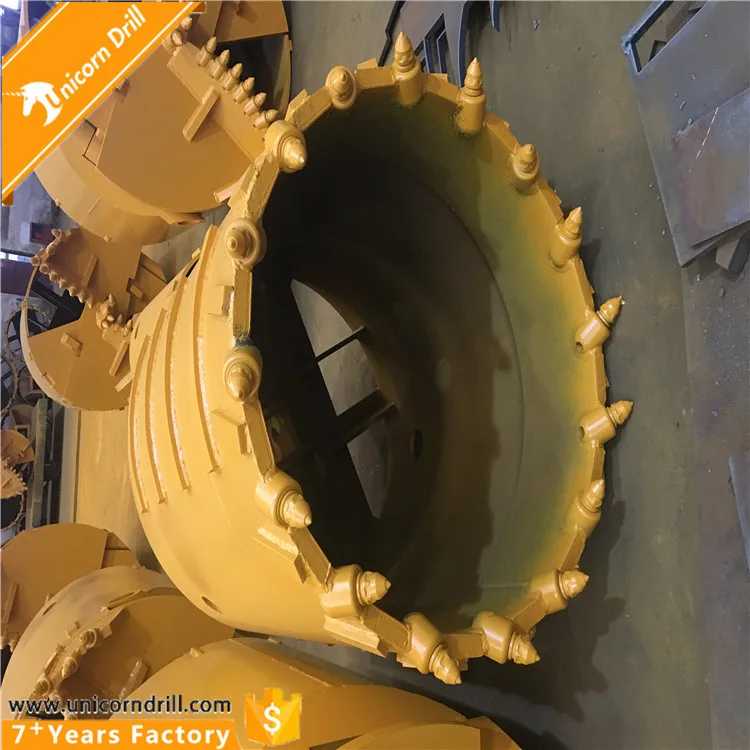

2)Rock Drilling Buckets

    Applicable layers: very dense sand, gravel and medium hard rocks and up to corse gravel, etc..Double cut rock bucket is recommended in uncased bores or for the bigger diameters and for scant pile walls.

    Features: Cylindrical barrel or conical barrel(optional).

                     Throughout ventilation hole.

                     Hard facing strips for wear protection.

                     Sturdy and wearable rock pilot for accurate positioning.

                     Kelly box: 130*130 ,150*150,200*200 or as required (optional).

ROCK DRILLING BUCKETS TECHNICAL DATA

Customized your own drilling buckets

(1). Kelly Box: design various type and size 130*130, 150*150,200*200 or as required.

(2).Shell Height: design as demand, according to the piling diameter and soil condition prolong or shorten, increase of efficiency by drilling more.

(3).Cutter: single cutter or double cutter and single bottom or double bottom design as demand;

(4).Bottom Open Mechanic : half-automatic or manul mechanic bottom open system.

(5).Model of Teeth:

Rock Bits:B47K20H, B47K19H, B47K17H, 3050, 3060, 3065,C30, C31HD, B85, B43H,etc..

Clay Teeth:18TL, 18HD, 25VIP, 18VIP,  25T, 25HD, 22T,833-18,855,etc..

Related Products

At A Glance

    Unicorn Drill is a company dedicated to the designing and manufacturing of drilling tools and tailor-made Kelly Bars for pilling rigs in China since 2011. When Unicorn Drill decide to create the world class drilling tools, we have already clearly in mind the outline of business plan: to become the benchmark in the production of tools and to let the whole industry been impressed by China manufacturing.

    At Unicorn Drill, our mission is to meet the needs and wants of our customers by providing the high-performance drilling tools and exceptional service through a team with unique technic and character.

Our Products

    In the foundation engineering field of pilling, and accessories for rotary drilling rig , as well as soil investigation, we currently supply: drilling buckets, drilling augers,continue flight auger, drilling bits,  drilling teeth, tailor-made kelly bar, casing tube, casing drive, casing shoe, casing teeth, casing oscillator, tremie pipe, pile breaker.

Quality Control

    A good production project starts from supply for raw material; the skills and the human resources are the “treasure” of our company. The Unicorn Drill begins to develop a precise structure, a strong aptitude for technological innovation, the enhancement of human capabilities, upgrading and international. The team today is a very dynamic group, consolidated in the wide range of products and constantly looking for new solutions to the increasingly complex challenges faced by civil engineering worldwide.

1.100% Inspection before shipment.

2. Wrapped with plastic film.
3. Fixed with iron support, wheel or pallet when necessary.
4. Packed with plastic cases and wooden cases for drilling bits, clay teeth.
