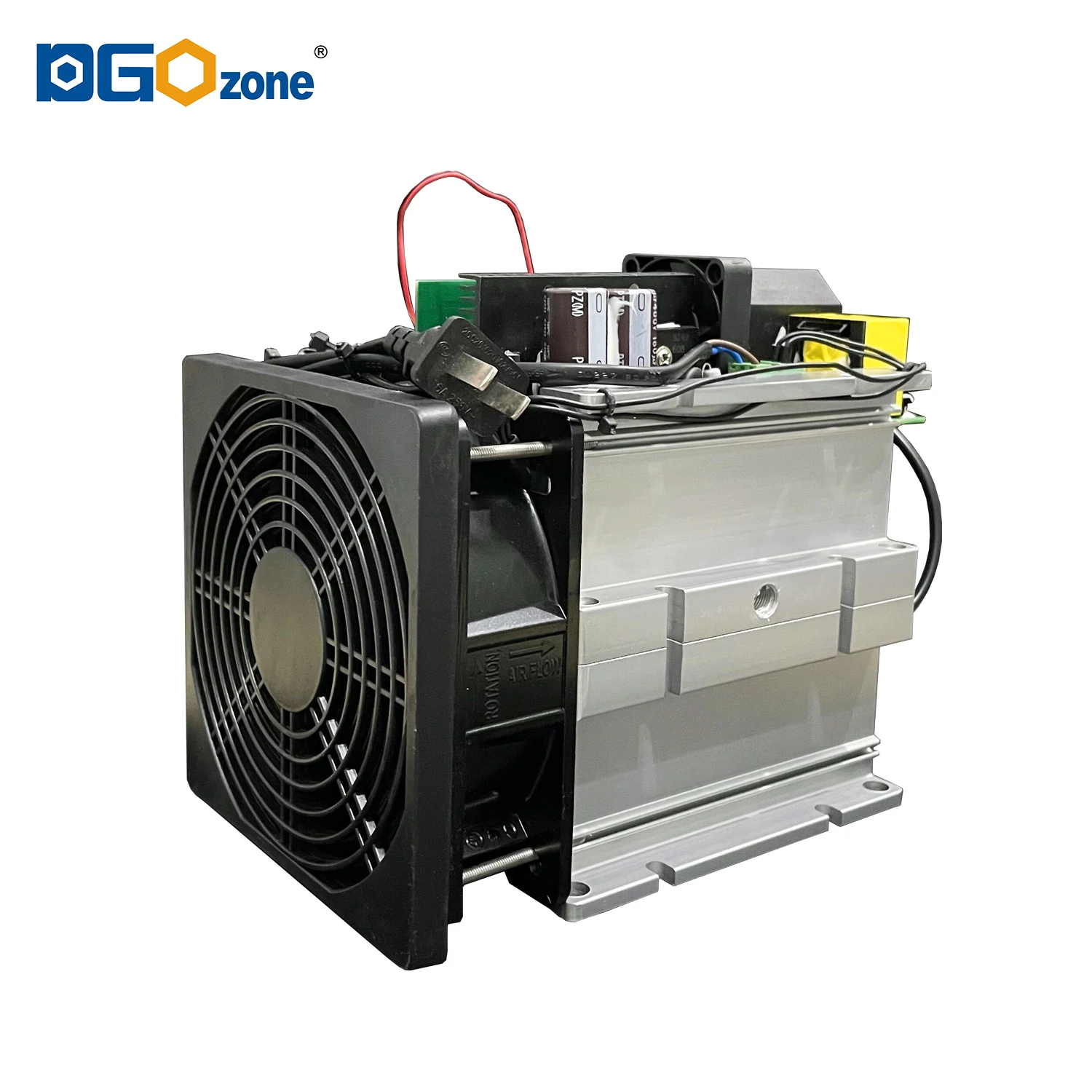

DGOzone 25g/h air Cooling Ozone Generator HIGH CONCENTRATION Integrated Ceramic Panel Ozonator for Pools Water Treatment
Other recommendations for your business
Contact us
Quik Detail
| video outgoing-inspection | Provided |
|---|---|
| machinery test report | Provided |
| core components | Ceramic Panel |
| place of origin | Shanghai, China |
| brand name | DGOzone |
| warranty | 1 Year |
| productivity | 25g/h |
| weight (kg) | 6 kg |
| Oxygen (m3/h) | 0.3 |
| Input Voltage | 220V/110V 50/60HZ |
| Ozone Concentration(mg/L) | 100~158 |
| Ozone Output (g/h) | 25±10% |
| Cooling method | Air cooling |
| Input O2 pressure | 0.15Mpa(dewpoint: -50 ℃) |
| Condition | New |
| Applicable Industries | hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company |
| Showroom Location | None |
| Marketing Type | New Product 2022 |
| Warranty of core components | 1 Year |
| Material | stainless steel |
| Weight | 12 kg |
| Size | 160*200*250mm |
| Power | 0.7 |
Product Detail
25g/h Module integrated panel ozone generator for water treatment
Module integrated panel ozone generators use the original panel electrode discharge chamber structure, can achieve 0.10mm or less narrow discharge gap, thus greatly improving the efficiency of ozone generation and achieving better energy savings. The capacitive tolerance between each discharge cell is very small, so the load distribution is consistent, the output deviation does not exceed 3%. In addition, the structure of the panel electrode discharge chamber can realize the non-pressure vessel design, and further ensure the safety of the product, which cannot be achieved by the tube electrode structure.
Specifications
Item/Model | KHB-25GFOA2/A1 |
Input Voltage | 220V/110V 50/60HZ |
Oxygen (m3/h) | 0.3 |
Ozone Concentration (mg/L) | 100-158 |
Ozone Output (g/h) | 25 |
Ozone power matching | 200W IGBT Power |
Ozone Unit Size | 140*180*220mm |
Cooling method | Air Cooling |
Purification ability | 12 M3/H water when feeding oxygen; 2-3 M3/H water when feeding dry air |
Test conditions | 1. Using the ultraviolet absorption method to test the ozone output and concentration. 2. Oxygen purity: >95%, Dew point: >-50℃. |
Attention must be paid to the following
(1). This efficient panel ozone generator needs 75-100% dry oxygen as air source. All the data is based on 99% pure oxygen, Dew point >-40℃.
(2). The recommended oxygen input pressure is 0.1-0.15 Mpa.
(3). When installing the ozone panle, it is recommended to install it vertically.
(4). Cooling water flows in from the down, and out from up.
(5). Oxygen flows in from the UP, and ozone out from the down.
(6). Ozone outlet is recommended to install a throttle valve to maintain the same pressure of the input air and the output air in the discharge chamber. When discharge chamber gas density or gas flow is too small, without throttle valve ozone production will be less.
(7). High-voltage wire of power supply needs to connect with the high-voltage of discharge panel, and insulation treatment is necessary.
(8). The ground electrode of power supply needs to connect with the discharge panel shell, and grounding treatment is necessary.
(9). When the gas flow meter is installed after the intake pressure-relief valve and before the discharge panel, the mathematical relationship between the standard data of the flow meter and the working conditions data is V1 = V2 * , where P is the multiple of discharge chamber pressure and atmospheric pressure, V1 is the working conditions data, V2 is the standard data of the flow meter.
(10). When gad flow meter is installed after the throttle valve on the ozone outlet, the flow meter outlet goes directly into the atmosphere, the standard flow is equal to its reading.
25G ceramic panel ozone generator units used in portable ozone machine
Suitable 5LPM Integrated Double Tower Oxygen Generator and Air Compressor
