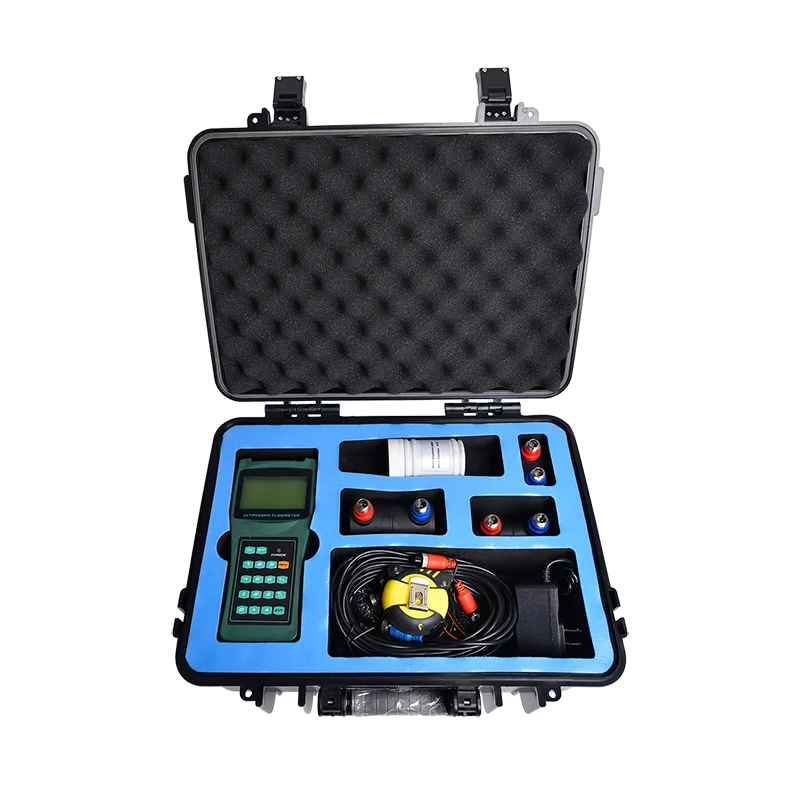

Digital Portable Flow Meter Ultrasonic Flowmeter

1 set(s)Minimum order
warranty:
1 year
customized support:
OEM, ODM, OBM
place of origin:
Henan, China
brand name:
Q&T
model number:
QTDS
type:
Variable Area Water Flowmeters
Privacy Policy: Samples are free within a certain price range

Contact us

Send Inquiry

Quik Detail

warranty

1 year

customized support

OEM, ODM, OBM

place of origin

Henan, China

brand name

Q&T

model number

QTDS

type

Variable Area Water Flowmeters

Name

Digital portable flow meter ultrasonic flowmeter

Size

M

Medium

Virtually most liquids

Accuracy

1%

Medium Temperature

<160 C

Output

4~20mA,Pulse,OCT etc

Display

Instantaneous flow,percentage flow,flow rate,total flow etc.

Repeatability

Better than 0.2% of reading

Power Supply

90~220VAC and Built-in battery (can work 12 hours)

Protection

IP67

Certification

CE

Product Detail



 Digital portable flow meter ultrasonic flowmeter


Application:

The ultrasonic flow meter is designed to measure the fluid velocity of liquid within closed conduit. The transducers are a non-contacting, clamp-on type, which will provide benefits of non- fouling operation and easy installation.

Features:

0.5% of linearity 0.2% of repeatability
Bilingual interface in Chinese and English 4-way flows totalizers
Transmission and receipt patents of balanced lower-voltage and multi-pulse Built-in date totalizers
Built-in data logger Good anti-interference performace
0.5 second totalizing period 100 Pico-second resolution of time difference measurement




Linearity 0.5%
Repeatability 0.2%
Accuracy ±1% of reading at rates>0.2mps
Response 0-999 seconds
Velocity ±32m/s
Pipe Size 15mm-6000mm
Rate Units Meter,Feet,Cubic Meter,Liter,Cubic Feet,USA Gallon,UK Gallon,
Oil Barrel,USA Liquid Barrel, UK Liquid Barrel;
Totalizer 7-digit totalizers for net accumulation and positive and negative accumulations
Liquid Types all liquids
Security Locks of Set values, you have to unlock while changing data;
Display 4x8 Chinese or 4x16 English letters
Communication Interface RS-232C,baud-rate :from 75 to 57600.Protocol made by the
manufacturer and compatible with that of the FUJI ultrasonic flow meter.
Transducers Model M1 for standard,other 3 models for optional
Transducer Cord Standard 2x5 meters,optional 2x10 meters
Power Supply 3AAA Ni-Hbuilt-inbatteries.When fully rech arged it will lastover 10 hours of operation.
100V-240VAC for the charger
Data Logger Built-in data logger can store over 2000 lines of data
Manual 7-digit press-key-to-gototalizer for calibration
Housing ABS

V-method Installation

V-method installation is the moswidely used mode for daily measurement with pipe inner diameters ranging from 15 millimeter to 200 millimeter. It is also called reflective mode or method.

Z-method Installation

Z-method is commonly used when the pipe diameter is between 300 millimeters and 500 millimeters.

W-method Installation

W-method is usually used on plastic pipes with a diameter from 15 millimeters to 100 millimeters
