DN15~DN6000 Anti-Corrosion Smart Display Accurate Handheld Flowmeter Water Beer Milk Oil Sewage Portable Ultrasonic Flowmeter
Other recommendations for your business
Contact us
Quik Detail
| warranty | 2 Years |
|---|---|
| customized support | OEM, ODM, OBM, Software reengineering |
| place of origin | Henan, China |
| Flow Rate | 0-15M/S |
| brand name | JUNYUAN |
| model number | JYTUF2000H |
| Measurement Range | DN15-DN6000 |
| accuracy | ±1% |
| type | Variable Area Water Flowmeters, Variable Area Petrolum Flowmeters, Variable Area Oil Flowmeters |
| material | ABS |
| Medium | Water, Oil, liquid, acids, corrosive liquid, Liquid |
| Product Name | Handheld Water Flow Meter Portable Ultrasonic Flow Meter |
| Pipe Size | DN15-DN6000 |
| Fluid temperature | -30---160℃ |
| Accuracy | Batter than ±1% |
| Connection | Clamp on |
| Power supply | AC90-260V |
| Output | 4--20mA;OCT;RS232/RS485 |
| Display | LCD |

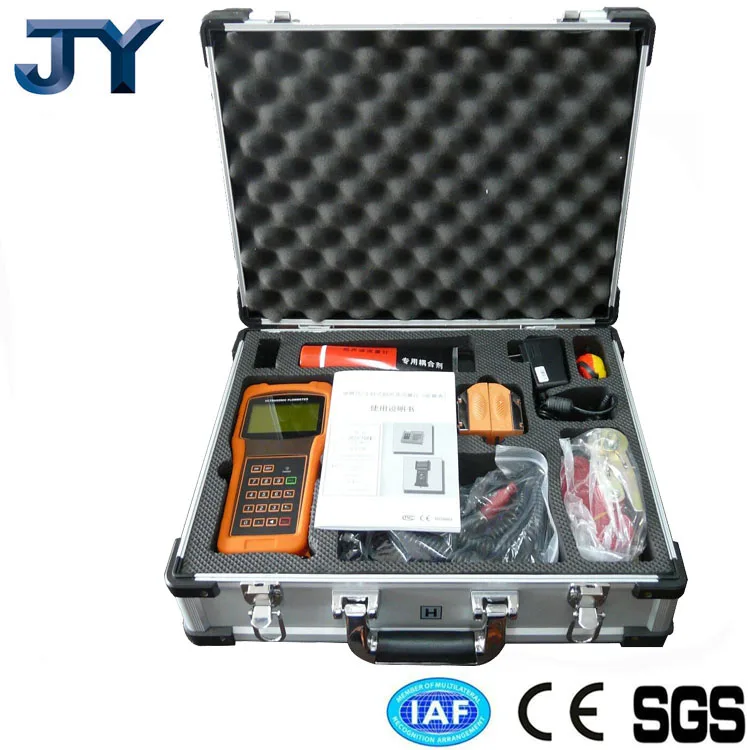

| Packing | Aluminum alloy box |
Product Detail

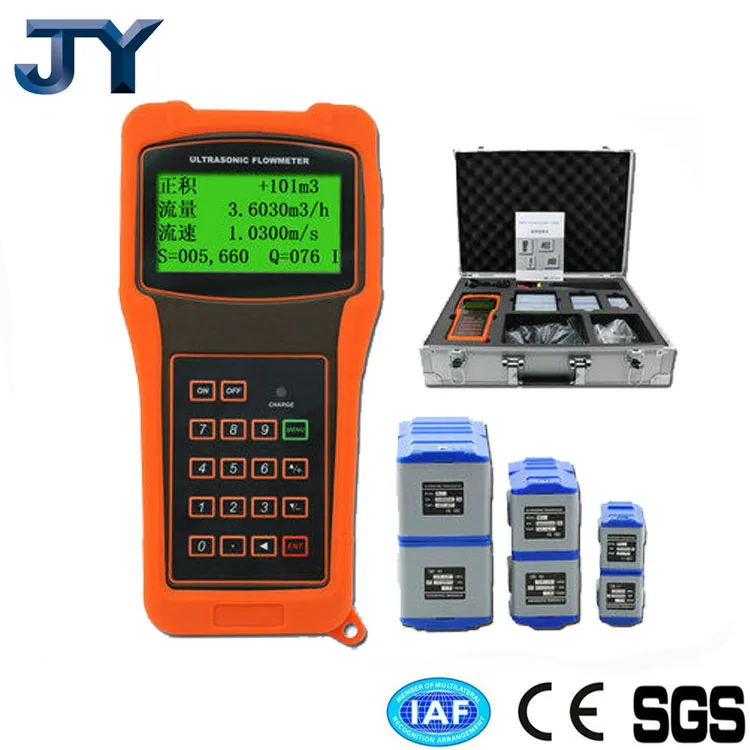

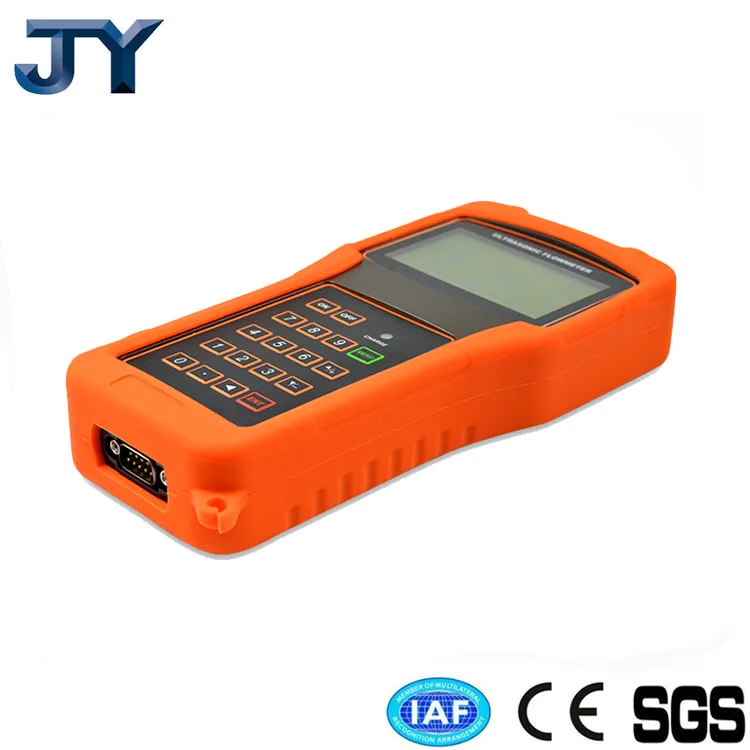

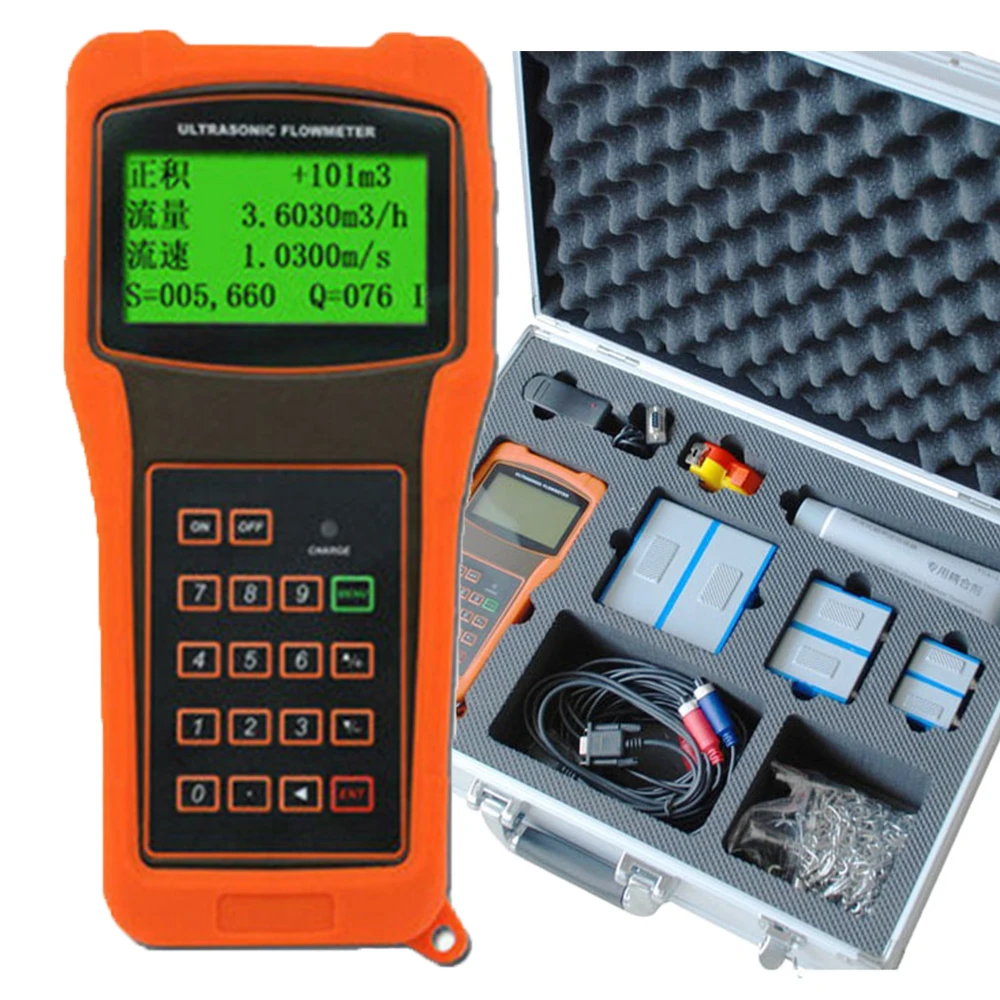

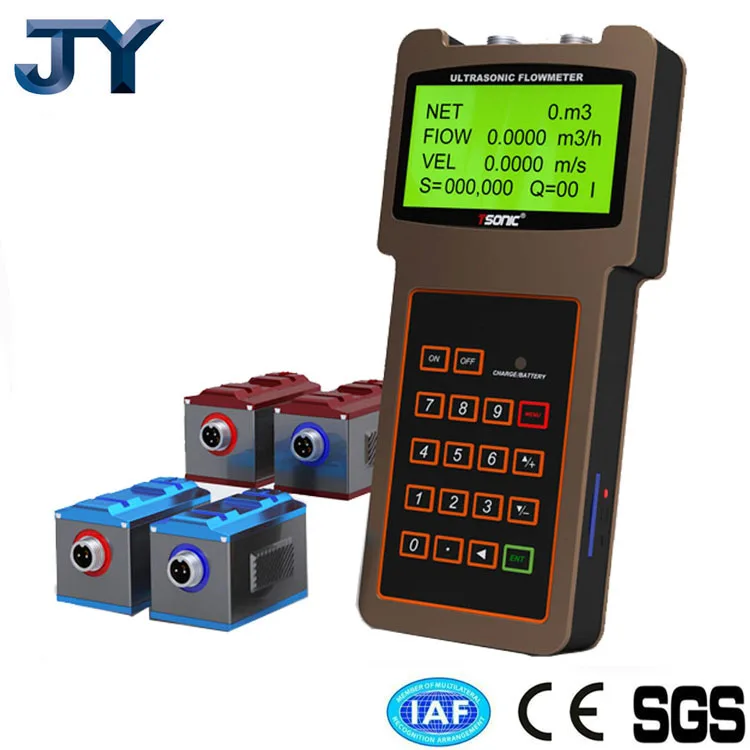

TUF-2000H HANDHELD PORTABLE ULTRASONIC FLOW METER
TUF-2000H Handheld ultrasonic flow meters enable non-contact measurement of liquid flow. The sensor is installed on the outer wall of the pipe to complete the measurement of the flow. It has the characteristics of small size, convenient carrying and accurate measurement.
1.Highly accurate,1%
2.Liquid need not be conductive.
3. One unit can measure flow in different diameter sizes(DN15-DN6000).
4.Can be fitted in complicated pipe lines since flow path straightening requirement is minimal.
5.Small size and easy to carry.
6.Easy installation and reduced installation time.
7.No need for short tube shutoff, no pressure loss.
8.Built-in 32K memory,Can store 2000 lines of measurement data
Other outstanding features:
----the signal receiving circuits feature self-adapting performance so as to ensure that the user can easily operate the instrument without any adjustment.
----the built-in rechargeable Ni-MH battery can work continuously for more than 12 hours without recharging.
JY-TUF2000H flow meter incorporates the latest ICs manufactured from the famous semiconductor manufacturers like Philips, Maxim, TI, Win bond, and Xilinx. The hardware features the ease of operation, high accuracy and outstanding reliability, while the software provides a very friendly user interface and much more functions. It employs a patent balanced lower voltage multi-pulse igniting circuit which increases the anti-interference ability magnificently so that the flow meter will work properly even in demanding industrial environments such as those with power frequency transverter working nearby.
|
Linearity |
0.5% |
|
Repeatability |
0.2% |
|
Accuracy |
±1% of reading at rates>0.2 mps |
|
Response Time |
0-999 seconds, user-configurable |
|
Velocity |
±32 m/s |
|
Pipe Size |
15mm-6000mm |
|
Totalizer |
7-digit totals for net, positive and negative flow respectively |
|
Liquid Types |
Virtually all liquids |
|
Security |
Setup values Modification Lockout. Access code needs unlocking |
|
Display |
4x8 Chinese characters or 4x16 English letters |
|
Communication Interface |
RS-232, baud-rate: from 75 to 57600. Protocol made by the manufacturer and compatible with that of the FUJI ultrasonic flow meter. User protocols can be made by user requirements |
|
Transducer Cord Length |
Standard 5m x 2, optional 10m x 2 |
|
Power Supply |
3 AAA built-in Ni-H batteries. When fully recharged it will last over 12 hours of operation. 100V-240VAC for the charger |
|
Data Logger |
Built-in data logger can store over 2000 lines of data |
|
Manual Totalizer |
7-digit press-key-to-go totalizer for calibration |
|
Housing Material |
ABS |
|
Case Size |
210x90x30mm |
|
Unit Weight |
500g with batteries |
