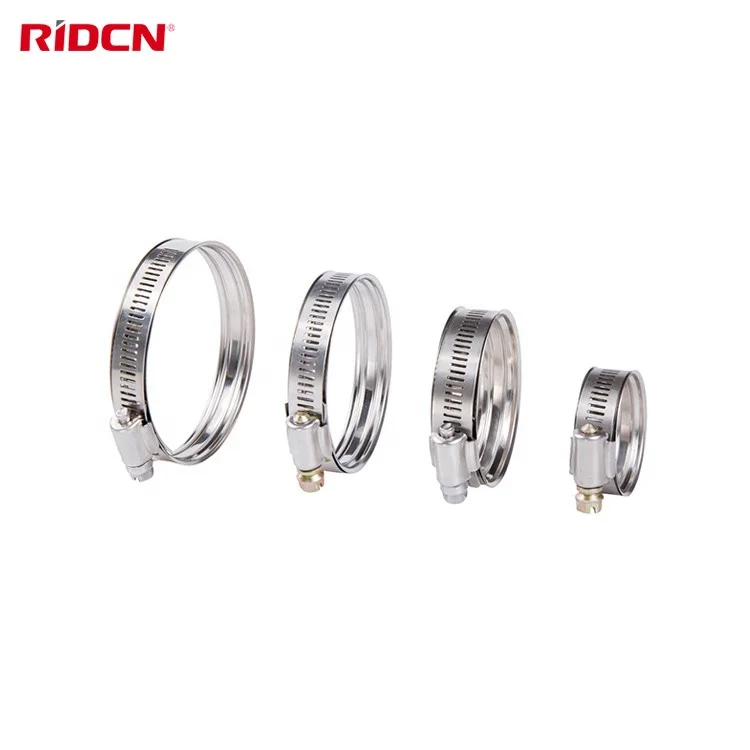

Dual Bead Worm Gear Clamp SS304 Perforated 1/2 Inch Band America Stainless Steel Hose Clamp Metric System Pipe Clamp
500 piece(s)Minimum order
measurement system:
INCH, Metric
place of origin:
Zhejiang, China
brand name:
RIDCN
material:
Stainless Steel
Surface Treatment:
Plain
Usage:
Pipe Clamp
Privacy Policy:
Samples are free within a certain price range
Other recommendations for your business
$1.80
10 pieces (MOQ)
Contact us
Quik Detail
| measurement system | INCH, Metric |
|---|---|
| place of origin | Zhejiang, China |
| brand name | RIDCN |
| material | Stainless Steel |
| Surface Treatment | Plain |
| Usage | Pipe Clamp |
| Structure | T Clamp |
| Size | Customized Sizes Acceptable |
| Material Choice | SS316/SS304/SS201 |
| OEM | Warmly Welcomed |
| Sample | Availble |
| Standard or Nonstandard | Standard |
Product Detail
- Material: band and housing are 304 stainless steel
- Band Width:12.7mm(1/2 inch)
- Band Thickness: 0.5mm/0.6mm/0.7mm
- Screw: 8mm(5/16 inch) slotted hex head screw (zinc-plated steel, 304 stainless steel and 410stainless steel are optional)

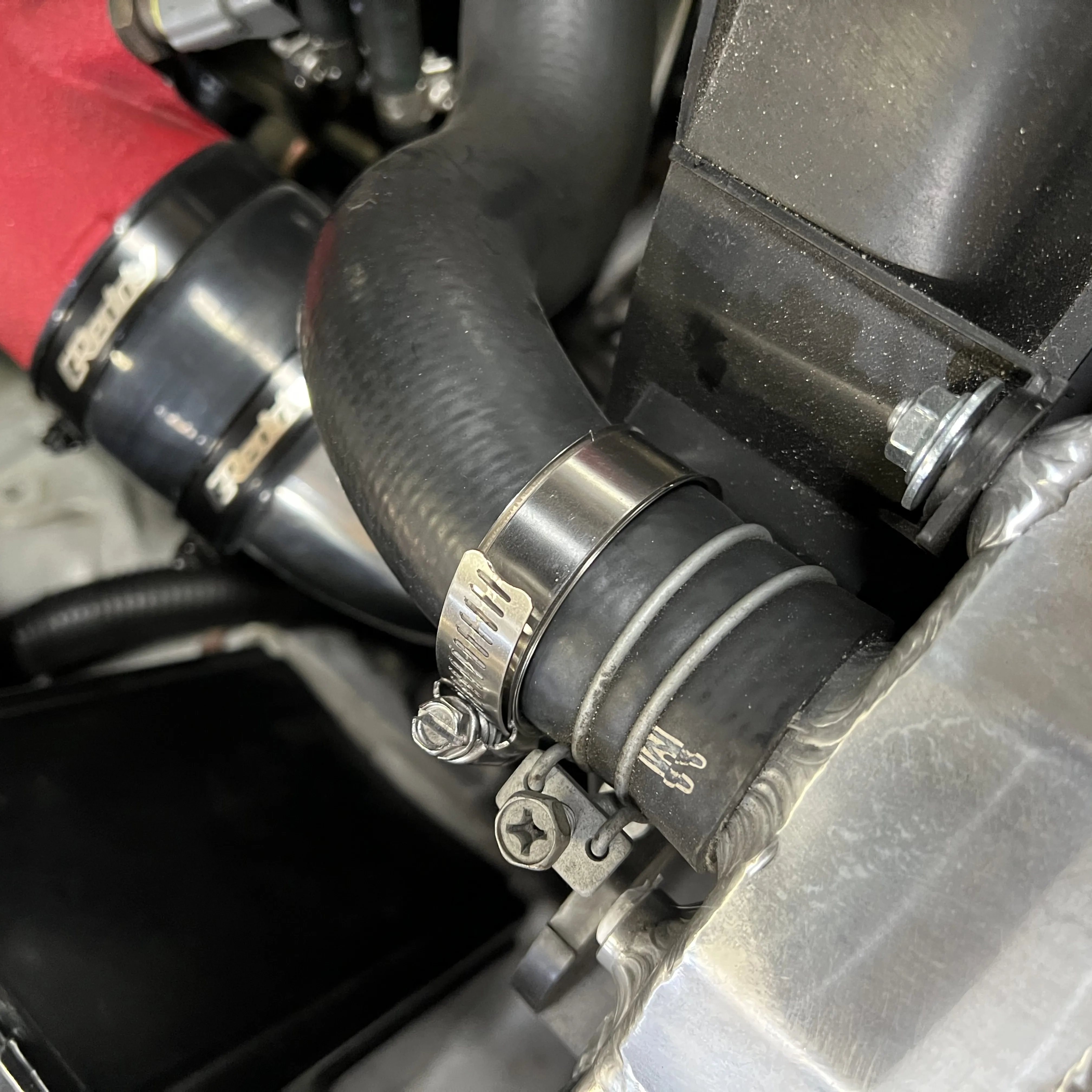

- Features: Based on the general purpose worm drive hose clamp, the inner shield can provide superb sealing characteristics and is safe for all soft hoses. It can be used in various fields, like automobile,industrial machine,marine, agriculture, construction,etc.
| Part NO. | Clamping Range | Bandwidth | Torque |
| (mm) | (mm) | (N.m) | |
| 39W | 26-39 | 12.7 | 9 |
| 56W | 39-56 | 12.7 | 9 |
| 59W | 42-59 | 12.7 | 9 |
| 65W | 48-65 | 12.7 | 9 |
| 75W | 58-75 | 12.7 | 9 |
| 85W | 68-85 | 12.7 | 9 |
| 95W | 78-95 | 12.7 | 9 |
| 105W | 85-105 | 12.7 | 9 |
| 120W | 100-120 | 12.7 | 9 |
| 140W | 120-140 | 12.7 | 9 |
| 170W | 150-170 | 12.7 | 9 |
| Note:We customize clamps according to your special requirements. Other sizes and alternate materials are also available. |
|||
