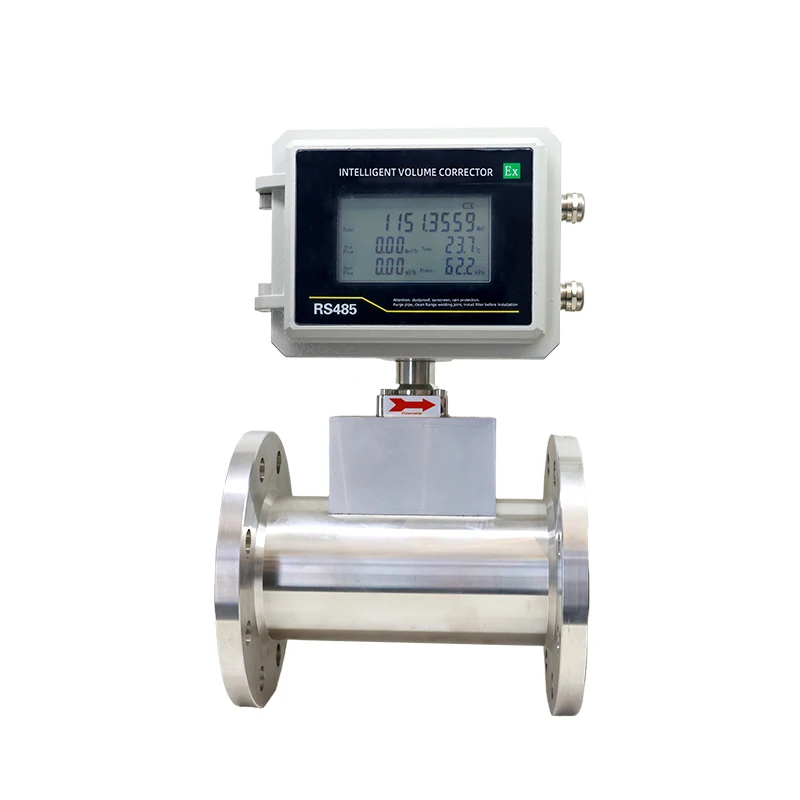

Explosion Proof Intelligent Liquefied Petroleum Gas Air Gas Flow Meter RS485 Gas Turbine Flowmeter
1 piece(s)Minimum order
warranty:
1 Year
customized support:
OEM, ODM, OBM, Software reengineering
place of origin:
Henan, China
brand name:
ZHONGAN
model number:
ZALD
type:
Turbine meters
Privacy Policy:
Samples are free within a certain price range
Other recommendations for your business
$420.00-450.00
1 piece (MOQ)
$189.00-229.00
1 piece (MOQ)
$220.00-240.00
1 piece (MOQ)
$175.00-210.00
1 piece (MOQ)
Contact us
Quik Detail
| warranty | 1 Year |
|---|---|
| customized support | OEM, ODM, OBM, Software reengineering |
| place of origin | Henan, China |
| brand name | ZHONGAN |
| model number | ZALD |
| type | Turbine meters |
| Measurement Medium | Water, oil, alcohols and other liquids (viscosity <5*10~6m2/S) |
| Diameter Range | DN4-DN200 (DN4-DN40 commonly used threaded connection) |
| Accuracy Level | Standard ±1%R; ±0.5%R (special customization) |
| Output Signal | Square wave pulse (voltage type), 4-20mA, 485 communication |
| Usage Environment | -20°C~60°C; 5%-90%RH |
| Connection Method | External/internal thread, flange, clamp |
| Communication Method | RS485 communication, MODBUS-RTU (intelligent type) |
| Material | Stainless steel 1CR18NI9T1 304, 316L (sanitary type) |
| Explosion-Proof Level | EXIA IICT4 (Intrinsic safety type) or EXIA II BT6 |
| Protection Level | IP65 (ordinary type) |
Product Detail
Gas Turbine Flow Meter | ||
Measuring Medium | Various gases (natural gas, compressed air, oxygen, nitrogen, coal gas, etc.) | |
Nominal Diameter | DN25~DN200mm (For more ranges, please contact our online engineers) | |
Accuracy Level | Grade 1.5 (preferred) | |
Nominal Pressure | 1.6MPa, 2.5MPa, 4.0MPa (For more ranges, please contact our online engineers) | |
Medium Temperature | .-20°C~+80°C | |
Ambient Temperature | .-30°C~+50°C; relative humidity: 5%~95% | |
Working Power Supply | 3.6V lithium battery; 24VDC | |
Output Signal | Three-wire pulse output, two-wire 4-20mA output | |
Communication Interface | RS485 | |
Protection Level | IP55, IP65 (For more ranges, please contact our online engineers) | |
Explosion-Proof Level | Exd II BT4, Exd II BT6 | |
Official Contact Info | Email: vip@zhongantan.com ; Tel/ Whatsapp/ Wechat: +86 13333858191 | |
