force sensor load cell 2 ton10Ton 20Ton 30Ton 50Ton compression sensor spoke load cell loadcell transducer
US $35.95-109.95 / piece
2 piece(s)Minimum order
Series:
HEAVY DUTY CYLINDRICAL LOAD CELL
Features:
HEAVY DUTY CYLINDRICAL LOAD CELL
Mounting Type:
THREAD HOLES
Description:
HEAVY DUTY CYLINDRICAL LOAD CELL, HTsensor
Model Number:
TAS602
Type:
force sensor, compression sensor
Privacy Policy:
Samples are free within a certain price range
Other recommendations for your business
$0.95-3.95
10 pieces (MOQ)
$0.50-10.00
20 pieces (MOQ)
Contact us
Quik Detail
| Series | HEAVY DUTY CYLINDRICAL LOAD CELL |
|---|---|
| Features | HEAVY DUTY CYLINDRICAL LOAD CELL |
| Mounting Type | THREAD HOLES |
| Description | HEAVY DUTY CYLINDRICAL LOAD CELL, HTsensor |
| Model Number | TAS602 |
| Type | force sensor, compression sensor |
| Place of Origin | Shaanxi, China |
| Brand Name | HT sensor |
| Use | automotive testing electronic weighing measurin |
| Theory | Resistance Sensor |
| Output | 2.0m V/V |
| Capacity | 1~30T |
| Material | alloy steel |
| Defend grade | IP67 |
| Function | force transducer |
| Excitation voltage | 10~15Vdc |
| Combined error | ± 0.03%FS |
| Application | electronic truck hopper scales in automotive testing |
Product Detail

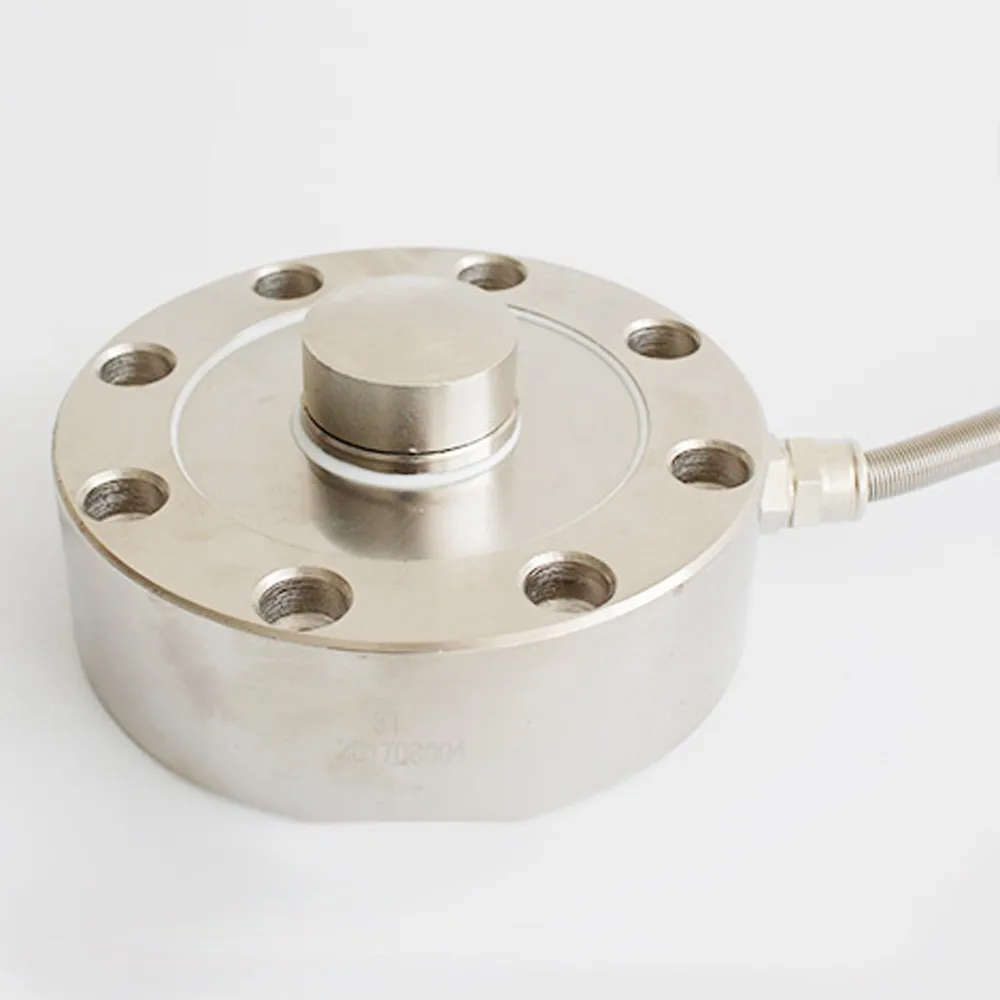

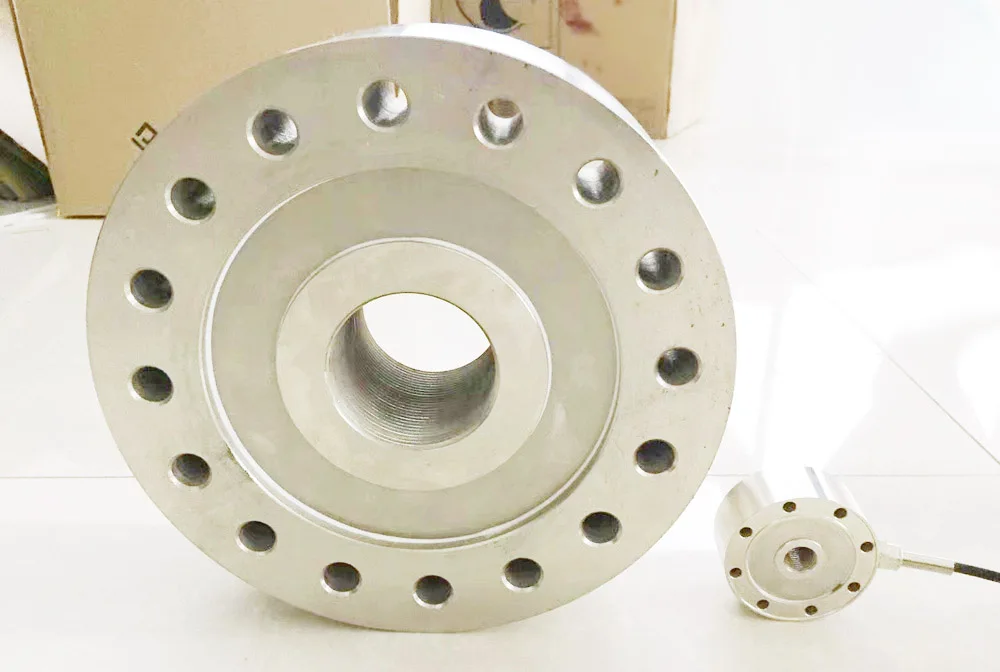

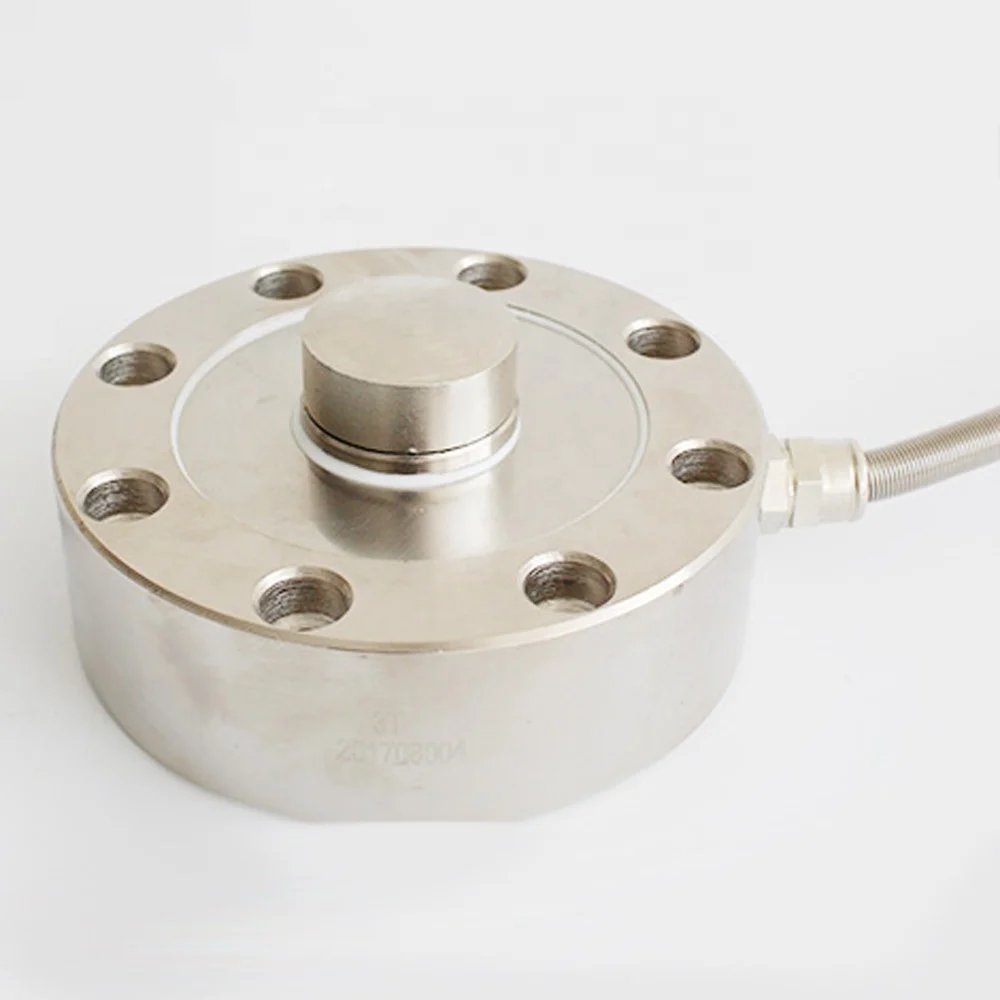

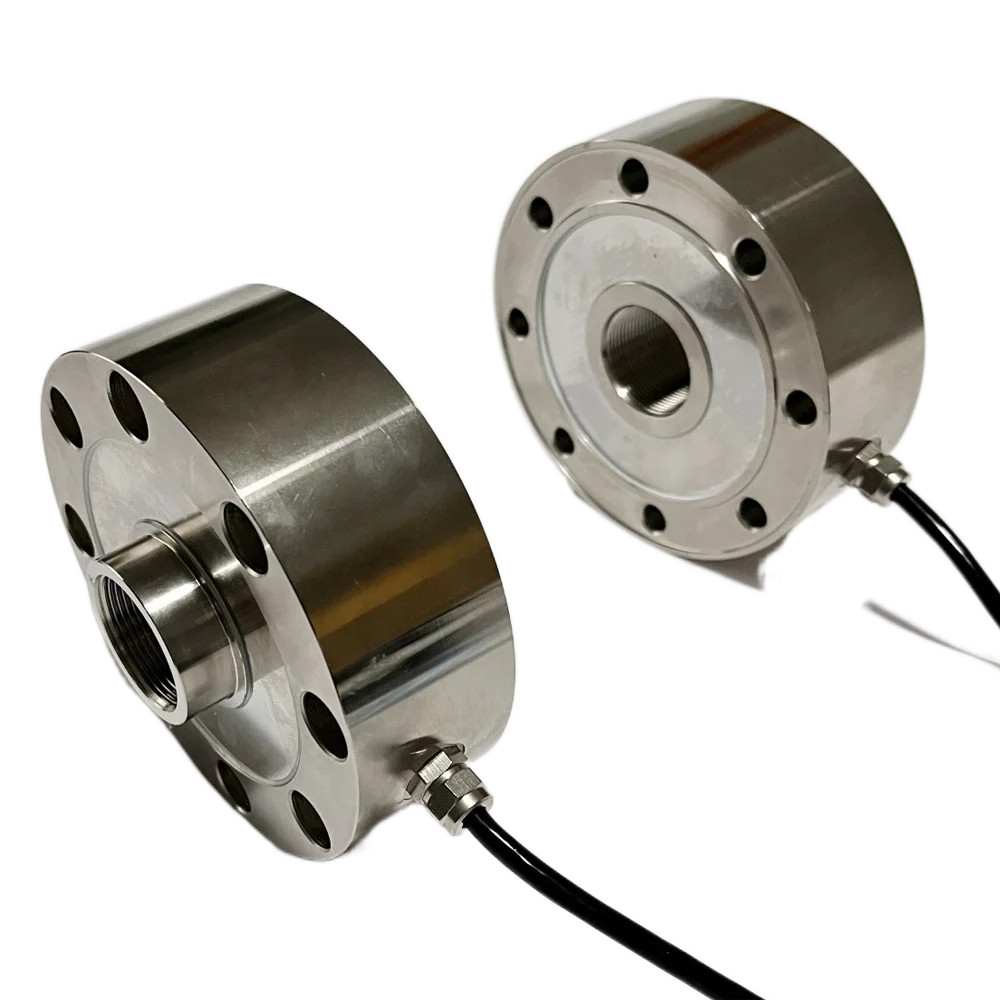

TAS602 SPOKE TYPE LOAD CELL
◆Capacity ：50kg~450Ton
◆Material: alloy steel
◆Type: spoke type
◆Defend grade: IP67.
◆Application: suitable for electronic truck scales hopper scales, automotive testing equipment other electronic weighing or force measuring fields.
Accessories 2
Suitable for capacity 50kg~450Ton
Accessries
Suitable for capacity 50kg~5Ton
Technical Specifications: | ||
Capacity: 50,500,1Ton,5Ton,10Ton,250Ton,300Ton,450Ton | Insulation resistance : ≥ 5000M Ω @ 50 Vdc | |
Rated output: 2.0 ± 0.2 mV/V | Operating temperature range: -35 ~ +65 ℃ | |
Combined error: 0.03%FS | Compensated temperature range: -10 ~ +40 ℃ | |
Zero unbalance: ± 1.0%FS | Temperature coefficient ofSPAN: ≤± 0.0175 %FS/10℃ | |
Non-linearity: ≤± 0.03 %FS | Temperature coefficient of ZERO: ≤± 0.020 %FS/10℃ | |
Creep: ≤± 0.03 %FS/30min | Excitation voltage: 5~15VDC | |
Input resistance: 750 ± 20 Ω | Cable: 4 core shielded PVC cable, 2m | |
Output resistance: 750 ± 5 Ω | Safe overload: 150%FS | |
Electrical connection: excitation(+):Red excitation(-):Black signal(+):Green signal(-):White | ||
We are a professional manufactory engaged in the development, sale and service of strain gauge, load cell, tension sensor, torque sensor, position travel sensor and proper instruments for electronic scales, factory automation and process control.
We have outstanding and experienced senior engineers with more than 20 years experience on the industry technology to support our customized service and help customers to get project solution.
In recent years, our factory has introduced a series of advanced equipment including CNC machine, Laser marking machine, calibration instrument and temperature testing chamber. In addition, the company obtained ISO 9001 :2015 certificates. All of our products pass the testing and obtain ROSH and CETest reports.
Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. Our products are selling well in all cities around China. Our sensors are also exported to clients across the globe, special for the countries as USA , Canada, Germany, Italy, Australia, Japan, South Korea etc.We are available to provide support for any product, service or inquiry.
We are located in Xi 'an China. Welcome you.
Sincerely hope to become your trusted partner.
