free shipping new raspberry pi 5 model b 4GB 8GB computer Original Raspberry Pi 5 development board mini board
US $55.00-95.00 / piece
3 piece(s)Minimum order
Series:
Raspberry Pi5
Description:
Raspberry Pi
Model Number:
Raspberry Pi5
Type:
Development Board
Place of Origin:
United Kingdom
Brand Name:
Raspberry Pi
Privacy Policy:
Samples are free within a certain price range
Other recommendations for your business
$25.00-42.00
1 piece (MOQ)
$125.00-160.00
1 piece (MOQ)
$30.00-90.00
1 piece (MOQ) Contact us
Quik Detail
| Series | Raspberry Pi5 |
|---|---|
| Description | Raspberry Pi |
| Model Number | Raspberry Pi5 |
| Type | Development Board |
| Place of Origin | United Kingdom |
| Brand Name | Raspberry Pi |
| D/C | Raspberry Pi |
| Package | Raspberry Pi, Original Package |
| Function | Raspberry Pi |
| Embedded | Raspberry Pi |
| Utilized IC / Part | Raspberry Pi |
| Number of A/D Converters | Raspberry Pi |
| Number of Bits | Raspberry Pi |
| Sampling Rate (Per Second) | Raspberry Pi |
| Data Interface | Raspberry Pi |
| Input Range | Raspberry Pi |
| Amplifier Type | Raspberry Pi |
| Output Type | Raspberry Pi |
| Max Output Power x Channels @ Load | Raspberry Pi |
| Voltage - Supply | Raspberry Pi |
| Board Type | Raspberry Pi |
| Main Purpose | Raspberry Pi |
| Outputs and Type | Raspberry Pi |
| Power - Output | Raspberry Pi |
| Voltage - Output | Raspberry Pi |
| Current - Output | Raspberry Pi |
| Voltage - Input | Raspberry Pi |
| Frequency - Switching | Raspberry Pi |
| Core Processor | Raspberry Pi |
| Operating System | Raspberry Pi |
| Platform | Raspberry Pi |
| Mounting Type | Raspberry Pi |
| Current - Output / Channel | Raspberry Pi |
| Features | Raspberry Pi |
| Channels per IC | Raspberry Pi |
| Regulator Type | Raspberry Pi |
| -3db Bandwidth | Raspberry Pi |
| Current - Supply (Main IC) | Raspberry Pi |
| Voltage - Supply, Single/Dual (±) | Raspberry Pi |
| Sensor Type | Raspberry Pi |
| Interface | Raspberry Pi |
| Sensitivity | Raspberry Pi |
| Module/Board Type | Raspberry Pi |
| Maximum Number Of IC's | Raspberry Pi |
| Maximum Time | Raspberry Pi |
| Sensing Range | Raspberry Pi |
| Product Name | Raspberry Pi5 |
| Quality | 100% Original New |
| Payment term | Trade Assurance TT \ TT \ Transferwise |
| Lead time | 5-7DAYS |
| Feature | Official Raspberry Pi |
| Keywords | Raspberry Pi Accessories |
Product Detail

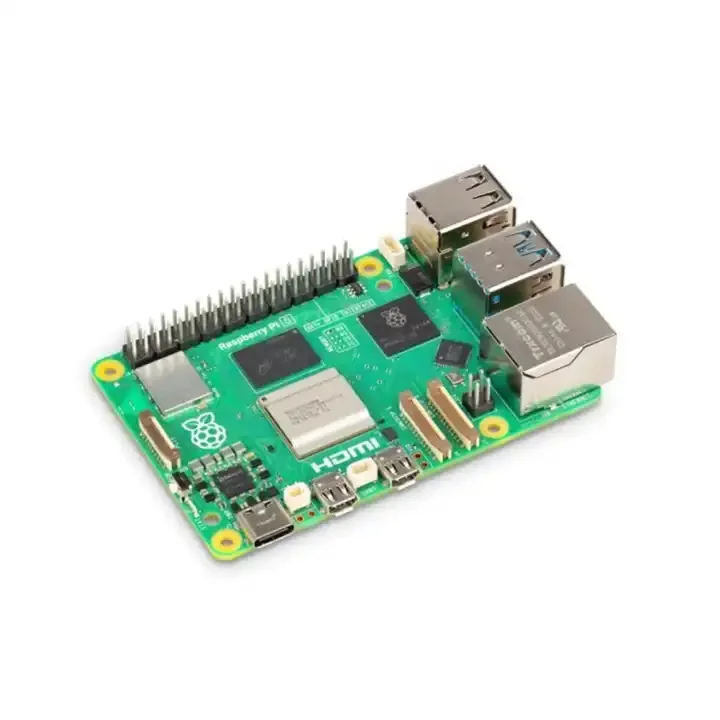

Newest Raspberry Pi 5 Model 4G/8G RAM Raspberry Pi5 Development Board Broadcom BCM2712 Pre-order Product
|
Raspberry Pi 5 Published September 2023 Welcome to the latest generation of Raspberry Pi: the everything computer.
performance relative to Raspberry Pi 4. Alongside a substantial uplift in graphics performance from an 800MHz VideoCore VII GPU; dual 4Kp60 display output over HDMI; and state-of-the-art camera support from a rearchitected Raspberry Pi Image Signal Processor, it provides a smooth desktop experience for consumers, and opens the door to new applications for industrial customers. For the first time, this is a full-size Raspberry Pi computer using silicon built in-house at Raspberry Pi. The RP1 “southbridge” provides the bulk of the I/O capabilities for Raspberry Pi 5, and delivers a step change in peripheral performance and functionality.
Aggregate USB bandwidth is more than doubled, yielding faster transfer speeds to external UAS drives and other high-speed peripherals; the dedicated two-lane 1Gbps MIPI camera and display interfaces present on earlier models have been replaced by a pair of four-lane 1.5Gbps MIPI transceivers, tripling total bandwidth, and supporting any combination of up to two cameras or displays; peak SD card performance is doubled, through support for the SDR104 high-speed mode; and for the first time the platform exposes a single-lane PCI Express 2.0 interface, providing support for high-bandwidth peripherals.
Specification
Processor: Broadcom BCM2712 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU, with cryptography extensions, 512KB per-core L2 caches, and a 2MB shared L3 cache
Features:
• VideoCore VII GPU, supporting OpenGL ES 3.1, Vulkan 1.2
• Dual 4Kp60 HDMI® display output with HDR support
• 4Kp60 HEVC decoder
• LPDDR4X-4267 SDRAM (4GB and 8GB SKUs available at launch)
• Dual-band 802.11ac Wi-Fi®
• Bluetooth 5.0 / Bluetooth Low Energy (BLE)
• microSD card slot, with support for high-speed SDR104 mode
• 2 ×USB 3.0 ports, supporting simultaneous 5Gbps operation
• 2 × USB 2.0 ports
• Gigabit Ethernet, with PoE+ support (requires separate PoE+ HAT)
• 2 × 4-lane MIPI camera/display transceivers
• PCIe 2.0 x1 interface for fast peripherals (requires separate M.2 HAT or other adapter)
• 5V/5A DC power via USB-C, with Power Delivery support
• Raspberry Pi standard 40-pin header
•Real-time clock (RTC), powered from external battery
• Power button
New platform, new chipset
Three new chips, each designed specifically for the Raspberry Pi 5 program, come together to deliver a step change in performance.
Three new chips, each designed specifically for the Raspberry Pi 5 program, come together to deliver a step change in performance.
BCM2712 is a new 16-nanometer application processor (AP) from Broadcom, derived from the 28-nanometer BCM2711 AP which powers Raspberry Pi 4, with numerous architectural enhancements. At its heart is a quad-core 64-bit Arm Cortex-A76 processor, clocked at 2.4GHz, with 512KB per-core L2 caches, and a 2MB shared L3 cache. Cortex-A76 is three microarchitectural generations beyond Cortex-A72, and offers both more instructions per clock (IPC) and lower energy per instruction. The combination of a newer core, a higher clock speed, and a smaller process geometry yields a much faster Raspberry Pi, and one that consumes much less power for a given workload.
RP1 is our I/O controller for Raspberry Pi 5, designed by the same team at Raspberry Pi that delivered the RP2040 microcontroller, and implemented, like RP2040, on TSMC’s mature 40LP process. It provides two USB 3.0 and two USB 2.0 interfaces; a Gigabit Ethernet controller; two four-lane MIPI transceivers for camera and display; analogue video output; 3.3V general-purpose I/O (GPIO); and the usual collection of GPIO-multiplexed low-speed interfaces (UART, SPI, I2C, I2S, and PWM). A four-lane PCI Express 2.0 interface provides a 16Gb/s link back to BCM2712.
DA9091
BCM2712 and RP1 are supported by the third new component of the chipset, the Renesas DA9091 “Gilmour” power-management IC (PMIC). This integrates eight separate switch-mode power supplies to generate the various voltages required by the board, including a quad-phase core supply, capable of providing 20 amps of current to power the Cortex-A76 cores and other digital logic in BCM2712.
BCM2712 and RP1 are supported by the third new component of the chipset, the Renesas DA9091 “Gilmour” power-management IC (PMIC). This integrates eight separate switch-mode power supplies to generate the various voltages required by the board, including a quad-phase core supply, capable of providing 20 amps of current to power the Cortex-A76 cores and other digital logic in BCM2712.
Two other elements of the chipset have been retained from Raspberry Pi 4. The Infineon CYW43455 combo chip provides dual-band 802.11ac Wi-Fi and Bluetooth 5.0 with Bluetooth Low-Energy (BLE); while the chip itself is unchanged, it is provided with a dedicated switched power supply rail for lower power consumption, and is connected to BCM2712 by an upgraded SDIO interface which supports DDR50 mode for higher potential throughput. As before, Ethernet connectivity is provided by a Broadcom BCM54213 Gigabit Ethernet PHY; this now sits at a jaunty 45-degree angle, a first for Raspberry Pi, and a source of enduring disappointment for orthogonal-layout enthusiast and CTO (Software) Gordon Hollingworth.
