Front Axle Lift 4/5/6 Axle Rear Dump Semi Trailer 40-100 Ton Cargo Dump Truck Tipper Trailer with U-shape for Sale in Ecuador
US $6,500.00-6,800.00 / piece
1 piece(s)Minimum order
Use:
Truck Trailer
Type:
Semi-Trailer
Material:
Steel, Q345 Steel
Size:
9600/10500/11280*2550mm*3800mm Customized
Max Payload:
30T/40T/50T/60T/80T/100T
Place of Origin:
Shandong, China
Privacy Policy:
Samples are free within a certain price range
Other recommendations for your business
$7,000.00-9,000.00
1 piece (MOQ)
$13,000.00-15,000.00
1 piece (MOQ)
$3,000.00-3,300.00
1 piece (MOQ)
$9,500.00-10,500.00
1 piece (MOQ)
$7,200.00-7,500.00
10 pieces (MOQ)
$9,500.00-10,500.00
1 piece (MOQ)
$13,000.00-15,000.00
1 piece (MOQ)
$7,000.00-7,500.00
1 piece (MOQ) Contact us
Quik Detail
| Use | Truck Trailer |
|---|---|
| Type | Semi-Trailer |
| Material | Steel, Q345 Steel |
| Size | 9600/10500/11280*2550mm*3800mm Customized |
| Max Payload | 30T/40T/50T/60T/80T/100T |
| Place of Origin | Shandong, China |
| Brand Name | ALEEAO trailer |
| Application | Transport all kinds of Mineral/Coal/Stone/Sand/Cargo Loading |
| Color | Customer's Request |
| Cylinder Device | HYVA(according to length of cargo Tanker) |
| Suspension System | Mechnical suspension/Air suspension |
| AXle No.&Brand | 2 Axles 3 Axles 4 Axles bpw,fuwa,L1 |
| King Pin | 2.0 Inch (50mm)/3.5 Inch (90mm) |
| Tire Specification | 12R22.5/315/80R22.8/11R22.5 Triangle,linglong,jindun |
| Landing Gear | JOST 28 Tons |
| Leaf Spring | 90(W)mm*16(Thickness)mm*10(Layer) |
Product Detail
提示信息
Subtitle/CC
Speed
Quality
Audio Track
Speed
Subtitle/CC
Audio Track
Quality

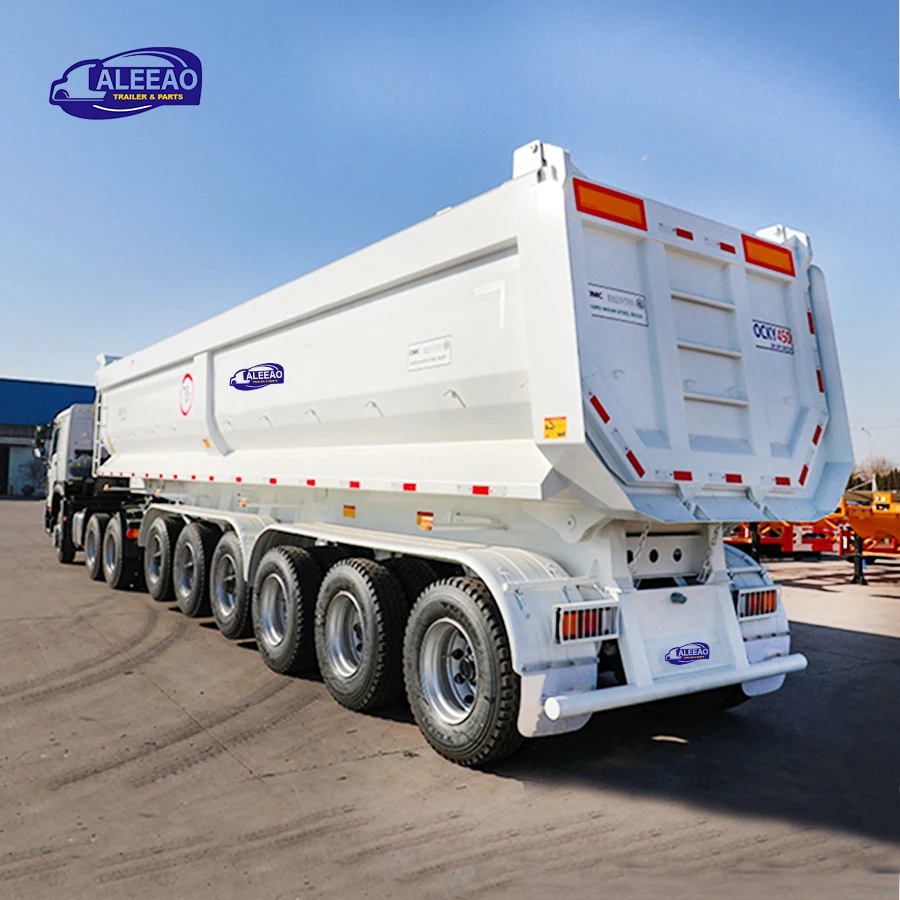

ALEEAO Rear Dump Tipping Semi Trailer
The rear dump trailer is also called a tipper trailer or tipping trailer.
They are used to load sand, stone, coal and other solid building materials or industrial raw materials. Rear dump semi-trailers are designed to make unloading easier.
After the The back of the trailer is locked, sand can be loaded.
When it arrives at the destination, the front side of the semi-trailer can be raised,
which makes the goods drop from the back.
The bucket of the trailer requires a thicker steel plate , because the goods are often hard materials,
and the steel plate can prevent the cargo from damaging the trailer.
The Dump Trailer is the main product of our company. It use high stength full thickness Steel, titanium content of 0.98‰, which ensure Beam and frame’s Toughness and strength. The strong Loading Capacity, 30-100 Tons Loading Range.
The frame chassis of this series adopts the through-beam structure, submerged arc automatic welding is used for longitudinal beams，and the frame structure includes straight and gooseneck types. The overall strength is high, the weight is light, the appearance is beautiful, and the use is safe and reliable.
The whole frame of the dump trailer should be shot blasted to effectively eliminate welding residues. The vehicle body is electrophoretic coating, resistant to coating, and the coating effect can reach more than 10 years.We adopt world famous brand of parts, like JOST, braking valve etc. And the main part is Hydraulic support system. It is stable and long service life, we choose HYVA brand.
ALEEAO Rear Dump Tipper Semi Trailer | ||||||||
Application | Transport all kinds of Mineral/Coal/Stone/Sand/Cargo Loading | |||||||
Model | 2 axles tipper trailer | 3 axles tipper trailer | 4 axles tipper trailer | 5 - 6 axles tipper trailer | ||||
Bucket capacity | 25 cubic meters | 30/35/40 cubic meters | 40 cubic meters | 50 cubic meters | ||||
Dimension （mm） | 8500*2500*3500 | 10000x2500x3800 | 10500*2500*3900 | 11500*2500*3950 | ||||
Lifting system | HYVA brand FE/FC type cylinders Diameter=191 mm | HYVA brand FE/FC type cylinders Diameter=191 mm | HYVA brand FE/FC type cylinders Diameter=202 mm | HYVA brand FE/FC type cylinders Diameter=214 mm | ||||
Axle | 13T/16T FUWA / BPW /ALEEAO | |||||||
King Pin | JOST brand 2.0'' / 3.5'' bolt type king pin | |||||||
Landing Gear | 28T double speed JOST / Fuwa | |||||||
Suspension | Heavy duty mechanical suspension / Air bag / Bogies | |||||||
Painting | 1 coat of anti corrosive prime, 2 coats of final paint | |||||||
We offer you the following services (Free ).
1.Report your order production process daily to meet the delivery time quickly
2.Video chatting about trailer details
3.User instructional video/User Manual of special model/special OEM requirements
4.Exporting standard package
5. You can get some trailer spare parts for free
6. We have loading area,if you have other goods,send to us and packaged together with our trailer(Free)
7. We can help you create independent websites, pictures, videos, and promotional posters to facilitate your promotion
8. A surprise gift made just for you
2 axles 25 cubic meters dump semi trailer

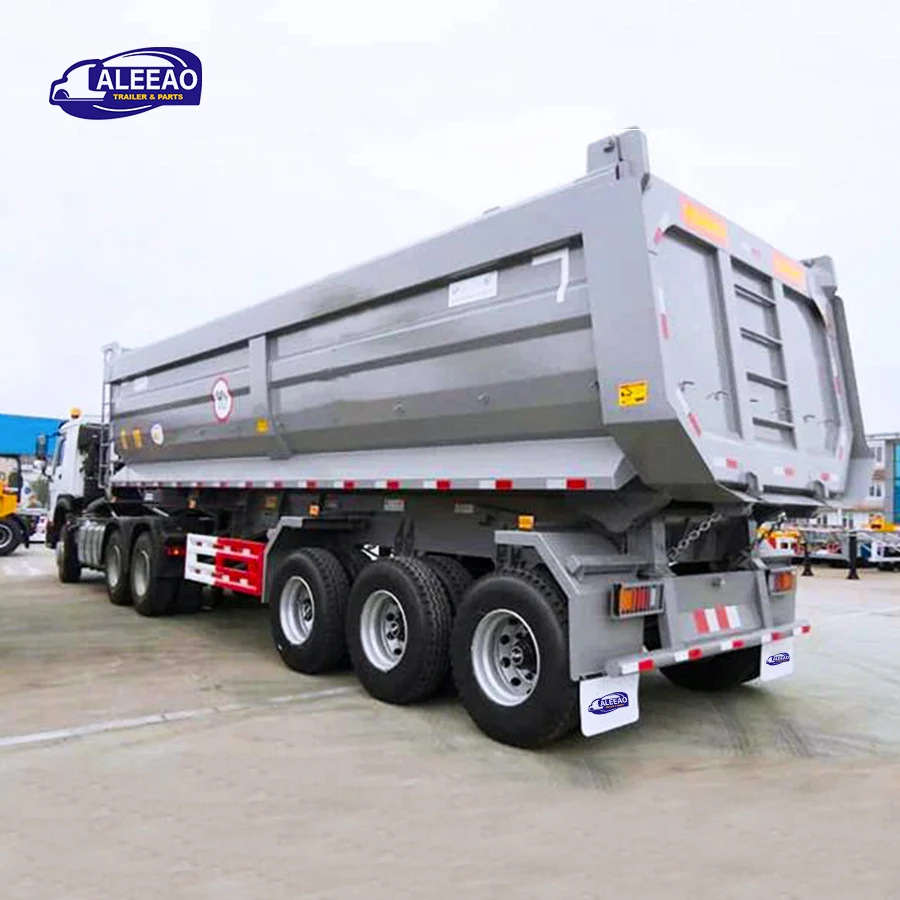

3 axles 30-40 cubic meters dump semi trailer
4 axles 40 cubic meters dump semi trailer

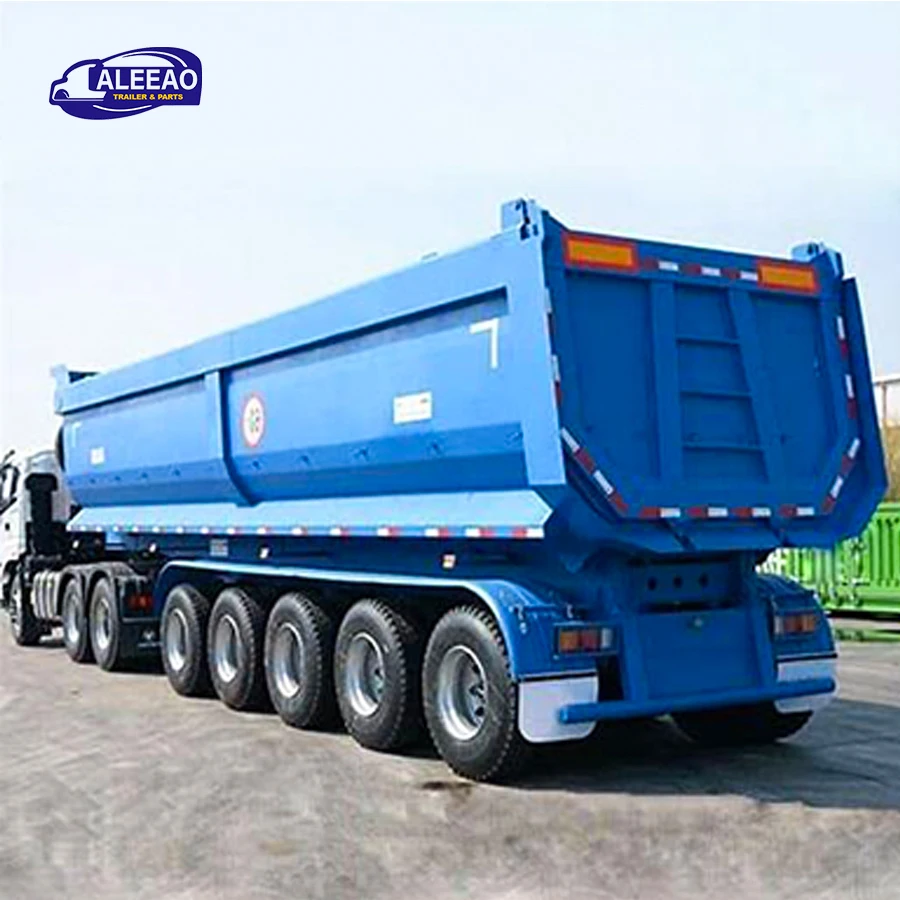

5/6 axles 50 cubic meters dump semi trailer
Hydraulic Cylinder
Well-known brand hydraulic cylinder: HYVA.(Model Choice According to Length of Tanker)
Landing Device
JOST/FUWA Landing Gear.
Aluminum or Steel Landing Gear Warranty come with above 5 Years long.
Gear Box with low temperature premlum chassis lube rated for service from -30°C~120°C.
Brake System
From the point of view of safety,
the vehicle with the air brake system needs both the service brake and the parking brake,
so it must be equipped with a double-chamber air chamber.
Advanced Axle Performance BPW/FUWA /ALEEAO
Integrated Advanced Low-Alloy Axle Beam,
Whole Axle Beam No Welding process.
Strong Carrying Capacity and high bending Strength.
Axle maintenance-free could reach 3 Year/400,000 kilometers.
Tire
Double-Coin/Ling Long/Michelin/ Triangle/Bridgestone and other famous brand for choice.
Better Performance in wear resistance.
Tipper Body
Sufficient Cargo space.
U-shaped or Rectangular Tanker optional.
Full thickness special steel, stronger carrying capacity.
Reinforcement Ribs
18 strong reinforcing ribs are designed to ensure the safety and carrying capacity of the trailer.
Liangshan LEAO Machinery Co., Ltd. has its own independent trailer factory - ALEEAO TRAILER, which is an enterprise integrating trailer manufacturing, design, trade, parts production and sales. LEAO nearly 20 years of experience in the production of semi-trailers and trailer parts. The company is located in Liangshan County, Shandong Province, and has passed IS09001-2000 certification and 3C certification.
LEAO's main products are flatbed trailers, low-bed trailers, cargo transport trailers, dump truck trailers, tanker trailers, car transport trailers, animal transport fence trailers and axle parts. They are exported to more than 30 countries in Africa, South America, Southeast Asian countries and the Middle East. country.
Beautiful Liangshan, Honest LEAO, we sincerely welcome customers at home and abroad to visit us for guidance.
