G-Penny 2.2kw 220v air Cooled Spindle ER25 air Cooling Ceramic Ball Barings with 2.2kw Inverter/VFD
1 piece(s)Minimum order
place of origin:
Jiangsu, China
weight (kg):
11
video outgoing-inspection:
Not Available
machinery test report:
Not Available
brand name:
G-PENNY Machine
application:
Milling
Privacy Policy:
Samples are free within a certain price range
Other recommendations for your business
$159.20-167.51
1 piece (MOQ)
$198.93-209.40
1 piece (MOQ)
$107.57-110.22
1 piece (MOQ)
$267.88-272.08
1 piece (MOQ)
Contact us
Quik Detail
| place of origin | Jiangsu, China |
|---|---|
| weight (kg) | 11 |
| video outgoing-inspection | Not Available |
| machinery test report | Not Available |
| brand name | G-PENNY Machine |
| application | Milling |
| maximum torque | 1.21N.m |
| drive | motor |
| operating speed | 0-18000rpm |
| warranty | 1 Year |
| core components | Bearing, motor |
| Size | 180x80x92mm |
| Power | 2.2KW |
| Voltage | 220V/380V |
| Cooling type | Air Cooling |
| Current | 8.5A |
| Spindle Bearing Type | 2x7007C P4 DB & 2x7002C P4 DT |
| Collect | ER 25 |
| Frequency | 300HZ |
| Lubrication | Grease |
| Spindle Collet Range | 1-13mm (Including 1/4,1/8,1/2) |
| Condition | New |
| Applicable Industries | hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Restaurant, Home Use, Retail, Printing Shops, Construction works , Energy & Mining, Other, Advertising Company |
| Showroom Location | Russia |
| Marketing Type | Hot Product 2019 |
Product Detail
Product Description

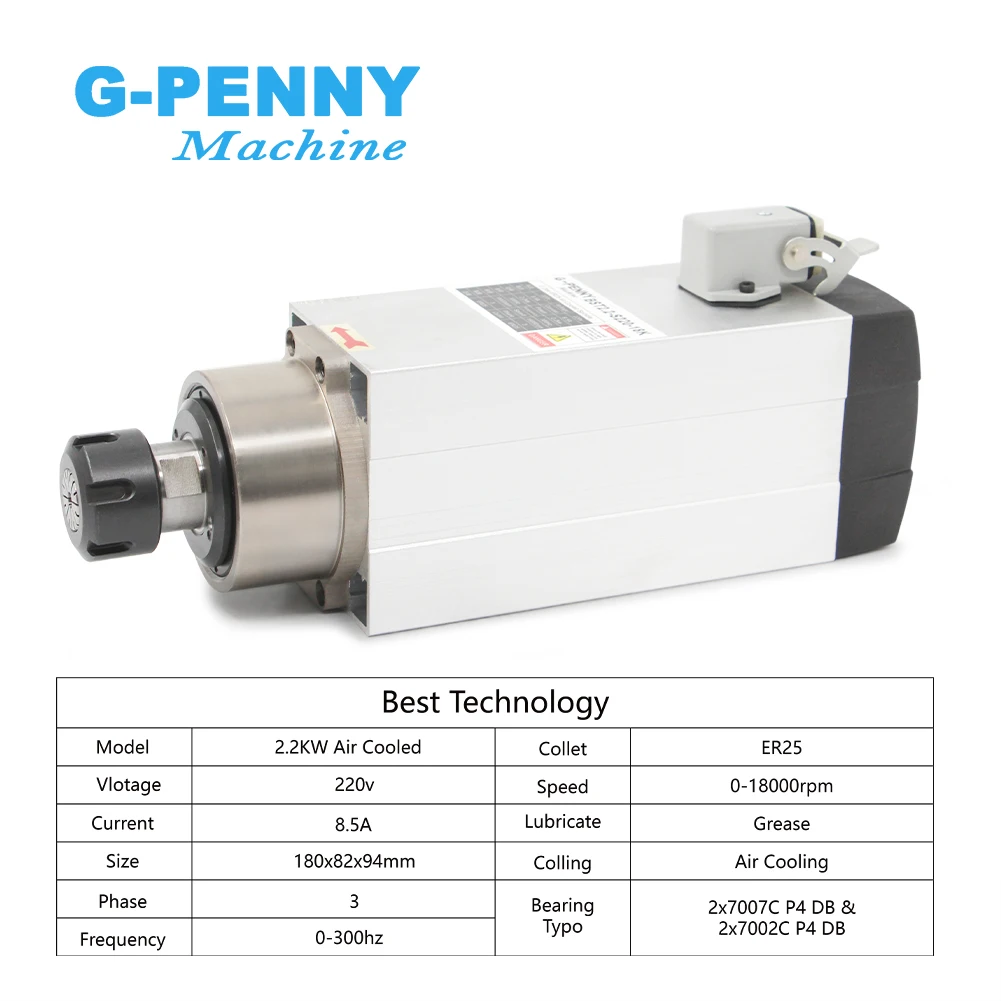

1 pcs -- 2.2kw ER25 220v/380v air cooled spindle motor 4pcs ceramic ball bearings Square type (Without mounting flange)
1 pcs--2.2KW 220v/380v FuLing Inverter/VFD
* Size: 180x110x94mm
* Speed Ways:Through 3-phase output inverter and adjust the inverter frequency to change the spindle speed.
* Cooling:Air cooling
* Power Interface:Optional waterproof air plug. The air plug marked "1 ","2"," 3"," 4", "1 ","2 ","3" were connected to inverter (U, V, W), 4 connected inverter ground.(Pay attention! our spindle "4" connecting to GND,promised personal safety!!)
* Power:2.2kw (1HP=0.735w)
* Voltage: 220v(If you need 380v spindle ,please leave message to us,thank you)
* Current: 8.5A
* Frequency: 0-300Hz
* Speed: 0-18000rpm
* Runout Off:Less than 0.01mm
* Bearing type:2x7007C P4 DB & 2x7002C P4 DB (4 pcs ceramic ball bearings)
* Collet:ER25
* Clip Knifediameter:1mm,2mm,3mm,3.175mm(1/8),4mm,5mm,6mm,6.35mm(1/4),7mm, 8mm,9mm,10mm,11mm,12mm,12.7mm(1/2),13mm,14mm,15mm,16mm
* Grease Lubrication
* Main Application: Engrave for wood,bamboo,normal PCB,PVC,PMMA,plastic,duotone board(ABS)and etc nonmetal, also can engrave on gold,silver,copper, aluminium,Pb etc soft metal surface working.(Please pay more attention, this is wood working spindle, only
can used for wood working and aluminum working,please don't use it for steel. If you need steel working,please check the metal spindle,thank you!)
* Speed Ways:Through 3-phase output inverter and adjust the inverter frequency to change the spindle speed.
* Cooling:Air cooling
* Power Interface:Optional waterproof air plug. The air plug marked "1 ","2"," 3"," 4", "1 ","2 ","3" were connected to inverter (U, V, W), 4 connected inverter ground.(Pay attention! our spindle "4" connecting to GND,promised personal safety!!)
* Power:2.2kw (1HP=0.735w)
* Voltage: 220v(If you need 380v spindle ,please leave message to us,thank you)
* Current: 8.5A
* Frequency: 0-300Hz
* Speed: 0-18000rpm
* Runout Off:Less than 0.01mm
* Bearing type:2x7007C P4 DB & 2x7002C P4 DB (4 pcs ceramic ball bearings)
* Collet:ER25
* Clip Knifediameter:1mm,2mm,3mm,3.175mm(1/8),4mm,5mm,6mm,6.35mm(1/4),7mm, 8mm,9mm,10mm,11mm,12mm,12.7mm(1/2),13mm,14mm,15mm,16mm
* Grease Lubrication
* Main Application: Engrave for wood,bamboo,normal PCB,PVC,PMMA,plastic,duotone board(ABS)and etc nonmetal, also can engrave on gold,silver,copper, aluminium,Pb etc soft metal surface working.(Please pay more attention, this is wood working spindle, only
can used for wood working and aluminum working,please don't use it for steel. If you need steel working,please check the metal spindle,thank you!)
Size | Power | Voltage | Current |
180*110*94mm | 2.2KW | 220V | 8.5A |
Frequency | Speed | Lubrication | Collet |
0-300Hz | 0-18000rpm | Grease | ER25 |
* Bearing is P4 grade,2×7007C P4 DB & 2x7002C P4 DB. 4pcs ceramic ball bearings,increase the spindle life.
* 2.2kw ER25 air cooled spindle, the collet nut range from 1mm to 16mm, better than ER20 collet.
* High precision,runout off less than 0.01mm.Coaxial degree less than 0.0025mm
* Shipment within four days,there is no fake tracking number,make sure that you receive time.
* We are the spindle manufacturer,we offer only best quality and best price to you.
* 2.2kw ER25 air cooled spindle, the collet nut range from 1mm to 16mm, better than ER20 collet.
* High precision,runout off less than 0.01mm.Coaxial degree less than 0.0025mm
* Shipment within four days,there is no fake tracking number,make sure that you receive time.
* We are the spindle manufacturer,we offer only best quality and best price to you.
1. Our Ceramic ball bearings spindle use 4 pcs ceramic ball bearings.
2. Ceramic ball bearings are resistant to high temperatures and low heat , usually 3-5 degrees lower than steel ball bearings during using .
3. Ceramic ball bearings have low friction, low noise and long service life.
4. If you want to use the spindle for aluminum, hard wood, then ceramic ball bearings better than steel ball bearings
2. Ceramic ball bearings are resistant to high temperatures and low heat , usually 3-5 degrees lower than steel ball bearings during using .
3. Ceramic ball bearings have low friction, low noise and long service life.
4. If you want to use the spindle for aluminum, hard wood, then ceramic ball bearings better than steel ball bearings
Structural Features
High-speed electric main bearings used in all C class high-speed angular contact ball bearings, axial pre-load feature, improved
support stiffness and live spindle grinding accuracy under high-speed rotation.
Spindle speed according to different uses can be high-speed grease and oil mist lubrication two ways.
Spindle speed rotation temperature rise caused by the use of coolant circulation system eliminated.
High-speed electric main bearings used in all C class high-speed angular contact ball bearings, axial pre-load feature, improved
support stiffness and live spindle grinding accuracy under high-speed rotation.
Spindle speed according to different uses can be high-speed grease and oil mist lubrication two ways.
Spindle speed rotation temperature rise caused by the use of coolant circulation system eliminated.
* Inverter Number: Fuling 220v 2.2kw
* Input Voltage: 220v(+/-15%)
* Input Frequency: 50/60Hz
* Input Phase: 1 or 3 phase
* Output Voltage: 220vAC
* Output Frequency: 0-1000 Hz
* Output Current:15A
* Output Phase: 3 phase
* Warranty: 1 year from the date you purchased
* Input Voltage: 220v(+/-15%)
* Input Frequency: 50/60Hz
* Input Phase: 1 or 3 phase
* Output Voltage: 220vAC
* Output Frequency: 0-1000 Hz
* Output Current:15A
* Output Phase: 3 phase
* Warranty: 1 year from the date you purchased
* Two speed control modes: no PG vector control (SVC), V/F control
* No PG vector control (SVC): starting torque 0.5Hz up to 150%
* 8-stage simple PLC function, multi-speed control and PID control
* Support multiple frequency settings: digital setting, analog setting, PID setting, RS485 communication setting
* I/O terminals can be freely programmed to combine multiple working modes according to user needs.
* With jump frequency control function, it can effectively suppress mechanical resonance and make the system more stable and reliable.
* With instantaneous power-down retention function, it can avoid the impact of production due to instantaneous power failure
* With over torque and under torque detection
* Automatic voltage adjustment function to effectively solve the low frequency oscillation problem of high power motor
* Provide a variety of fault protection functions: over-current, over-voltage, under-voltage, over-heat, overload, lack of equal real-time monitoring and protection to ensure safe operation
* Built-in reactor with inverter above 37kW, which improves the power factor of the input side and improves the efficiency and stability of the whole machine
* 0.75~15kW built-in braking unit.
* No PG vector control (SVC): starting torque 0.5Hz up to 150%
* 8-stage simple PLC function, multi-speed control and PID control
* Support multiple frequency settings: digital setting, analog setting, PID setting, RS485 communication setting
* I/O terminals can be freely programmed to combine multiple working modes according to user needs.
* With jump frequency control function, it can effectively suppress mechanical resonance and make the system more stable and reliable.
* With instantaneous power-down retention function, it can avoid the impact of production due to instantaneous power failure
* With over torque and under torque detection
* Automatic voltage adjustment function to effectively solve the low frequency oscillation problem of high power motor
* Provide a variety of fault protection functions: over-current, over-voltage, under-voltage, over-heat, overload, lack of equal real-time monitoring and protection to ensure safe operation
* Built-in reactor with inverter above 37kW, which improves the power factor of the input side and improves the efficiency and stability of the whole machine
* 0.75~15kW built-in braking unit.
DO NOT set up the inverter by yourself if you don't know how to, or it will make both the spindle and inverter burn easily.
Please contact us, we have manuals, videos and pictures to help you.
Please contact us, we have manuals, videos and pictures to help you.
* Spindle working environment temperature is usually -10 ~ 40 .
* Before installing the first electric spindle axis head turned by hand, should feel flexible, non-blocking phenomenon.
* Before installing the first electric spindle axis head turned by hand, should feel flexible, non-blocking phenomenon.
* Spindle in the preservation and transportation, high-speed grease inside the bearing state will change, customers should be running at low speed for 30 minutes. 3000 rpm and then follow the poor increase, run 20 minutes each. Spindle and the inverter should be working together. The inverter's specifications and parameter settings need match spindles parameter.(Because of high-speed grease inside the bearing state will change,when you get the spindle, maybe the noise sounds not normal.Please run it 30 minutes or even more, the noise will be normal.)
* Connect the inverter spindle, three-phase inverter power cord should be soldered in the plug 1 (U), 2 (V), 3 (W) feet, 4 feet for the ground. After the power is turned on, to observe whether the spindle rotation axis indicates the direction consistent. If inconsistency should be immediately shut down, replace the inverter and spindle connected two wires of three-phase power supply.
* During normal operation, air-cooled spindle often encounter the phenomenon of heat, always check whether the air-cooled spindle housing and duct clogging dust.If clogging dust, to promptly clean up. If you do not clean up, it is easily to make the spindle burned.
* Every day before using the spindle must be running at low speed for 15-20 minutes. Clamping the cutters to spindle, collet nuts, collets, cutters must be clean enough. Shank inserted into the collet must be greater than 15mm.
* Connect the inverter spindle, three-phase inverter power cord should be soldered in the plug 1 (U), 2 (V), 3 (W) feet, 4 feet for the ground. After the power is turned on, to observe whether the spindle rotation axis indicates the direction consistent. If inconsistency should be immediately shut down, replace the inverter and spindle connected two wires of three-phase power supply.
* During normal operation, air-cooled spindle often encounter the phenomenon of heat, always check whether the air-cooled spindle housing and duct clogging dust.If clogging dust, to promptly clean up. If you do not clean up, it is easily to make the spindle burned.
* Every day before using the spindle must be running at low speed for 15-20 minutes. Clamping the cutters to spindle, collet nuts, collets, cutters must be clean enough. Shank inserted into the collet must be greater than 15mm.
If the spindle will not be used for a long time, please keep the spindle oil sealed to prevent rust from being unused for a long time.
Before shipping , we did the oil seal to avoid the rust during the long shipment. When you get the spindle, please clearing the oil seal before using. Thank you.
Before shipping , we did the oil seal to avoid the rust during the long shipment. When you get the spindle, please clearing the oil seal before using. Thank you.
* Spindle frequency power supply connected rated voltage, frequency should be consistent with the technical parameters of the electro-spindle, spindle speed can be adjusted to change the frequency, and voltage is proportional to the change.
* Spindle being not used, the application of compressed air to blow the pipes static coolant.To prevent rust, clogging water holes. Spindle appearance should be oiled. Plus the shaft protection device, put in a dry place.
* To replace the spindle bearings, certain professional and technical personnel should be replaced.Supporting special tools, bearings should be replaced fully cleaned without removing the stator coils.
* Spindle being not used, the application of compressed air to blow the pipes static coolant.To prevent rust, clogging water holes. Spindle appearance should be oiled. Plus the shaft protection device, put in a dry place.
* To replace the spindle bearings, certain professional and technical personnel should be replaced.Supporting special tools, bearings should be replaced fully cleaned without removing the stator coils.
1. Cooling in different ways: water-cooled spindle motor is the use of the water cycle to cool the heat generated after the high-speed rotating spindle, spindle motor with fan-cooled approach to cooling.
2. Noise: Water-cooled spindle motor is basically no noise, but the air-cooled spindle motor is very loud.
3. Life aspects: Water-cooled spindle motor pay attention to maintenance, frequently changes the water or the use of industrial water coolers, air-cooled spindle fan mainly by the wind blowing the heat transferred to the heat sink, so as to achieve the cooling effect.
4.If you need use for metal ,hard wood,granite,stone,you can choose metal spindle.Metal spindle much better than wood spindle.
2. Noise: Water-cooled spindle motor is basically no noise, but the air-cooled spindle motor is very loud.
3. Life aspects: Water-cooled spindle motor pay attention to maintenance, frequently changes the water or the use of industrial water coolers, air-cooled spindle fan mainly by the wind blowing the heat transferred to the heat sink, so as to achieve the cooling effect.
4.If you need use for metal ,hard wood,granite,stone,you can choose metal spindle.Metal spindle much better than wood spindle.
* We will 100% guarantee security to the hands of the guests.
* Spindle from the production - assembly - test, and finally the perfect packaging .
* Spindle from the production - assembly - test, and finally the perfect packaging .
Shipping Cost:
Our products are sold worldwide.
If you need many items in the same time, please contact us in advance to confirm shipping cost.
Payment:
We accept paypal credit, bank transfer, western union etc.
Payment must be made within 7days calendar days of the auction end time.
Problem and Feedback:
PLEASE DON'T leave any negative feedback before you contact us.
We are honest and helpful supplier , we will try our best to solve problems with you.
Your satisfaction is very important for our store, so please contact us before you want to leave a negative feedback.
Thanks very much in advance.
Refund:
If you are NOT SATISFIED with our package like the products is damage, please do not sign it and contact us immediately.
If it is possible, please take some photos or make a small video about it. It will help us to solve the problems.
Note:
We can produce the product according to our customer's design.
If you need something is very special, please contact us about it.
We are willing to help you about it.
Our products are sold worldwide.
If you need many items in the same time, please contact us in advance to confirm shipping cost.
Payment:
We accept paypal credit, bank transfer, western union etc.
Payment must be made within 7days calendar days of the auction end time.
Problem and Feedback:
PLEASE DON'T leave any negative feedback before you contact us.
We are honest and helpful supplier , we will try our best to solve problems with you.
Your satisfaction is very important for our store, so please contact us before you want to leave a negative feedback.
Thanks very much in advance.
Refund:
If you are NOT SATISFIED with our package like the products is damage, please do not sign it and contact us immediately.
If it is possible, please take some photos or make a small video about it. It will help us to solve the problems.
Note:
We can produce the product according to our customer's design.
If you need something is very special, please contact us about it.
We are willing to help you about it.
