Gdz65 1.5kw Water Cooled Spindle Set BEST 1.5kw Vfd Cnc Router Vfd Spindle Motor Kit GDZ Spindle VFD
US $138.00-155.00 / piece
1 piece(s)Minimum order
place of origin:
Jiangsu, Changzhou
weight (kg):
4
video outgoing-inspection:
Provided
machinery test report:
Provided
brand name:
ChangSheng; CS; Changshen-Wangjiannan
application:
Grinding
Privacy Policy:
Samples are free within a certain price range
Other recommendations for your business
$150.00-165.00
1 piece (MOQ)
$140.00-165.00
1 piece (MOQ)
$1,090.00-1,146.00
1 piece (MOQ)
Contact us
Quik Detail
| place of origin | Jiangsu, Changzhou |
|---|---|
| weight (kg) | 4 |
| video outgoing-inspection | Provided |
| machinery test report | Provided |
| brand name | ChangSheng; CS; Changshen-Wangjiannan |
| application | Grinding |
| maximum torque | 0.33N.m |
| drive | motor |
| operating speed | 24000rpm |
| warranty | 1 Year |
| core components | Bearing, motor |
| Product name | 1.5w Water cooled spindle motor set |
| Power | 1.5w |
| Voltage | 110V/220V/380V |
| Current | 5A |
| Collet | er11 |
| Frequency | 400hz |
| Speed | 24000rpm |
| Name | GDZ65-1.5 (65*195) |
| Bearings | 4 |
| Condition | New |
| Showroom Location | None |
| Marketing Type | Ordinary Product |
| Applicable Industries | Advertising Company, furniture, CNC |
Product Detail
Product Description
CNC Spindle 1.5kw Water-Cooled Spindle Motor ER11 Chuck 400Hz 24000rpm For CNC Router Engraving Milling Machine GDZ65-1.5
Package includes
1.GDZ φ65mmX195mm 1.5KW water cooled spindle
If you also need other spindle parts, such as Inverter, Water pump or Spindle holder 65mm, we can provide. Please feel free to contact us!!!
Model: | GDZ65-1.5 (65*195) | Diameter: | Φ65mm | Power: | 1.5KW |
Voltage: | 220v/380v | Current: | 5A | Frequency: | 400Hz |
Speed: | 24000RPM | Runout: | less than 0.01mm | Chuck: | ER11 |
Middle body diameter: Φ65*195mm
Speed regulation mode: change the spindle speed through the three-phase output inverter and adjusting the frequency of the inverter.
Cooling method: water cooling
Power interface: optional 4 pin waterproof aviation plug. Aviation plugs marked "1", "2", "3", "4", "1", "2", "3" are connected to the inverter (U, V, W), and 4 are connected to the inverter Ground the equipment.
Power: 1.5kw
Voltage: 220v/380v
Current: 5A
Frequency: 400Hz
Speed: 24000rpm
Runout: less than 0.01mm
Bearing type: 7002*2+7000*2
Number of phases: 3
Chuck: ER11
Water-cooled ER11 chuck
Grease lubrication
Main purpose: used for wood, bamboo, ordinary PCB, PVC, PMMA, plastic, bamboo, two-color board (ABS) and other non-metallic carvings.
Speed regulation mode: change the spindle speed through the three-phase output inverter and adjusting the frequency of the inverter.
Cooling method: water cooling
Power interface: optional 4 pin waterproof aviation plug. Aviation plugs marked "1", "2", "3", "4", "1", "2", "3" are connected to the inverter (U, V, W), and 4 are connected to the inverter Ground the equipment.
Power: 1.5kw
Voltage: 220v/380v
Current: 5A
Frequency: 400Hz
Speed: 24000rpm
Runout: less than 0.01mm
Bearing type: 7002*2+7000*2
Number of phases: 3
Chuck: ER11
Water-cooled ER11 chuck
Grease lubrication
Main purpose: used for wood, bamboo, ordinary PCB, PVC, PMMA, plastic, bamboo, two-color board (ABS) and other non-metallic carvings.
This spindle is in stock and can be shipped on the same day！！！
If you are interested, please click "Chat now", i will reply you asap!
Notes:
When the spindle is used for the first time, the rated current of the inverter should be set to 0.5 times of the technical parameters of the electric spindle,so as not to burning the spindle.
When the spindle is used for the first time, the rated current of the inverter should be set to 0.5 times of the technical parameters of the electric spindle,so as not to burning the spindle.
Spindle Motor Sets
- Inverter
-Water Pump
-Water Pipe
-65mm Bracket

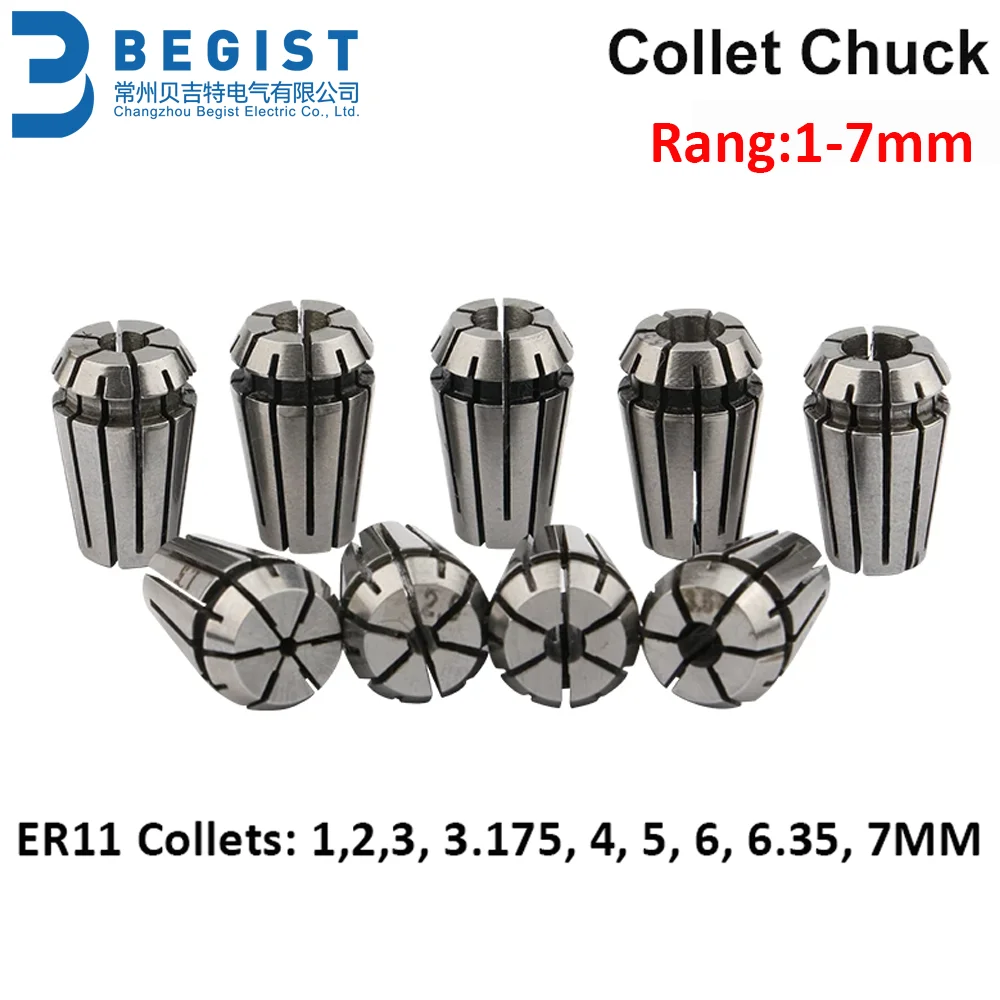

-ER11 collet set
If necessary, please feel free to contact me!
Spindle motor features:
1) Imported bearings with good quality, long working life.
2) Application: Milling,Engraving,Drilling in all kinds of CNC Router machine.
3) There are water cooling spindle , air cooling spindle and self cooling spindle for your choose.
4) Every spindle motor must be passed polishing process, Improve spindle concentricity to increase motor working life.
Provide:
1.water cooling:300w,800w,1.2kw,1.5kw,2.2kw,3kw,3.2kw,3.7kw,4kw,4.5kw,5.5kw,7.5kw
2.air cooling: 800w,1.5kw,2.2kw.3.5kw,4.5kw,6kw,7.5kw,12kw
3.ATC spindle: cooled by water: 0.5kw,1.5kw,1.8kw, 2.2kw,2.5kw,3.7kw,4kw,5.5kw,7.5kw,11kw,15kw,18kw
cooled by air: 4.5kw,6kw,9kw,12kw
4.sealing side spindle:350w,550w,700w,750w,1.1kw,1.8kw,2.2kw
We also have spindle motor matching inverter(VFD), collet , gripper etc.
If you need other kinds of parts, please don't hesitate to contact us.
1) Imported bearings with good quality, long working life.
2) Application: Milling,Engraving,Drilling in all kinds of CNC Router machine.
3) There are water cooling spindle , air cooling spindle and self cooling spindle for your choose.
4) Every spindle motor must be passed polishing process, Improve spindle concentricity to increase motor working life.
Provide:
1.water cooling:300w,800w,1.2kw,1.5kw,2.2kw,3kw,3.2kw,3.7kw,4kw,4.5kw,5.5kw,7.5kw
2.air cooling: 800w,1.5kw,2.2kw.3.5kw,4.5kw,6kw,7.5kw,12kw
3.ATC spindle: cooled by water: 0.5kw,1.5kw,1.8kw, 2.2kw,2.5kw,3.7kw,4kw,5.5kw,7.5kw,11kw,15kw,18kw
cooled by air: 4.5kw,6kw,9kw,12kw
4.sealing side spindle:350w,550w,700w,750w,1.1kw,1.8kw,2.2kw
We also have spindle motor matching inverter(VFD), collet , gripper etc.
If you need other kinds of parts, please don't hesitate to contact us.
Related Products
We are Professional CNC spindle motor manufacturer! CNC parts supplier from China. If you are interested, please feel free to write back to me, i will show you our catalog. Thank you in advance.
Company Profile
Spindle Motor Factory
Spindle Motor Warehouse
CNC Parts Warehouse
Customer Feedback
Certifications
FAQ
1.Q:Can I get some samples first?
A:Sure, we are honored to offer you samples for your check.
2.Q:Do you have the products in stock?
A:Our products are manufactured according to your order except the normal products.
3.Q:What's the delivery time?
A:It usually takes about 3 working days,but the exact delivery time might be different for different order or at different time.
4.Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality control from the beginning to the end of the production. Every product will be fully assembled and carefully tested before packed.
5.why should you buy from us not from other suppliers?
A:BEGIST is professional CNC router parts wholesaler , experience more than 13 years We not only produce CNC parts also selling other famous brand CNC parts.
Just tell your needing, we will help you buy with factory price and quality.
6.Q:The spindle has been running for a period of time and the temperature is very high. Is it normal? What is the working environment temperature range?
A:Mechanical products have very good heat resistance. The surface is normal within 150°c, and the suitable working environment temperature is -10°c ~ +50°c
7.Q:Continuous working time?
A:If the ambient temperature is in the normal range and the surface temperature of the spindle is within 150 degrees, it can work continuously without interruption.
8.Q:Abnormal sound?
A:If there are abnormal noises, most of them are bearing problems, because the bearing has a service life and is vulnerable to damage. According to different frequency and intensity of use, the bearing needs to be replaced after 0.5 to 1 year.
9.Q:What's your warranty terms?
A: We offer different warranty terms for different products. Please contact with us for details.
