Good Price China SDDOM Brand Vibrating Bin Vibram Plants Vibration Motor for All Kinds of Power Silo
US $70.00 / piece
1 piece(s)Minimum order
Video outgoing-inspection:
Provided
Machinery Test Report:
Provided
Core Components:
Gearbox, motor, Pressure vessel
Place of Origin:
Shandong, China
Brand Name:
SDDOM OEM
Type:
External
Privacy Policy:
Samples are free within a certain price range
Other recommendations for your business
$95.00-102.00
1 piece (MOQ)
$58.50-102.60
1 piece (MOQ)
$11,000.00
1 set (MOQ)
Contact us
Quik Detail
| Video outgoing-inspection | Provided |
|---|---|
| Machinery Test Report | Provided |
| Core Components | Gearbox, motor, Pressure vessel |
| Place of Origin | Shandong, China |
| Brand Name | SDDOM OEM |
| Type | External |
| Drive Mode | Electric Vibrator |
| Frequency | 3000rpm |
| Vibrating Amplitude | customized |
| Length of Flexible Shaft | customized |
| Voltage | customized |
| Weight | 2.4 kg |
| Dimension(L*W*H) | - |
| Warranty | 1 Year |
| UNIQUE SELLING POINT | High operating efficiency |
| After-sales Service Provided | No overseas service provided |
| Color | orange or customized |
| Engine Type | Four Stroke |
| Packing | wooden BOX |
| Material | Stainless Steel |
| Item | Concrete Bricks Making Machine Vibrating Table |
| Certification | CE ISO |
| Applicable Industries | Manufacturing Plant, Construction works , Energy & Mining |
| Showroom Location | Russia, Thailand, Uzbekistan |
| Marketing Type | Ordinary Product |
| Warranty of core components | 1 Year |
| Condition | New |
Product Detail

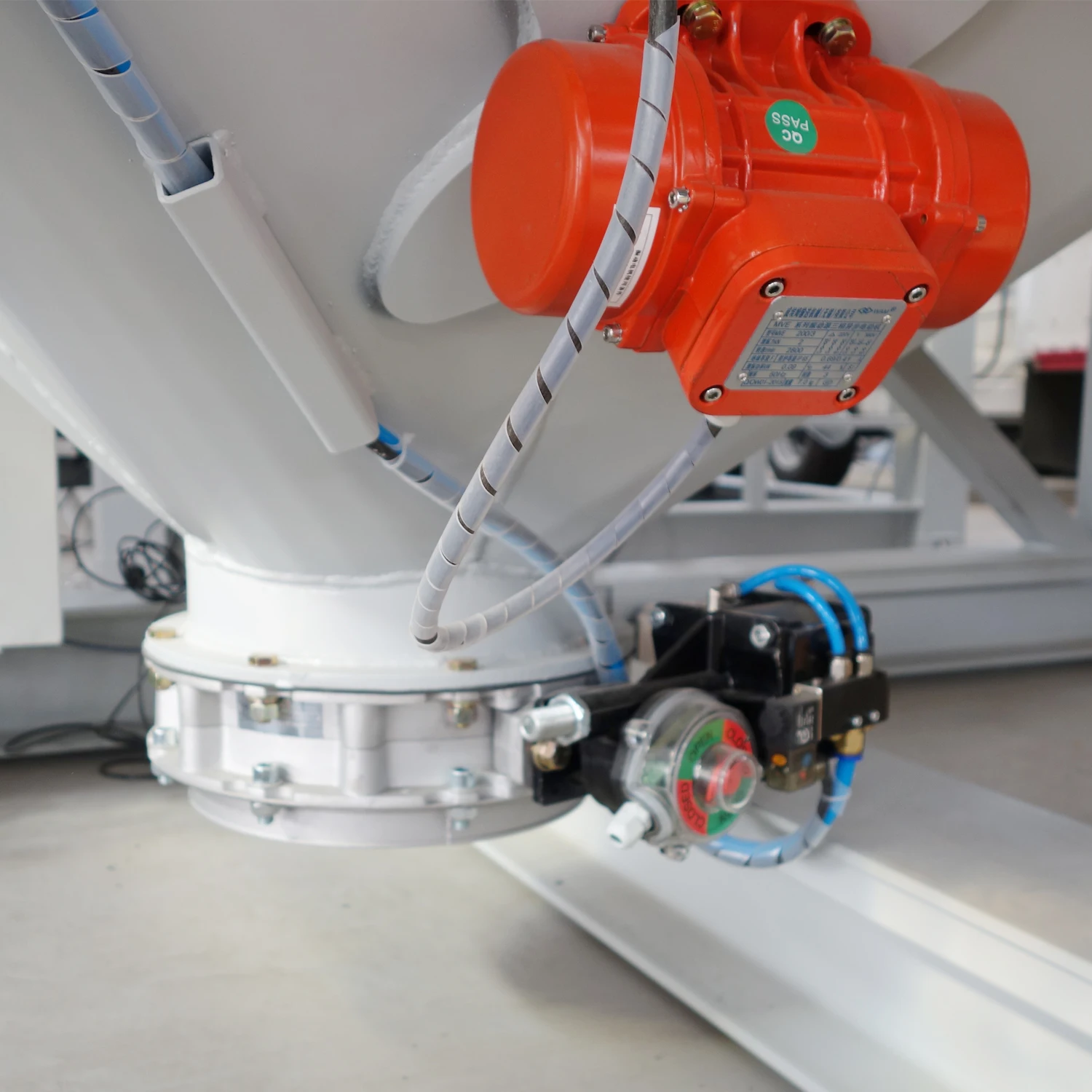

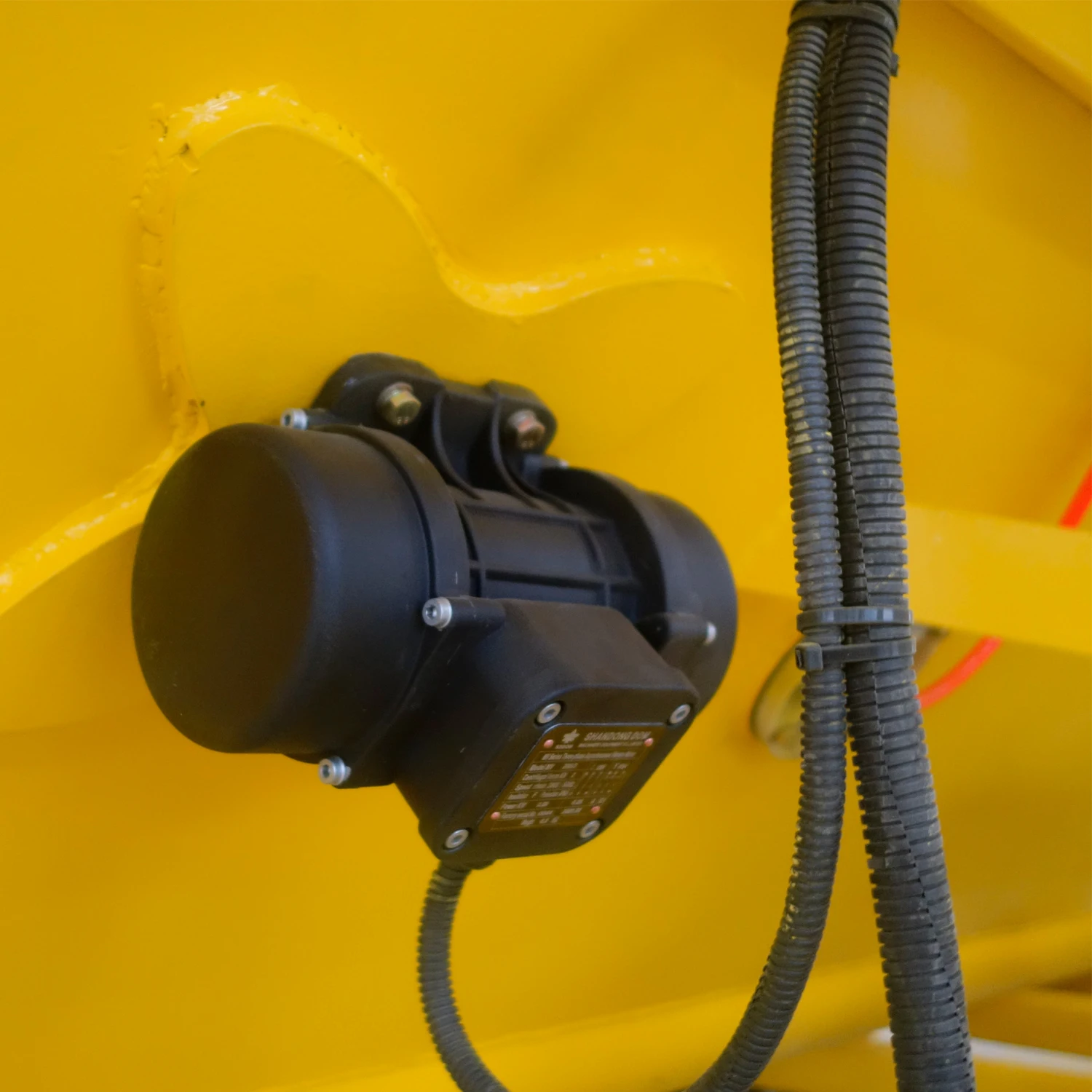

MV series vibrator motors have been developed to be used on machines like screens, feeders, extractors, separators construction works and other applications like hoppers, compactors conveyor etc.
Type | Force | Power | Efficiency | Current | Weight | Size | ||
KG | KN | KW | % | A | KG | |||
MVE 60/3 | 71 | 0.7 | 0.03 | 46 | 0.16 | 4.2 | SIZE 10 | |
MVE 10/3 | 99 | 1 | 0.04 | 44 | 0.19 | 4.6 | SIZE 10 | |
MVE 200/3 | 198 | 2 | 0.09 | 60 | 0.35 | 6.8 | SIZE 20 | |
MVE 300/3 | 311 | 3 | 0.16 | 64 | 0.52 | 9.8 | SIZE 30 | |
MVE 400/3 | 400 | 4 | 0.2 | 74 | 0.58 | 10.3 | SIZE30 | |
MVE 500/3 | 516 | 5 | 0.37 | 77 | 0.96 | 15.3 | SIZE 40 | |
MVE 700/3 | 750 | 7 | 0.45 | 77 | 1.25 | 16.5 | SIZE 40 | |
MVE 800/3 | 788 | 8 | 0.55 | 79 | 1.45 | 20.6 | SIZE 50 | |
MVE 1200/3 | 1018 | 10 | 0.75 | 82 | 1.85 | 21.6 | SIZE 50 | |
MVE 1300/3 | 1386 | 13 | 1.1 | 76 | 2.44 | 24.5 | SIZE 50 | |
MVE 1600/3 | 1571 | 16 | 1.25 | 81 | 2.94 | 51.6 | SIZE 60 | |
MVE 1800/3 | 1848 | 18 | 1.5 | 81 | 3.75 | 52 | SIZE 60 | |
MVE 2000/3 | 2033 | 20 | 2 | 83 | 4.07 | 51.8 | SIZE 60 | |
MVE 2200/3 | 2206 | 22 | 2 | 83 | 4.07 | 52.8 | SIZE 60 | |
MVE 2300/3 | 2310 | 23 | 2 | 83 | 4.44 | 53.6 | SIZE 60 | |
MVE 3200/3 | 3250 | 32 | 2.2 | 76 | 5.3 | 96.6 | SIZE 75 | |
MVE 4000/3 | 4030 | 40 | 2.3 | 76 | 5.3 | 107 | SIZE 75 | |
MVE 5000/3 | 5070 | 50 | 3.5 | 83 | 7.22 | 111.2 | SIZE 75 | |
MVE 6500/3 | 6500 | 65 | 4.2 | 86 | 8.2 | 228.4 | SIZE 85 | |
MVE 9000/3 | 9030 | 90 | 7.2 | 72 | 17.8 | 240.3 | SIZE 85 | |
MVE 12000/3 | 12245 | 120 | 10 | 91 | 19.0 | 280.0 | SIZE 90 | |
Type | Force | Power | Efficiency | Current | Weight | Size | ||
KG | KN | KW | % | A | KG | |||
MVE 40/15 | 32 | 0.3 | 0.03 | 33 | 0.26 | 4.6 | SIZE 10 | |
MVE 90/15 | 90 | 0.9 | 0.04 | 36 | 0.31 | 7.4 | SIZE 20 | |
MVE 200/15 | 183 | 2 | 0.06 | 50 | 0.49 | 11.8 | SIZE30 | |
MVE250/15 | 275 | 2.5 | 0.07 | 54 | 0.54 | 13.2 | SIZE 30 | |
MVE 300/15 | 305 | 3 | 0.08 | 57 | 0.62 | 16.5 | SIZE30 | |
MVE 400/15 | 388 | 4 | 0.15 | 60 | 0.84 | 19.5 | SIZE 40 | |
MVE 500/15 | 518 | 5 | 0.25 | 68 | 1.06 | 21 | SIZE 40 | |
MVE 700/15 | 693 | 7 | 0.37 | 77 | 1.32 | 27.4 | SIZE 50 | |
MVE 800/15 | 807 | 8 | 0.4 | 73 | 1.36 | 28.3 | SIZE 50 | |
MVE1100/15 | 1045 | 11 | 0.4 | 73 | 1.40 | 35.8 | SIZE 50 | |
MVE 1400/15 | 1406 | 14 | 0.45 | 75 | 1.78 | 59.8 | SIZE 60 | |
