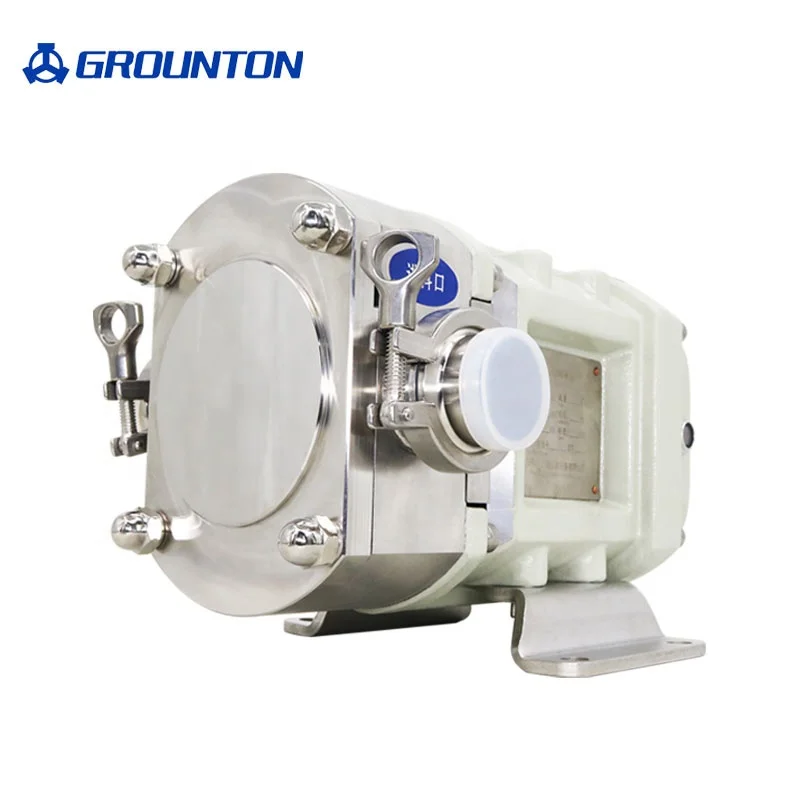

GROUNTON Small Mud Slurry Sludge Vacuum Rotary Lobe Pump

A rotary lobe pump is a positive displacement pump with two rotors in the pump head. The two rotors are fixed to the two shafts and rotate synchronously in the opposite direction. The rotation creates a vacuum volume on the inlet side. The liquid is drawn into the pump head and travels in the chamber between the rotor and the pump head housing and is extruded on the outlet side. The pump has a wide range of viscosity suitability. It has the characteristics of low speed, high efficiency, stable operation, strong self-priming ability, convenient pump operation and preheating. The pump features a multi-style seal for reliable performance and long life. It is an ideal conveying equipment for food, pharmaceutical, chemical, oil, daily life and so on.

Hygienic standard: All parts in contact with the medium (material) are made of stainless steel (SUS304, AISL316, 316L), in line with hygienic standards.

Working efficiency: up to 90%

medium transmission: it can transport high viscosity medium up to 1.5 million CPS, AS AS AS sensitive medium, containing solid soft particle media, up to 60%.

Reversible operation: using the pump's symmetrical structure, reversible conveying direction, forward suction, reverse flushing.

Seal: Provides many types of sealing options, Optional double-sided mechanical seal design, suitable for dry running.

Positioning structure: unique rotor installation design, accurate positioning, easy

maintenance . Maintenance: compact structure, small footprint, no need to move the pipeline system during maintenance.

Wear-resistant: all contacts The parts are made of stainless steel with almost no wearing parts.

Low speed operation: low working speed, a certain gap between the rotor and the rotor and the pump body , no friction, low noise, long service life.

Low cost: high work efficiency, Low consumption, environmental protection, less maintenance and long life.

Lx series sanitary rotor pump has various conveying modes and driving forms. It can be changed according to customer requirements and can be divided into, for example, fixed speed, stepless speed regulation, variable frequency speed regulation, servo drive type and explosion proof type. According to the requirements of customer transportation methods and hygiene requirements, the categories are divided into horizontal conveyor type, vertical conveyor type, mobile type and sanitary type.

The unique design structure ensures product performance and durability.

1 ,seal diversity choice, you can choose Teflon seal, or single and double mechanical seal.

2 ,rotor and pump body are made of 304/316L food grade material.

3 ,unique and rotor Mounted Design, Precise Positioning, the Easy to Overhaul.

4, Stainless Steel Double Bolts are Fixed, More stable and the Easy to Assemble and disassemble.

5, Heavy Duty the Tapered Ball bearings

6, Synchronous Gears CAN BE the Selected from Straight teeth and helical Gears. at The Gears have high hardness, smoother torque rotation and low noise operation.

7 ,can provide multi-directional installation.

Household Chemicals: the SOAP, the SOAP, Toothpaste, Glycerin

Fine Cleaning Chemicals: Fuels, Pigments, Additives, Adhesives

Chemical Fiber: Polyester Fiber, Rayon, Polypropylene Fiber.

Papermaking: Starch Paste, slurry, DEFOAMER.

Coatings: Paints, Inks, Resins.

Food : chocolate, syrup, cream, mayonnaise, jam.

Cosmetics: creams and lotions, hair gels, essential oils.

Pharmaceutical: pills, syrup, extracts, emulsions, pharmaceutical pastes

Botou City Guangteng Machinery Equipment Manufacturing Co., Ltd. is a company integrating R&D, production and sales. Under the technical research and development department, to provide customers with product technology improvement and customization services.

The core components of the product are all developed by It is manufactured by improved processing technology, which ensures the processing precision of each component of the product, as well as the working precision, and improves the working efficiency and quality of the product. Each production line is equipped with professional quality inspectors to Carry out rigorous testing to ensure that each set of products meets the standards.

We specialize in the manufacture of a wide range of liquid fluid delivery equipment such as cam pumps, stainless steel food pumps, gear oil pumps, centrifugal pumps, screw pumps, diaphragm pumps, magnetic pumps and more. Our company can also produce qualified products To customers' customization.

We have experienced technical team, advanced processing technology, strict inspection process, and provide competitive price and high quality products. Our products have a good market in the United States, India, the Middle East, Europe, Africa and other Countries and regions. Continuous innovation is the core development goal of the GROUNTON brand pump.

We always focus on product quality, providing customers with professional technical services and excellent after-sales service. In order to build a global, branded product, we welcome every customer to develop with us. We welcome customers, business associations and friends from all over The world to contact us for cooperation and mutual benefit.

Package: Export plywood case
Shipping: Usually, we ship the goods by air or ocean.
