High Gain 10-18 DBi 2g 3g 4g LTE Wifi Base station antenna Long Range 15km Barrel Omni Outdoor Antenna With RG174 Cable
US $3.98-8.95 / piece
5 piece(s)Minimum order
Model Number:
BF4GBNX235X62SL2000
Type:
Base station Antenna, Cellular Antenna
Place of Origin:
Guangdong, China
Brand Name:
bfwireless
Name:
4g Outdoor Base Station Antenna
Frequency Range (MHz):
600-2700mhz or customizable
Privacy Policy:
Samples are free within a certain price range
Other recommendations for your business
$0.47-1.69
10 pieces (MOQ)
Contact us
Quik Detail
| Model Number | BF4GBNX235X62SL2000 |
|---|---|
| Type | Base station Antenna, Cellular Antenna |
| Place of Origin | Guangdong, China |
| Brand Name | bfwireless |
| Name | 4g Outdoor Base Station Antenna |
| Frequency Range (MHz) | 600-2700mhz or customizable |
| Input Impendence(Ω) | 50Ω |
| V.S.W.R | <1.8 |
| Max Input Power (w) | 50w |
| Polarization | Vertical |
| Gain (dBi) | 10-18dBi or customize |
| Cable Length(M) | 1M/2M/3M or Customized |
| Conector Type | N-F/SMA connector |
Product Detail
Our Advantages
Product Information
OEM/ODM
Length/Connector/Color/Gain Can Be Customized
IP67 Water and Dust Protection Rating
Waterproof
Environmental
Protection
Wide Coverage
4G Outdoor Base Station antenna
* Frequency Range: 698 - 2700MHz; Gain:10-12DBi; Direction: Omni-directional; Cable Length: 2meters; Cable Type: RG174; Antenna
Connector：Dual SMA Male（pin inside）.
* NOTE: Please check your device frequency and interface before purchase.
* Compatible with: Huawei 4G LTE Wireless Router B525 B525S B315 B593 B880 B890 B310 E5186 E5175; ZTE MF28G MF28D MF288 MF286
MF285 MF283 MF275U MF275R MF25D Z723EL WF721 MF279;
* Before use, please turn off the power of your device, then plug in the antenna, and then turn on the power again.
Connector：Dual SMA Male（pin inside）.
* NOTE: Please check your device frequency and interface before purchase.
* Compatible with: Huawei 4G LTE Wireless Router B525 B525S B315 B593 B880 B890 B310 E5186 E5175; ZTE MF28G MF28D MF288 MF286
MF285 MF283 MF275U MF275R MF25D Z723EL WF721 MF279;
* Before use, please turn off the power of your device, then plug in the antenna, and then turn on the power again.
Two Different Interface Options for Easy Installation
Product Specifications
Meet Your Various Needs
Frequency Range | 600-2700mhz OEM |
Item | Outdoor Base Station Antenna |
Gain | 10-18dBi or customize |
V.S.W.R | <1.8 |
Impendance | 50Ω |
Cable Type | RG174 or Customize |
Cable Length | 1M/2M/3M or customize |

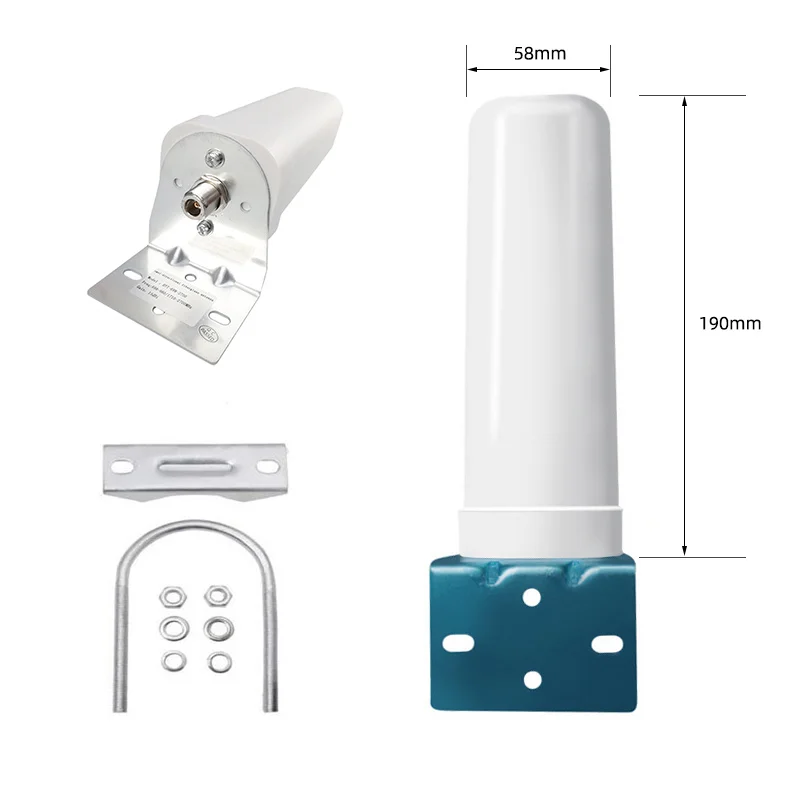

Antenna size | 235*62MM |
Connector type | N-F/SMA or customize |
Maximum lmput power | 10W |
Radiation | Omni |

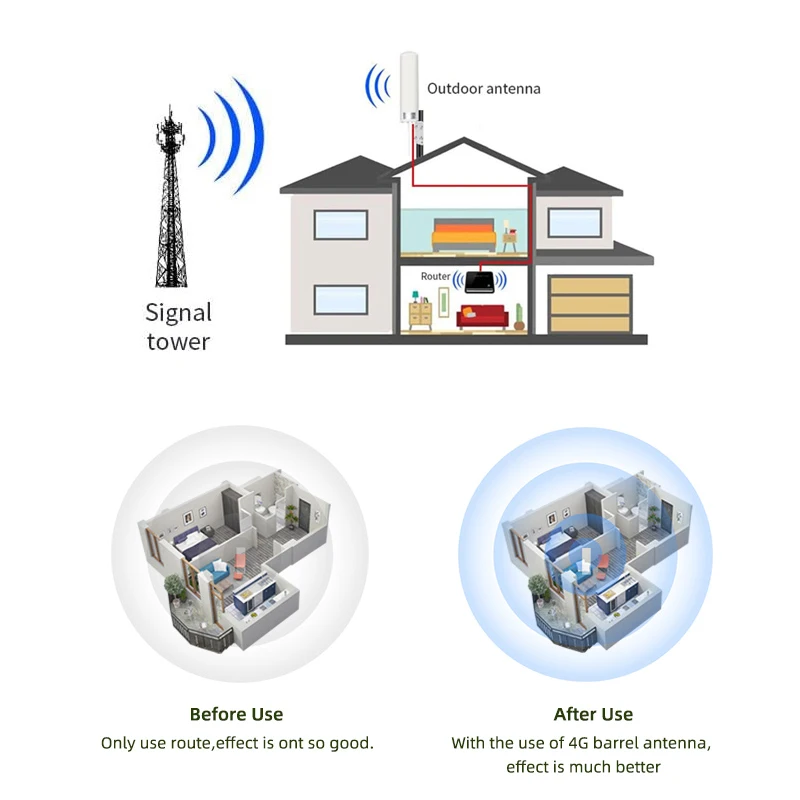

Installation Instructions
A Wide Range of Applications
Company Profile
About BAT Wireless
The company’s product line spans a wide range of communication fields, including but not limited to mobile communications, wireless networks, the Internet of Things, and satellite communications.
· We are dedicated to providing our customers with high-quality, high-performance antenna solutions.
· We have a professional R&D team ready to solve any problems you may have.
· We have several dedicated anechoic chambers for precise antenna design and performance evalution.
· Strictly implementing the ISO9001 quality management system and obtained the relevant certifications
Why Choose Us
R&D Facility
Specialized Anechoic Chamber
The multi-probe test system’s anechoic chamber complies with the CTIA specification for sampling density, offering a mature and stable solution. It is ideally suited for research, development, and testing by wireless terminal manufacturers. The system features a vertical 24-probe ring array with a 15-degree sampling interval. Following the CTIA process, it enables accurate OTA testing and supports the use of a MIMO probe array for data throughput testing.
> 65m
Emission distance
<± 5dbt
Gain deviation
120m3
Anechoic Chamber Size
Manufacturing Procedures
We Support All Kinds Of Shipping Methods
We support all types of shipping methods:
such as Express, Air, Sea, and recommend the optimal logistics routes
Ensuring the safety of goods and the fastest delivery
Sample Lead Time: 5-10 Business Days
Lead Time for Large Quantity Orders: 7-10 Business Days
Lead Time for Large Quantity Orders: 7-10 Business Days
FAQ：
1: Are you a manufacturer or a trading company?
A: We are a wireless technology company specializing in R&D, design, and manufacturing.
2: Would you be able to send us a sample of the antenna for testing?
A: Yes, we would be happy to provide you with the antenna samples for testing and are also able to customize products according to your specifications.
3: What is the lead time for a customized sample order?
A: The lead time for a customized sample order is up to 10 days (usually within one week).
5: Do you offer customization services?
A: Yes, we provide customization services, including both OEM and ODM options.
6: What’s the minimum order quantity?
A: We are happy to accommodate any order quantity.
