High Quality 3 Point PTO Drive Rotary Tiller with Stone Burier for Sale
US $600.00 / unit
1 unit(s)Minimum order
warranty:
1.5 years
weight (kg):
405
video outgoing-inspection:
Not Available
machinery test report:
Not Available
core components:
Engine
type:
stone burier
Privacy Policy:
Samples are free within a certain price range
Other recommendations for your business
Contact us
Quik Detail
| warranty | 1.5 years |
|---|---|
| weight (kg) | 405 |
| video outgoing-inspection | Not Available |
| machinery test report | Not Available |
| core components | Engine |
| type | stone burier |
| use | farm |
| place of origin | Jiangsu, China |
| brand name | NEWBANG |
| key selling points | High Productivity |
| After-sales Service Provided | No overseas service provided |
| Model | SB165 |
| Dimensions(L*W*H) | 1760*1330*920mm |
| Structure weight | 405kg |
| Working width | 1550mm |
| Working efficiency | 2400-3200mm/h |
| PTO Turnning speed | 540r/min |
| PTO Spline | 6x8x700mm |
| Power required | 35-45hp |
| Certification | CE |
Product Detail
Product Description

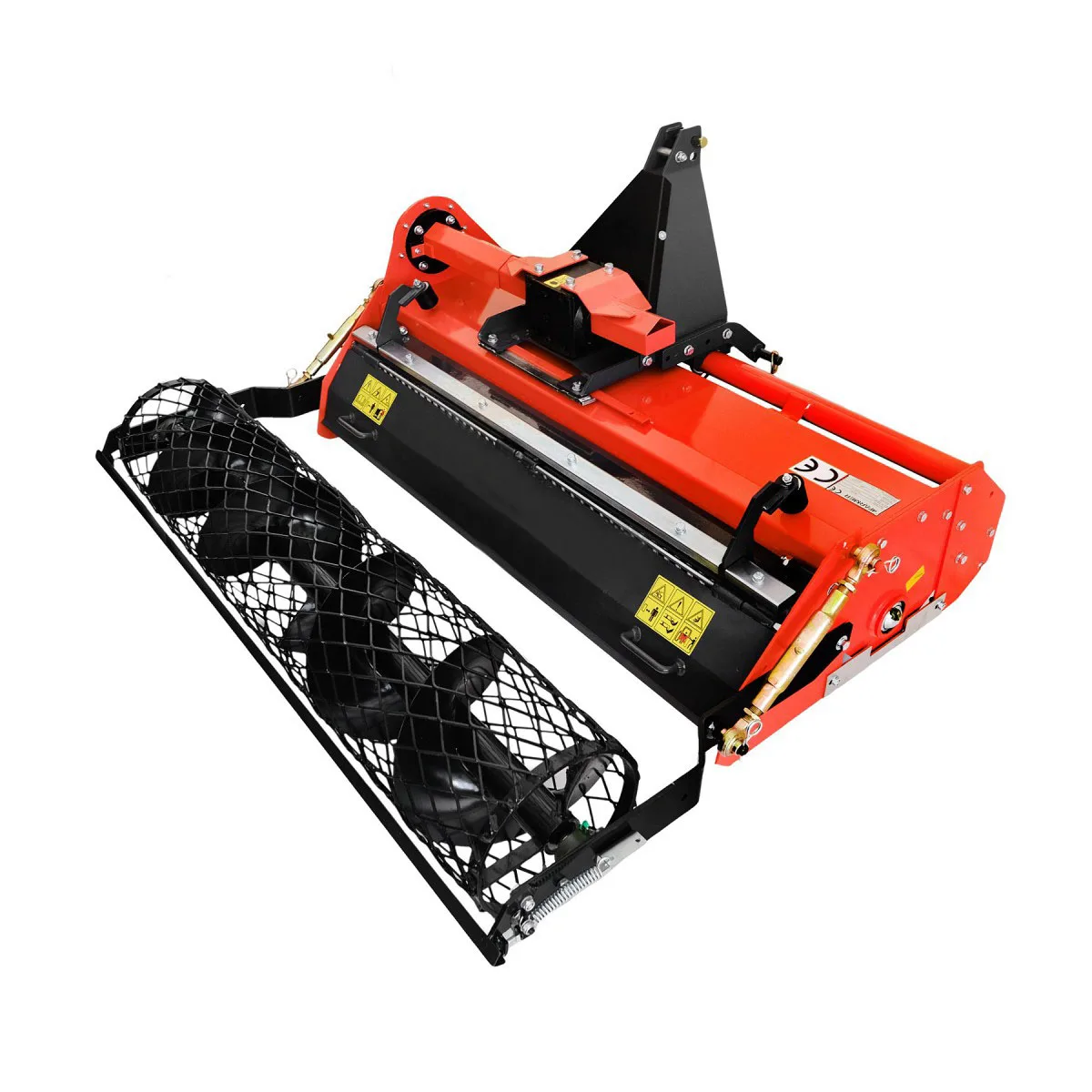

Rotary Tiller With Stone Burier
The SB series stone burier is suitable for working in orchards and for gardening.
Sturdy cast-iron gearbox, side skids, side chain drive, automatic tensioner, cage roller, Cat. I and II universal three-point hitch, EC safety guards. The shift (120 mm) of the three-point hitch is mechanical and manual and does not require the use of levers.
Sturdy cast-iron gearbox, side skids, side chain drive, automatic tensioner, cage roller, Cat. I and II universal three-point hitch, EC safety guards. The shift (120 mm) of the three-point hitch is mechanical and manual and does not require the use of levers.
Model | SB105 | SB125 | SB145 | SB165 |
Dimensions | 1160x1330x920mm | 1360*1300*920mm | 1560*1300*920mm | 1760*1300*920mm |
Structure Weight | 330kg | 355Kg | 380Kg | 405Kg |
Working Efficifency | 1500-2000㎡/h | 1800-2400㎡/h | 2100-2800㎡/h | 2400-3200㎡/h |
Working Depth | 120mm | 120mm | 120mm | 120mm |
Working Width | 950mm | 1150mm | 1350mm | 1550mm |
PTO Turnning speed | 540r/min | 540r/min | 540r/min | 540r/min |
PTO Spline | 6*8*700mm | 6*8*700mm | 6*8*700mm | 6*8*700mm |
Power Required | 20-28hp | 25-30hp | 28-40hp | 35-45hp |
Detailed Images
Related Products
Packing&Shipping
Company Introduction
Yancheng Newbang Machinery Co., Ltd. is one of the major tractor implement and ATV implement manufacturers in China.
Our products range: rotary tiller, backhoe, mower, post hole digger, wood chipper, log splitter, box blade with rippers and so on(30 series and more than 200 models).
Newbang's implements are CE and ISO9001 certified and our products are mainly exported to North America, South America,Europe,Asia, etc. We get a good reputation from the worldwide customers.
Our products range: rotary tiller, backhoe, mower, post hole digger, wood chipper, log splitter, box blade with rippers and so on(30 series and more than 200 models).
Newbang's implements are CE and ISO9001 certified and our products are mainly exported to North America, South America,Europe,Asia, etc. We get a good reputation from the worldwide customers.
