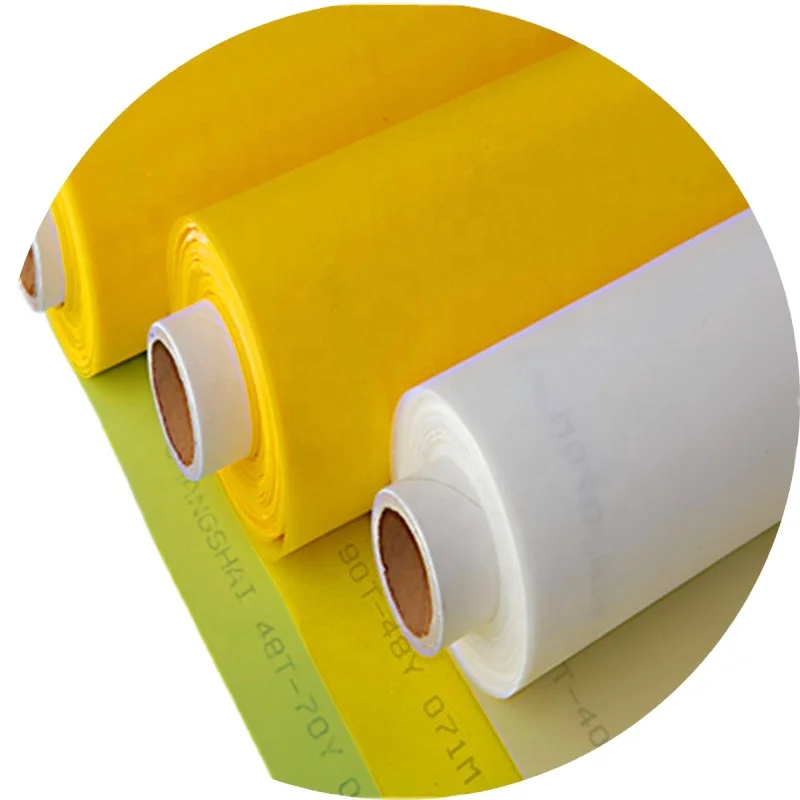

High Quality Silk Screen Printing Mesh Bolting Cloth White Style Polyester Nylon Mesh for Textile Printing

50 meter(s)Minimum order
Material:
100% Polyester
Weave Type:
Plain
Elasticity:
low
Printing:
Polyester Screen Printing
Monofilament Style:
Yes
Place of Origin:
Shanghai, China
Privacy Policy: Samples are free within a certain price range

Contact us

Send Inquiry

Quik Detail

Material

100% Polyester

Weave Type

Plain

Elasticity

low

Printing

Polyester Screen Printing

Monofilament Style

Yes

Place of Origin

Shanghai, China

Brand Name

Shangshai, Shangshai

Model Number

SS-PET7-165

Type

polyester screen printing mesh

Weaven Type

Plain

Mesh Count

18-420mesh/inch

Thread Diameter

31-350um

Width

165cm

Color

White

Length

50m/roll

Delivery time

about 3days after payment received

package

roll packing

Product Detail

High Quality Silk Screen Printing Mesh Bolting Cloth White Style Polyester Nylon Mesh for Textile Printing

Product Description

1

Shangshai has both domestic materials and imported materials yar.(Imported from Japan or Switzerland)

Specification Details of Bolting cloth printing mesh for printing:

1.Material: 100% Polyester

2.Mesh count: 18mesh(7T)-420mesh(165T)

3. Width: 0.6m-3.65m

4.Length: 30-70m per roll

5.Thread diameter:31-350um

6.Color: white/yellow/orange

7.Packing: PVC bag inside for each roll, then carton,then waterproof bag outside

Features & advantages of Bolting cloth printing mesh for printing:
1. Faster turnaround time from the screen room to the pressroom
2. Good diathermancy
3. High air permeability
4. Acid resistance and Alkali resistance
5. Long working life
6. Hard wear
7. Three factories for manufacturing
8. Imported weaving machines from Switzerland and Italy



Packaging & Shipping

7

ShangShai have two ways of packing.

1.Mesh rolls in pp bag,2-10rolls one carton,with waterproof bags outside,at last packing belt to strengthen.

2.Fold the mesh into the pp bag,then put into the cartons,with waterproof bags outside,at last with packing belt.

Shipping Ways in ShangShai.

Shanghai Shangshai can offer different kinds of shipping,we can deliver the goods with different method based on your order quantity.



1.Send to Amazon we choose UPS and Fedex Commonly

2.Large quantities to choose shipping by sea is cost effective.Sometimes by air if customer is urgent in need.

3.Customers choose express commonly to send them samples.

4.SF EXPRESS and  truck  are domestic used.

   (SF usual send to Korea,HongKong,USA)



Notice:

Package:For easy transportation,We'll fold the samples order mesh in one package,When you receive the goods, you will see creases, so that it will not affect the use of the mesh, don't worry it.



Company Information

Welcome to our Factory!

Shanghai Shangshai Bolting Cloth Manufacturing Co.,Ltd is a professional manufacturer of all kinds of Screen Printing Mesh, Filter Mesh, Flour Mesh,and stainless steel mesh established in 1997.With two factories. The factory in Hebei covers 119 ACRES (79,373 square meters), the other factories are located in Shanghai.

Equipments: 300 SWISS SULZER RUTI weaving machines, 5 Benninger high speed warping machines, 2 water washing heat setting machines. The width of weaving machines: 280cm, 330cm, 360cm, 390cm.Exported Countries: America, Germany, Japan, Britain, Italy, Russia, Brazil, Turkey, Argentina, Pakistan, Thailand, Singapore, Korea, Mexico, etc all over the world.

Model Specification   (/cm) Mesh count (mesh/inch) Thread Diameter     (um) Mesh opening(um) Open Area(%) Thickness(um)
SS-PET7/1080 7 18 350 1080 57 640
SS-PET8/950 8 20 300 950 58 550
SS-PET10/700 10 25 250 700 49 620
SS-PET12/583 12 30 250 583 49 450
SS-PET16/425 16 40 200 425 46 400
SS-PET20/320 20 50 180 320 41 350
SS-PET24/297 24 60 120 297 51 240
SS-PET29/213 29 76 120 213 41 240
SS-PET32/213 32 80 100 213 46 200
SS-PET34/194 34 86 100 194 44 221
SS-PET36/178 36 90 100 178 41 216
SS-PET40/170 40 100 80 170 46 150
SS-PET43/153 43 110 80 153 43 130
SS-PET47/142 47 120 71 142 44 135
SS-PET53/125 53 135 64 125 44 120
SS-PET59/105 59 150 64 105 39 120
SS-PET62/100 62 155 64 100 37 115
SS-PET64/92 64 163 64 92 35 120
SS-PET68/83 68 173 64 83 32 130
SS-PET72/84 72 183 55 84 37 100
SS-PET77/75 77 195 55 75 33 105
SS-PET90/66 90 230 48 66 35 85
SS-PET100/61 100 250 40 61 37 70
SS-PET110/52 110 280 40 52 33 85
SS-PET120/42 120 300 40 42 26 68
SS-PET140/37 140 350 34 37 24 58
SS-PET150/34 150 380 31 34 26

46

SS-PET165/420  165  420  31  25  17

 46

Remark:The following datas are theoretic ,please reference the actual datas if there it differs.
