Impact-resistant Marine Pad HDPE Hull Fender Plate for Ships
US $2.90-4.50 / kilogram
50 kilogram(s)Minimum order
Place of Origin:
Shandong, China
Brand Name:
Abosn
Model Number:
ABS-27
Material:
UHMWPE
Thickness:
customized
Size:
customized
Privacy Policy:
Samples are free within a certain price range
Other recommendations for your business
$49.00-52.00
1 piece (MOQ)
$1.80-2.50
500 kilograms (MOQ)
$2.50-3.90
1 kilogram (MOQ)
$2.60-3.20
50 kilograms (MOQ) Contact us
Quik Detail
| Place of Origin | Shandong, China |
|---|---|
| Brand Name | Abosn |
| Model Number | ABS-27 |
| Material | UHMWPE |
| Thickness | customized |
| Size | customized |
| Processing Service | Cutting, Moulding, Logo |
| Color | Customized |
| Application | Engineering |
| Product name | UHMWPE FENDER PADS |
| Usage | protection |
| Colour | Customized Colour |
| Packing | wooden crates |
| Sample | Availble |
| Delivery time | 15 Days |
| Certification | ISO9001 |
| Feature | Wear Resistance |
Product Detail
UHMWPE (Ultra High Weight Polyethylene) and HDPE (High Density Polyethylene) Board are widely used as a part of marine fender in ports instructure due to its excellent abrasion resistance, good low temperature resistance, impact resistance, self-lubrication and corrosion resistance. It can protect the dock and hull from damaging.
ABOSN UHMWPE1000 ultra high molecular weight polyethylene (UHMW-PE) is the first choice material for facing steel fender panels and other heavy duty applications. They also used in corner pad for marine fender cover/ coner marine fender pads for jetty . It combines very low friction with excellent impact strength and a wear resistance much better than steel. Most popular is UHWMPE1000-DS which is 'double-sintered' and work-hardened for extra durability. The standard colour is black, but if other colours are needed then UHMWPE 1000-V 'virgin' grade also comes in yellow, white, grey, blue, green and red. UHMW-PE1000 materials are compounded to resist ozone and UV radiation. They do not degrade or rot .
Specification
UHMWPE Marine Fender PadCharacters:
1.very flat on the surface
2.The thickness tolerance is +2 -0,some made according to your requirements.
3.The color is pure and any color can be made by us.
4.We can give you an accurate size of HDPE plate with advanced machine.
5.Different shaped HDPE plate also can be made by us like bending sheet.
6.According to different requirements with different application, special specifications can be customized, like anti-UV,
fire-resistant,anti-static and with other characters.
UHMWPE Fender pads applications:
Bridge buttress protection
* Pontoon pile guide bearings
* Fast-launch lifeboat slipways
* Beltings for smaller workboats
* Fender panel facing pads
*Fender pile rubbing strips
*UE-V fender shields
*Facing strips for jetties and wharves

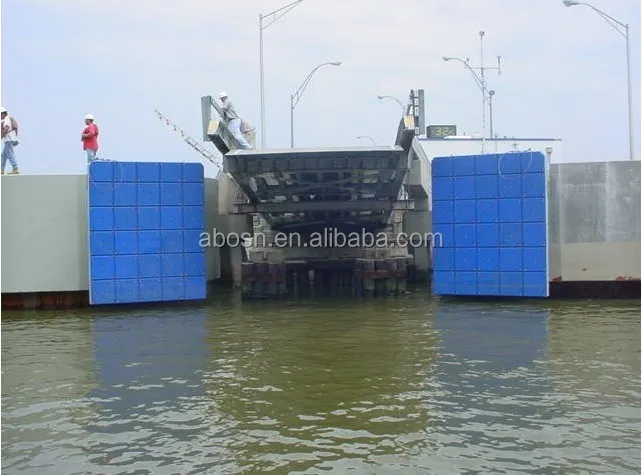

*Lock entrance and lock wall protection
*Mitres on lock gates
1.very flat on the surface
2.The thickness tolerance is +2 -0,some made according to your requirements.
3.The color is pure and any color can be made by us.
4.We can give you an accurate size of HDPE plate with advanced machine.
5.Different shaped HDPE plate also can be made by us like bending sheet.
6.According to different requirements with different application, special specifications can be customized, like anti-UV,
fire-resistant,anti-static and with other characters.
UHMWPE Fender pads applications:
Bridge buttress protection
* Pontoon pile guide bearings
* Fast-launch lifeboat slipways
* Beltings for smaller workboats
* Fender panel facing pads
*Fender pile rubbing strips
*UE-V fender shields
*Facing strips for jetties and wharves
*Lock entrance and lock wall protection
*Mitres on lock gates
Property | Unit | Value | ||
Density | g/cm3 | 0.93-0.96 | ||
Average molecular weight | g/mol | 3million- 10 million | ||
Tensile strength (23°C in air) | MPa | 22 | ||
Breaking strength | MPa | 42 | ||
Tensile strain at break | % | 600 | ||
Charpy impact strength (notched) | mJ/mm2 | No break | ||
Ball indentation hardness | N/mm2 | 42 | ||
Shore hardness | -- | 65-70 | ||
Abrasion | % | 70-80, steel = 100 | ||
Static Friction Coefficient | -- | ≤0.16 | ||
Kinetic Friction Coefficient | -- | ≤0.10 | ||
Water Absorption | -- | NIL | ||
Elongation at break at 23°C | % | ≥300 | ||
Temperature Resistance | °C | -269 to +85 | ||
Melt Temperature | °C | 130-140 |
Characteristics for UHMWPE Plastic Dock Marine Fender Pad Panel Sheet
1. UHMW exhibits virtually no water absorption
2, Non-Toxic
3. Low coefficient of friction
4. Corrosion resistant
5. Abrasion and impact resistant
6. Wear Resistant
7. Dielectric
8. Weatherproof
UHMWPE sheet is one kind of high performance engineering plastic marine fender pads, it has the good functions which other plastic sheet do not have : Excellent abrasion resistance Low coefficient of friction No moisture absorption Corrosion resistant Excellent
noise abatement Excellent impact strength Maintains key physical properties to -200℃ UHMWPE marine fender
Certifications
Customer reviews
Packing&Shipping
Packing: Plastic Film, Pallet, Wooden Box, Carton, etc.
Shipping: International Express (DHL,UPS,FEDEX,EMS,etc.),Ocean Transport, Air Transport
Shipping: International Express (DHL,UPS,FEDEX,EMS,etc.),Ocean Transport, Air Transport
FAQ
Q:Is the size fixed?
A:No.we can meet your needs according to your acquirement. That is to say, we accept to customize.
Q: What is your MOQ of this item?
A: 500 kilograms.
Q: Is it all right to make customer's own brand name?
A: That's all right to engrave your own brand name.
Q: What is your company's available production capacity?
A: Usually 9000 kilograms per year.
Q. Can you special order a product for me?
A. We are typically able to special order products for customers. OEM service .
A:No.we can meet your needs according to your acquirement. That is to say, we accept to customize.
Q: What is your MOQ of this item?
A: 500 kilograms.
Q: Is it all right to make customer's own brand name?
A: That's all right to engrave your own brand name.
Q: What is your company's available production capacity?
A: Usually 9000 kilograms per year.
Q. Can you special order a product for me?
A. We are typically able to special order products for customers. OEM service .
