Industrial Dust Extractor for Concrete Floor Dust
Other recommendations for your business
Contact us
Quik Detail
| machine type | Industrial Vacuum Cleaner |
|---|---|
| condition | New |
| place of origin | Jiangsu, China |
| brand name | Bersi |
| fuel | Electric |
| use | dust cleaning |
| cleaning process | Cyclone |
| cleaning type | jet pulse filter cleaning |
| material | Metal |
| voltage | 220-240V/110V |
| power(w) | 3.6 kw |
| warranty | 1 Year |
| weight (kg) | 83 kg |
| After-sales Service Provided | Overseas service center available |
| Motor | Ametek motor |
| Filter | HEPA Filter |
| Vacuum | 220mba |
| Air flow | 600m3/hour |
| Product name | Industrial dust extractor |
| Tank | continuous bag |
| Key word | dust extractor for concrete floor dust |
| Name | dust extractor |
| Certification | ce |
| Applicable Industries | Food & Beverage Factory |
| Showroom Location | Canada, United Kingdom, United States, Argentina |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| Marketing Type | Hot Product 2019 |
| Warranty of core components | 1 Year |
| Core Components | motor |
Product Detail

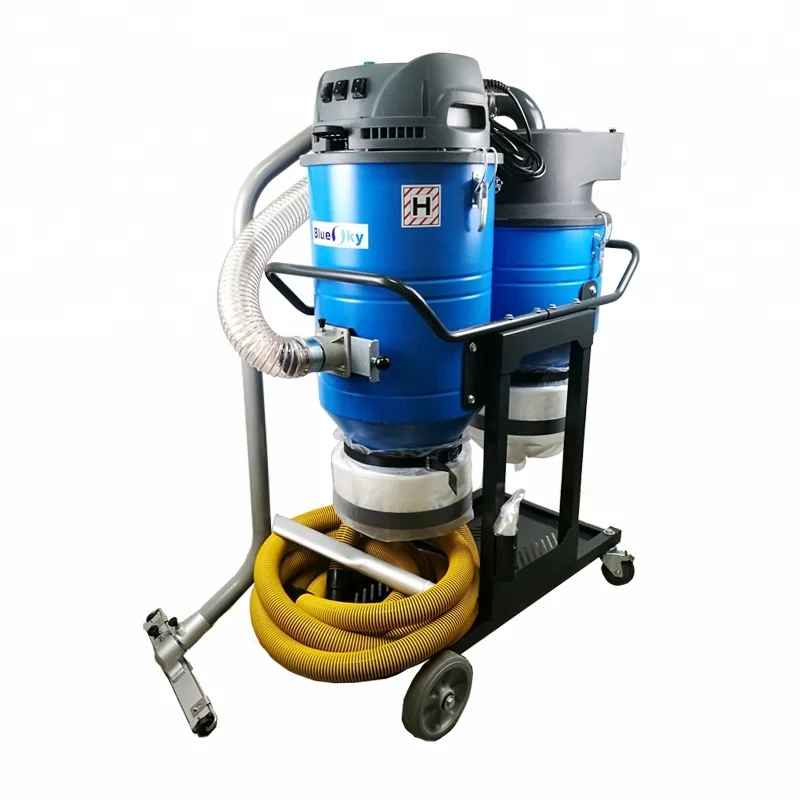

Industrial dust extractor for concrete floor dust
Main features:
1.ThreeAmetekmotors,forcontrollingtheon/offindependently.
2.Continuousdrop-downbaggingsystem,easyandfastloading/unloading.
3.Withcycloneseparator,filteringmorethan98%dust,makefewerdusttoenterinvacuumcleaner,prolongthevacuumsworkingtime,protectthefiltersinvacuumandextendthelifetime.
4.ImportedpolyesterfiberPTFEcoatedHEPAfilter,lowpressureloss,highfilterefficiency.
Technical data sheet:
Model | Unit | T502 | TS502-110V | T503 | T503-110V | |||
Voltage | 240V/50-60HZ | 110V/50-60HZ | 240V/50-60HZ | 110V/50-60HZ | ||||
Power(kw) | KW | 3.6 | 2.4 | 3.6 | 2.4 | |||
HP | 4.8 | 3.2 | 4.8 | 3.2 | ||||
Current | Amp | 12 | 16 | 12 | 16 | |||
Vacuum /water lift | mBar | 220 | 220 | 220 | 220 | |||
inch | 90 | 72 | 90 | 72 | ||||
Airflow (max) | cfm | 354 | 285 | 354 | 285 | |||
m³/h | 600 | 485 | 600 | 485 | ||||
Filter area | m2 | 3.0 | ||||||
Filter capacity | 0.3μm>99.5% | |||||||
Jet pulse filter cleaning | Automatic filter cleaning+Jet pulse filter cleaning | |||||||
mm | 650X1030X1460 | |||||||
inch | 25.7"X40.5"X57.5" | |||||||
kg | 80 | 83 | ||||||
ibs | 182 | 189 | ||||||
Applications:
The T5 is a concrete dust extractor integrated with a cyclone separator. With 3 large Ametek motors,T5 has plenty power to be connected to any mid or larger size grinders ,scarifiers, shot blasters to extract freshly cut, friable concrete dust.Withcycloneseparator,filteringmorethan98%dust,makefewerdusttoenterinvacuumcleaner,prolongthevacuumsworkingtime,protectthefiltersinvacuumandextendthelifetime.
Integrated with a cyclone separator
Withcycloneseparator,filteringmorethan98%dust,makefewerdusttoenterinvacuumcleaner,prolongthevacuumsworkingtime,protectthefiltersinvacuumandextendthelifetime
Vacuum motor
T5 equipped with three powerful US brand Ameterk
motor, with life of 800-1000 working hours. Give a
reliable support for your job.
HEPA Filter
The T5 features a conical PFTE coated HEPA filter rated at 99.5% efficiency @ 0.3 microns. Use this machine for cleanup in between concrete grinding passes or as a general construction vacuum. It will effectively pick up a wide range of building materials and debris.
Dust free jet pulse filter cleaning
Like all Bersi dust extractors, this model features the Jet Pulse filter cleaning system for dust-free cleaning of the filter. This unique system efficiently purges the pre-filter within the closed vacuum-there's no need to open the machine and create a dust hazard.
Mess-Free Dust Disposal
The T5 features drop-down dust collection into a plastic bag or continunous bagging system so you can enjoy mess-free dustless disposal.
T5 machine accessories
S/N | P/N | Description | Quantity | Unit |
1 | T5 dust extractor | 1 | PC | |
2 | S8046 | D50 S wands | 1 | PC |
3 | C2031 | D70/50 reducer | 1 | PC |
4 | S8008 | D50 EVA anti stactic hose | 7.5 | Meter |
5 | S8006 | D50 hose cuff | 1 | PC |
6 | S8045 | D50 floor brush | 1 | PC |
Packaging: Pallet packing | ||
Size | 650(L)*1030(W)*1460(H) | |
Weight | 83kg/Unit | |
Package Details | The regular package is carton box, fumigated wooden box packing for optional, we will customize the pallet size according to the models Nos, load more quantities to save space when shipped by container. | |
