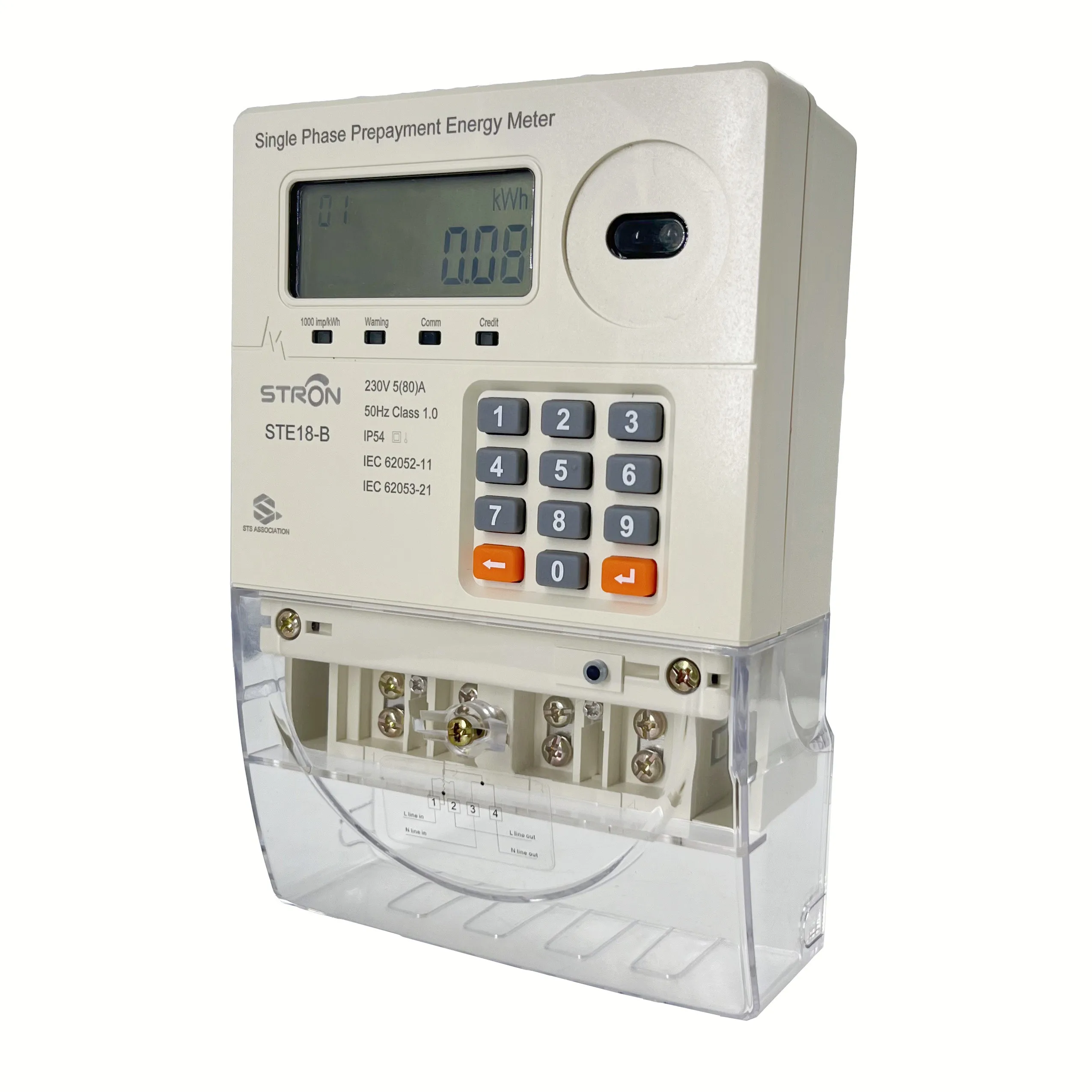

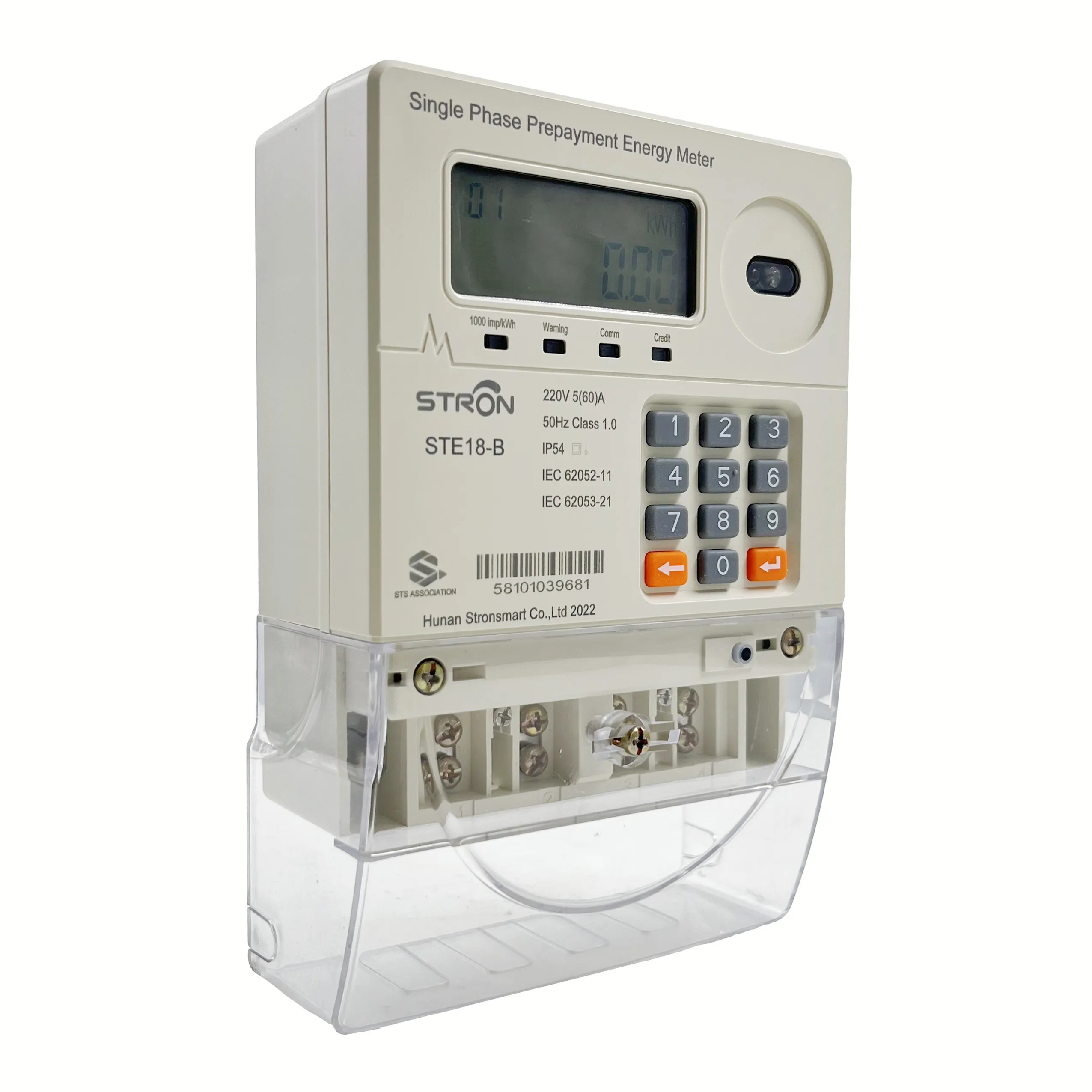

IP54 Intelligent Multi Tariff/Anti-tamper/Power-limit Prepaid Keypad Single Phase Electricity Meter With Vending Software
US $12.00-14.00 / piece
100 piece(s)Minimum order
Place of Origin:
Hunan, China
Brand Name:
Stron
Model Number:
STE18-B
Display Type:
Digital Only
Phase:
Single Phase
Measuring Energy Range:
999999.99
Privacy Policy:
Samples are free within a certain price range
Other recommendations for your business
$59.00-67.00
30 pieces (MOQ)
$30.00-40.00
100 pieces (MOQ)
$32.00-49.00
100 pieces (MOQ)
$40.00-50.00
30 pieces (MOQ)
$30.00-35.00
200 pieces (MOQ)
$8.80-9.90
100 pieces (MOQ) Contact us
Quik Detail
| Place of Origin | Hunan, China |
|---|---|
| Brand Name | Stron |
| Model Number | STE18-B |
| Display Type | Digital Only |
| Phase | Single Phase |
| Measuring Energy Range | 999999.99 |
| Accuracy Class | Class I |
| Output Voltage | 230V |
| Operating Temperature | -25℃-70℃ |
| Dimensions | 18.5*12*5.5 |
| Product name | Prepaid Energy Meter |
| Voltage | 240V |
| Standard | STS Standard |
| Display | LCD |
| Frequency | 50-60HZ |
| Warranty | 2 years |
| OEM | Support |
| Certificate | ISO9001; ISO14001; STS Standard |
| Communication | LORA-RF supported |
| Vending Software | Supported |
Product Detail
Product Description
The STE18-A is an STS Standard compliant, keypad type, automatically connection/disconnection prepaid token type electricity meter.
The integrated keypad is offered to enter recharge TOKEN and check information by short codes.Stronpay electricity vending software could be integrated to local Mobile Money Payment Platform like M-PESA, Alipay, MTN, Airtel, etc. So users can top up PAYG electricity by mobile money without leaving the house.
It also have the remote function by adding communication module such as LORA-RF, AMI system works with data concentrator, recharging/reading/controlling the smart meter remotely.
Main Features
1. Ingress protection IP54 waterproof
2. Up to 8 years battery life
3. Remote connection/disconnection
3. Remote connection/disconnection
4. STS Standard
5. Real-time clock
6. Utilities can set TOU price into meter on request
7. Anti-Tamper Magnetic field protection
8. LORA-RF communication(optional)
9. Pay by mobile payment via API, like M-PESA, Alipay, MTN,Airtel,etc.
Technical Parameters | ||||||||
Nominal Voltage | 230V | |||||||
Working Voltage Range | 70%~120%Un | |||||||
Nominal Frequency | 50-60Hz | |||||||
Basic Current (Ib) | 5A | |||||||
Maximum Current (Imax) | 80A | |||||||
Starting Current (Ist) | 20mA | |||||||
Active Energy Constant | 1000imp/kWh | |||||||
Measurement Accuracy | Class 1.0 | |||||||
Power Consumption in Voltage Circuit | <2W <8VA | |||||||
Power Consumption in Current Circuit | <1VA | |||||||
Operation Temperature Range | -25℃-70℃ | |||||||
Storage Temperature Range | -40℃-85℃ | |||||||
Electro Magnetic Compatibility | ||||||||
AC Insulation Strength | 4kV at 50Hz during 1min | |||||||
Impulse voltage 1.2/50 us mains connections | 8kV | |||||||
Electrostatic Discharges | Contact discharge | 8kV | ||||||
Air discharge | 16kV | |||||||
Electromagnetic RF Field | 27MHz-500MHz | 10V/m | ||||||
100KHz-1GHz | 30V/m | |||||||
Fast transient burst test | 4kV | |||||||
Mechanical requirements | ||||||||
Meter shell Water proof protection Rate | IP54 | |||||||
Protection | Class II | |||||||
Meter Dimensions
Basic Functionality | ||||||||
Function | Details | |||||||
Prepayment | STS Standard, recharge by input 20digits TOKEN | |||||||
Low credit alarm | Alarm value can be set by inputting corresponding TOKEN | |||||||
Prepaid and post-paid switch | Meter can be switch to prepaid mode or post-paid mode | |||||||
Load control function | Meter can be programmed for load control threshold, If the current power is more than threshold. The meter will cut off user load. | |||||||
Event recording | Meter can record the tamper event, open cover event, purchase event and TOKENS. | |||||||
Self-testing | Meter has a self-test function, it can test LCD and relay etc. and report the result directly | |||||||
Anti-tamper | Meter will automatically close the valve after detection of magnetic field and open cover event | |||||||
TOU Tariff | TOU Tariff can be set by inputting corresponding TOKEN | |||||||
Overdraft Collection | Electricity Overdraft can be collected day by day or month by month | |||||||
Communication | The meter is available with AMI system through LORA RF or Bluetooth 4.0 on request | |||||||
Information Inquiry | Consumer could check the data like Credit Remain, Total Purchased and Total Credit by input the short code | |||||||
Liquid Crystal Display | 999999.99 | |||||||
Stronpay Vending Software
Operation of vending software
1. Login vending system
2. Meter number registration
3. Customer information registration
4. Price Setting
5. Open Account
6. Vending/Topping up meters
7. Get the Token
8. Input Token to meter with keypad
9. Recharging successfully
2. Meter number registration
3. Customer information registration
4. Price Setting
5. Open Account
6. Vending/Topping up meters
7. Get the Token
8. Input Token to meter with keypad
9. Recharging successfully
API-Stronpay vending software can easily integrated with local mobile payment via API
Company Introduction
Hunan Stron Smart Co., Ltd is founded in 2007, is the leading supplier of smart meters in China. There are 500 employees in our company including 100 technical engineers, among which 100 people with professional title. We are devoting ourselves to be the intelligent product service provider.
Stron owns a strong technical team comprised of industry professional engineers and eminent experts and has applied for over 100 patents and intellectual property rights, while a number of its products and technologies have won the national, provincial and municipal awards.
Product packaging
