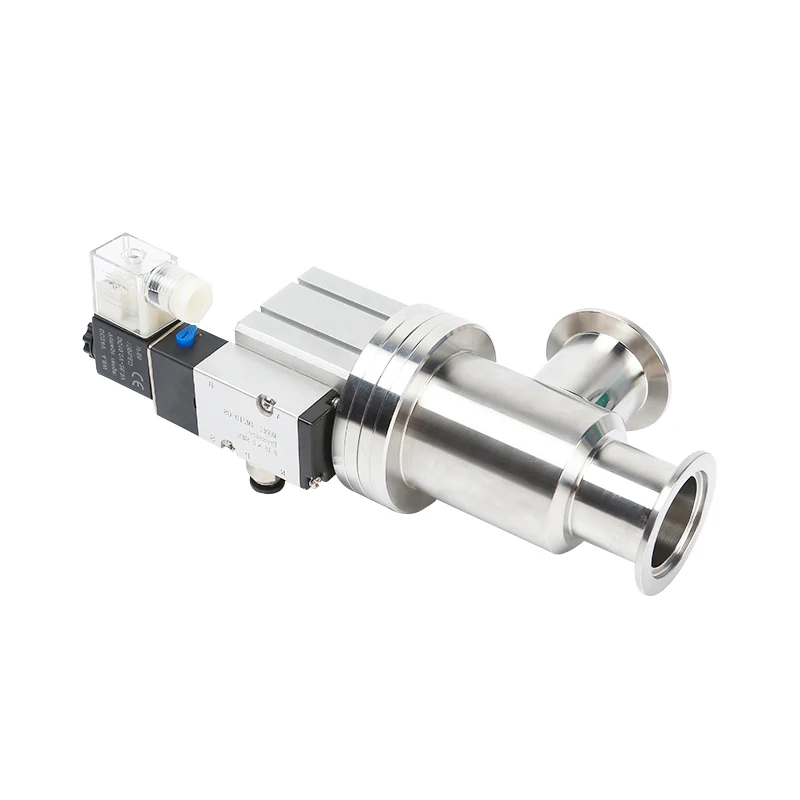

KF16/KF25/KF40/KF50 High Vacuum Pneumatic L Type Angle Valve with Bellow NC Fitting NW25 Sealed Flapper SS304 SS316L Angle Valve
US $70.00 / piece
10 piece(s)Minimum order
application:
Vacuum and Semiconductor
port size:
KF, ISO-K, ISO-F, CF
warranty:
1 Year
place of origin:
Zhejiang
model number:
VZL01LC
power:
Manual
Privacy Policy:
Samples are free within a certain price range
Other recommendations for your business
$10.00-30.00
10 pieces (MOQ)
Contact us
Quik Detail
| application | Vacuum and Semiconductor |
|---|---|
| port size | KF, ISO-K, ISO-F, CF |
| warranty | 1 Year |
| place of origin | Zhejiang |
| model number | VZL01LC |
| power | Manual |
| temperature of media | High Temperature, Normal Temperature |
| type | Angle Valves, Falpper Valves |
| brand name | QiiMii |
| structure | Angle |
| media | Vacuum |
| customized support | OEM, ODM |
| Body material | SS304/SS316L |
| Seal Material | FKM, NBR |
| Structure | L Type |
| Size | KF16, KF25, KF40,KF50 |
| MOQ | 1 |
| Package | Standard Package |
Product Detail
Products Description
Used as ventilation, shut-off or high-vacuum valves, butterfly valves have a simple structure, and can be installed in the vacuum exhaust line of a semiconductor tools. Butterfly Valves are characterised by their compact design, and high conductance. Made of stainless steel 304 or 316L, these valves are also available manually operated or electro pneumatically.
Design and Feature
Swivel valve plate with FKM seal
Compact size and light weight,easy installing
Minimal face-to-face dimension,Minimal installing space
Flow by adjusting the degree of opening and can be set to an arbitrary degree of opening.
Technical Parameters
Valve Body Material:SS304/SS316L
Seat Seal Material:FKM, NBR in option
Vacuum Range:10^5 -6.7x10^(-5) Pa
Leak Rate:1.3x10^(-5) Pa. L/s
Cycles Until Service:100,000 Times
Angle Opening:0-90 Degree
Temperature Range:(1)FKM Seat Seal:-30°C to 150°C (2)NBR Seat Seal:-25°C to 80°C
Operated:Manual, Pneumatic Actuator, Electric,Actuator
Compressed Air:0.4-0.8Mpa
Opening/Close Speed:(1)Aluminium Actuator:≤3S (2)Electric Actuator on-off type:Standard 30 S. 10S, 15S option
Solenoid Voltage:AC220V,50Hz,6W or on request
Standard Electric Actuator:On-off type
Available with Position Indicator:Optional signal feedback
QiMing offers all series angle valves suited for vacuum applications such as high vacuum process processes, high vacuum applications in pumping systems, semiconductor technology and research systems.
Detailed Photos
Product Name: | Vacuum Valves | ||||||
Material: | SS304/SS316L | ||||||
Size: | KF16-KF50 | ||||||
Vacuum Range： | 1X10-6Torr | ||||||
Angle valves are a device that manually or pneumatic rotates the thread to drive the valve shaft up and down, causing the valve seat to open or close, thereby connecting or cutting off the airflow in the vacuum system.Valve body designed in 90° right angle(L type) and 45° right angle(Y type). Connecting Flanges are available in KF, ISO, CF types and Tube ends as well. They are rated for high-vacuum use and pressure rate from 1X10-6 Pa to 1.2x105 Pa, leak rate of 1.3x10-7 Pa L/s.Manually operated angle valves are an excellent solution when automation is not required, they are frequently used in roughing and high-vacuum forelines and make excellent chamber venting valves. QiMing Angle valves are used in applications ranging from semiconductor manufacturing, plasma physics research, to nuclear accelerators
