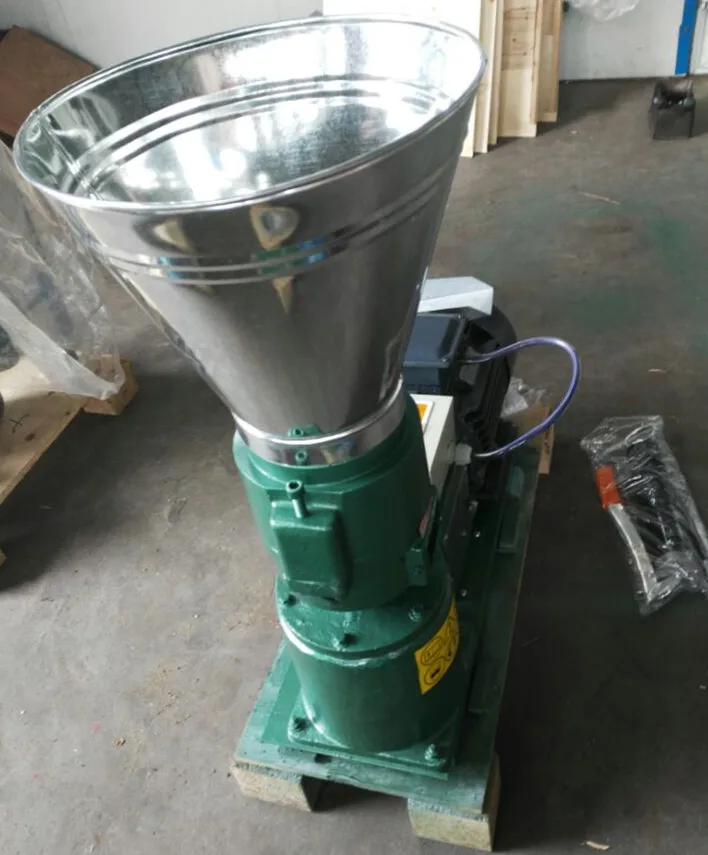

Kl120b 220v Mini Pellet Mill Price

US $450.00-500.00 / set
1 set(s)Minimum order
condition:
New
place of origin:
Shandong, China
brand name:
chengda
model number:
KL120B
type:
Feed Pellet Machine
voltage:
220v
Privacy Policy: Samples are free within a certain price range

Contact us

Send Inquiry

Quik Detail

condition

New

place of origin

Shandong, China

brand name

chengda

model number

KL120B

type

Feed Pellet Machine

voltage

220v

power

2.2kw

dimension(l*w*h)

75*32*61 cm

weight

100 kg

warranty

1 year

After-sales Service Provided

Engineers available to service machinery overseas

Certification

CE, ISO

Color

Grey, blue or as your request

Pellet length

5-50mm

Moisture content

12%-18%

State

granulator

Application

feed, heating, fertilizer

Type

flat die

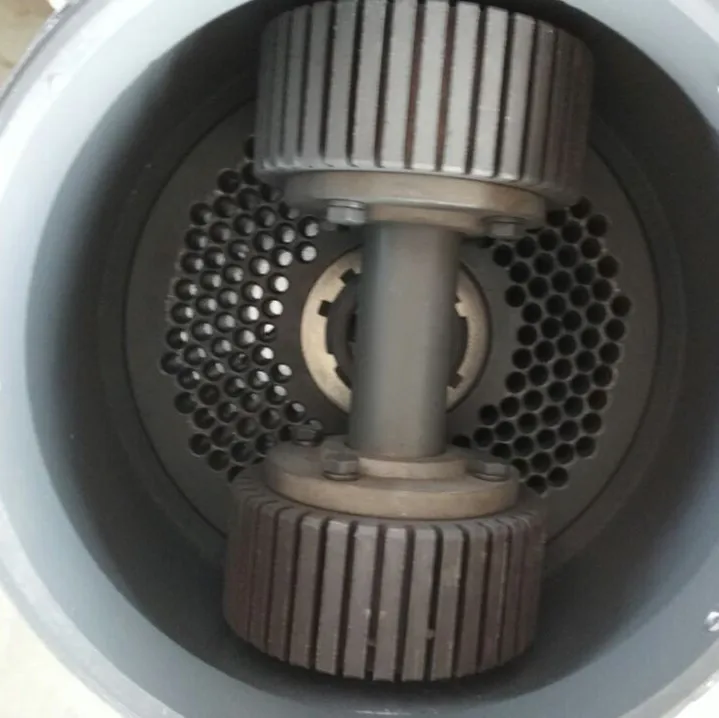

Wearing part

roller and matrix/die/mould

Pellet diameter

2.5-10mm

Running

24 hours continue working

Rotation

die moving

Product Detail



kl120b 220v mini pellet mill price



Product Description

    The KL series pellet mill can make both feed pellets and wood pellets. Raw material can be powder of  biomass straw, stalk, corn, grass, bamboo, tree branches etc.

The pellet mill can be powered by electrical motor, diesel enginen, gasoline engine and tractor. KL-A series pellet mill are driven by the diesel engine or gasoline. KL-B and KL-C series pellet mill are driven by the electrical motor and the KL-P pellet mill are driven by tractor.

Specification



ModelPowerCapacityPellet dia.N/G weightPacking sizeQty/20'/40'
KL120B2.2/3kw50-70kg/h2.5-10mm80/100kg75*31*62cm172/360set
KL120C2.2/3kw50-70kg/h2.5-10mm80/100kg75*31*62cm172/360set
KL150B4kw100-200kg/h2.5-10mm100/120kg77*34*68cm88/186set
KL150C4kw100-200kg/h2.5-10mm100/120kg77*34*68cm88/186set
KL200B7.5kw200-300kg/h2.5-10mm200/230kg100*45*93cm64/134set
KL200C7.5kw200-300kg/h2.5-10mm200/230kg100*45*93cm64/134set
KL230B11kw300-400kg/h2.5-10mm280/310kg115*50*97cm52/108set
KL230C11kw300-400kg/h2.5-10mm280/310kg115*50*97cm52/108set
KL260B15kw400-600kg/h2.5-10mm330/360kg120*50*103cm38/80set
KL260C15kw400-600kg/h2.5-10mm330/360kg120*50*103cm38/80set
KL300B22kw600-800k/h2.5-10mm430/470kg132*52*107cm36/76set
KL300C22kw600-800kg/h2.5-10mm430/470kg132*52*107cm36/76set
KL360C22kw700-900kg/h2.5-10mm470/500kg135*56*107cm32/66set
KL400C30kw900-1100kg/h2.5-10mm630/680kg145*62*115cm16/32set



Advantage

1). Simple structure, wide adaptability, covers a small area, low noise. High efficient and low consumption.
2) .Powder feed, grass meal doesn’t need or with a little liquid, then can be making for granulation. So basic to the moisture content of grain feed granulating before the moisture of the materials, more conducive to storage.
3). Chicken, duck, fish, cattle.pig, birds, dog, etc, than the mixed powder feed can obtain higher economic benefits.
4). Dry processing, the production of feed pellets are high hardness, smooth surface, internal curing, can improve the  animal's digestion and absorption of nutrients.



Photos

 flat die home pellet mill.jpgflat die pellet mill.jpghome pellet mills.jpg



Exhibition Show:

 pellet machine.jpgpellet machine on fair.jpg



Our Services



1. The TM is avaliable for 12 hours in a day and  will reply you within 12 hours if you have any inquiry about our products.

2. We provide 1 year guarantee.

3. We provide english manual and video for installation and operation.

4. We can send technicians for installation and commissioning, training if needed.

Company Information

   Laizhou Chengda Machinery Co., LTD was founded in 1992, which is a high tech enterprise that integrates new product design, development, manufacturing and international trade business. Main products are flat die pellet press, ring die wood pellet machine, biomass pellet machine, wood crusher, hammer mill, pellet cooler, screw conveyor etc.

factory of pellet mill.jpg
