KN3C-201 4 Terminals Toggle Switch
US $0.38-0.40 / piece
100 piece(s)Minimum order
Application:
electrical equipment, Car Boat,Machine
Whether the smart:
NO
Place of Origin:
Zhejiang, China
Brand Name:
Binrong
Model Number:
KN3C-201
Max. Current:
15A
Privacy Policy:
Samples are free within a certain price range
Other recommendations for your business
$0.18-0.20
200 pieces (MOQ)
Contact us
Quik Detail
| Application | electrical equipment, Car Boat,Machine |
|---|---|
| Whether the smart | NO |
| Place of Origin | Zhejiang, China |
| Brand Name | Binrong |
| Model Number | KN3C-201 |
| Max. Current | 15A |
| Max. Voltage | 250VAC |
| Mechanical Life | 10.000 |
| IP level | IP40 |
| Pins | 4p |
| Switch Function | ON/Off |
| terminal | Screw Terminal |
| Material | Plastic |
| Body Color | Black |
| Pin Quantity | 4 |
| Rating | 10A 250VAC / 15A 125VAC |
| Function | ON-OFF |
| Contact Resistance | 50mΩ Max |
| Insulation resistance | 500VDC 100020mΩ Min |
| Withstand Voltage | 1000VAC 1minute |
| Operation temperature | -25~+85°c |
| Electrical Life | 10'000 Cycles |
Product Detail

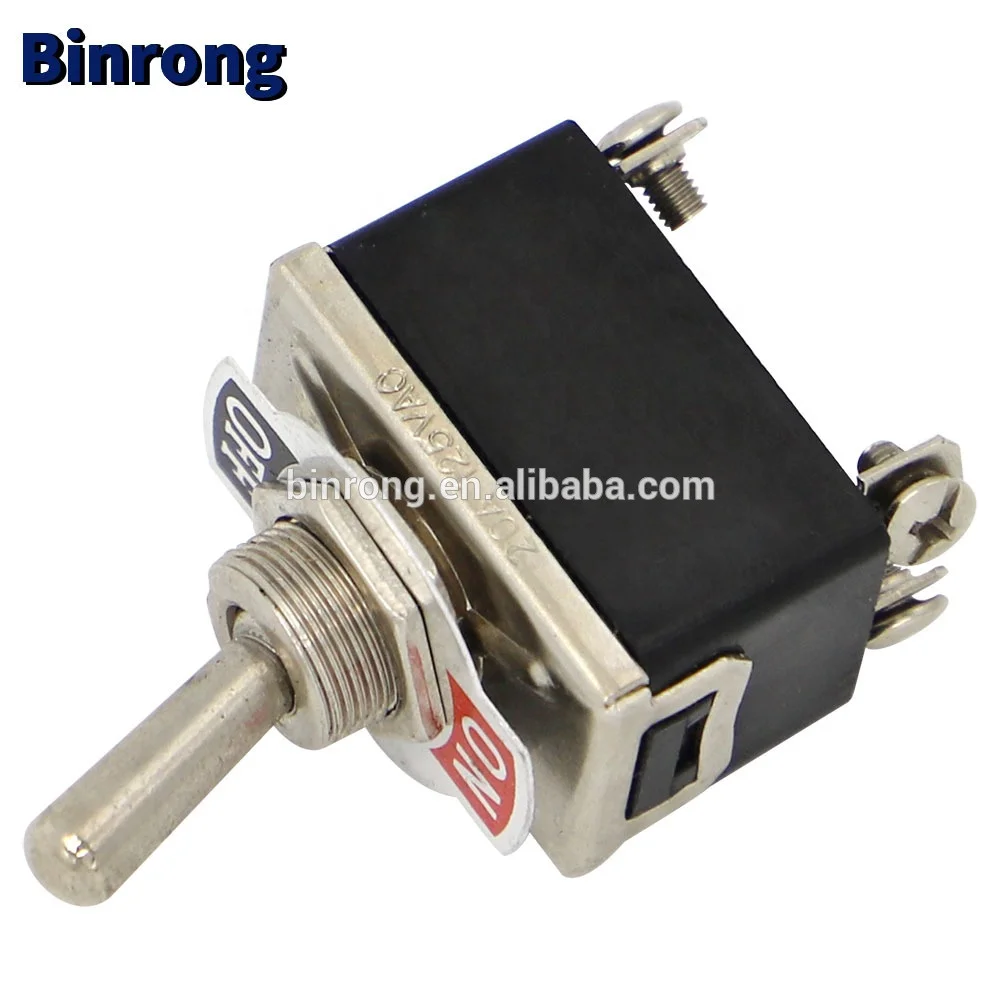

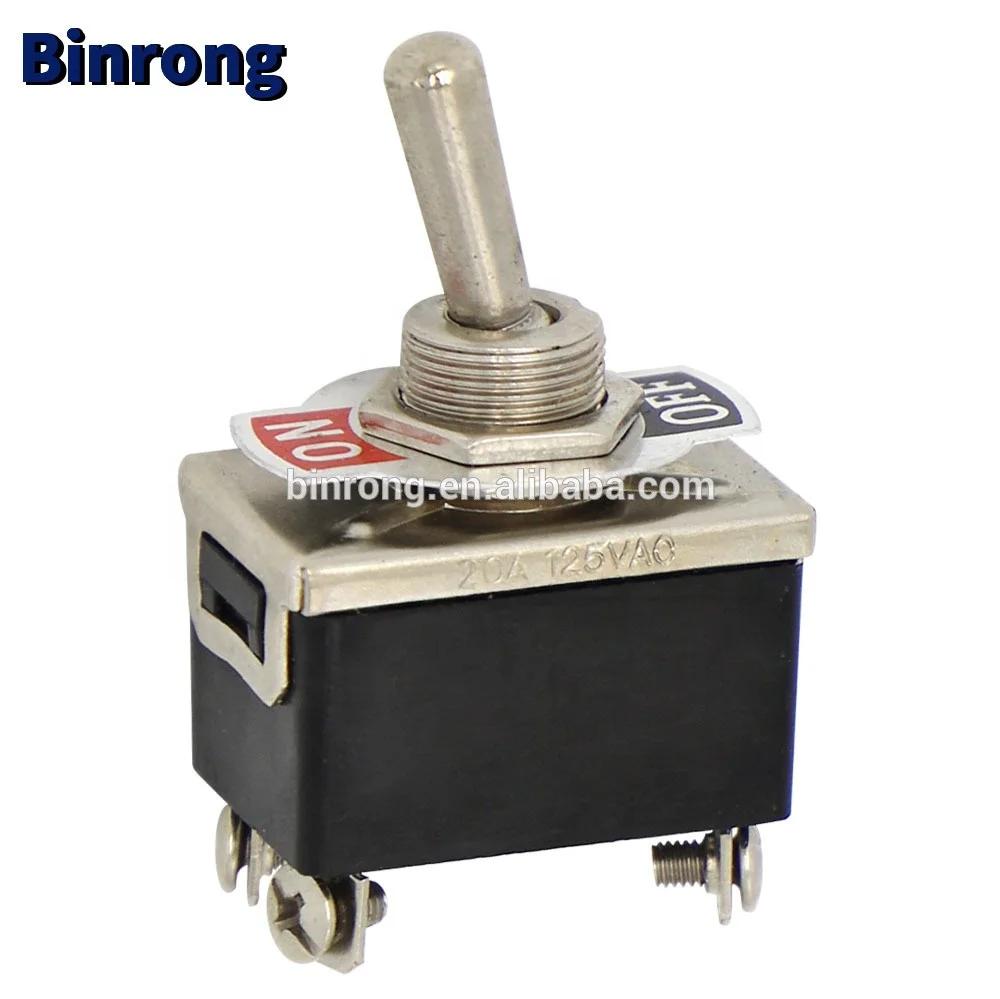

KN3C-201 4 terminals toggle switch
15A 125VAC 10A 250VAC
15A 250VAC 20A 125VAC
| Model No | Pin Quantity | Pin Type | Function | E-TEN Model No |
| KN3C-101 | 2 | Screw terminal | ON-OFF | 1021 |
| KN3C-111 | 2 | Screw Terminal | OFF-(ON) Momentary | |
| KN3C-101P | 2 | Spade Terminal | ON-OFF | |
| KN3C-102 | 3 | Screw Terminal | ON-ON | |
| KN3C-112 | 3 | Screw Terminal | ON-(ON) Momentary | |
| KN3C-103 | 3 | Screw Terminal | ON-OFF-ON | |
| KN3C-113 | 3 | Screw Terminal | ON-OFF-(ON) Momentary | |
| KN3C-123 | 3 | Screw Terminal | (ON)-OFF-(ON) Momentary | |
| KN3C-201 | 4 | Screw Terminal | ON-OFF | |
| KN3C-211 | 4 | Screw Terminal | (OFF)-ON momentary | |
| KN3C-202 | 6 | Screw Terminal | ON-ON | |
| KN3C-212 | 6 | Screw Terminal | ON-(ON) Momentary | |
| KN3C-213 | 6 | Screw Terminal | ON-OFF-(ON) Momentary | |
| KN3C-223 | 6 | Screw Terminal | (ON)-OFF-(ON) Momentary | |
| KN3C-223P | 6 | Spade Terminal | (ON)-OFF-(ON) Momentary | |
| KN3C-101M | 2 | Screw Terminal | ON-OFF | |
| KN3C-101MP | 2 | Spade Terminal | ON-OFF |
