KW8-0 Micro Switch With 1NO1NC 3 Pins Momentary Button KW1-103--Z1A
Other recommendations for your business
Contact us
Quik Detail
| Whether the smart | Yes |
|---|---|
| Place of Origin | Zhejiang, China |
| Brand Name | ZHEV |
| Model Number | ZV YW3-301 / 3 |
| Max. Current | 16A |
| Max. Voltage | 125/250VAC |
| Operating Temperature | -25 ~125℃ |
| Housing color | Green |
| Electrical Life | >100000 cycles |
| Material | Nylon |
| Terminal Type | Solder Terminal |
| Rating | 16A 125/250VAC |
| Terminals' size | 6.3*4.8mm |
| Certification | N |
| Protection Level | IP40 |
Product Detail

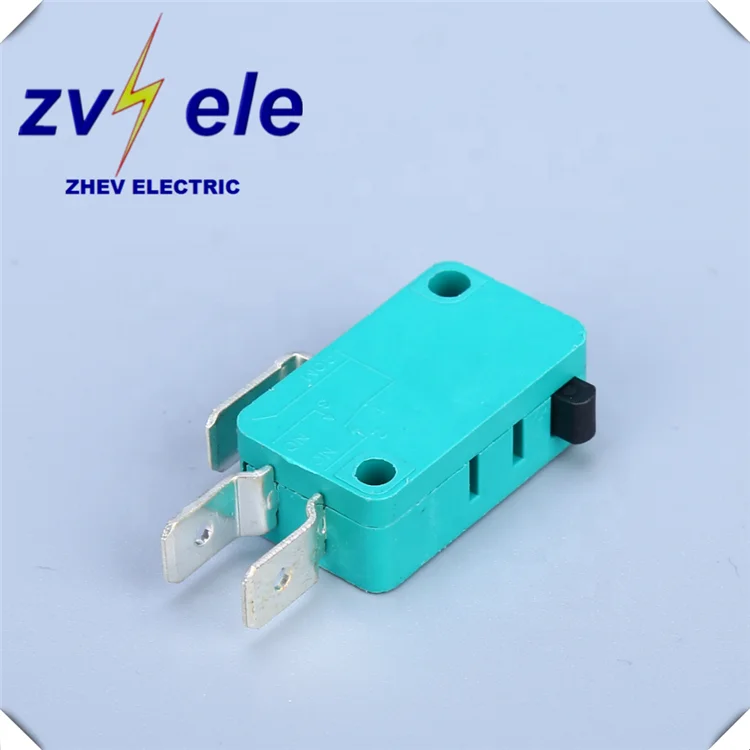

Full green body 8-0 1NO1NC switch 3pins momentary button 6.3x4.8mm legs micro switches
1bag = 100pcs
| 1 Rating: 16A125 / 250VAC |
| 2 Contact Resistance: 30mΩ max |
| 3 Insulation Resistance: 500VDC 100MΩ min |
| 4 Dielectric Strength: 1500VAC, 1Minute |
| 5 Operation Temperature: -25℃ ~ +85℃ |
| 6 Electrical Life: >100,000 Cycles |
You could sent inquiry to me vis Alibaba, or sent email to me directly, then we could go on talking other more details:
1. Free sample, OEM / ODM are welcome.
2. We are factory with competitive price and free sample.
3. Enough stock to meet fast delivery.
4. Alibaba trade assurance.
5. Form E, C/O is available.
6. After sale service team to solve problems after customer receive goods.
7. Inspect every product before delivery.
8. 7*24 hours online service
your request will be solved in time.
8. 100% after sales service
we’ll be together with you for all questions
Q : What kind of payment do you accept ? Can I pay RMB ?
A : We accept T/T(Wire transfer),Western Union, Paypal, Credit Card and Alipay. Please be sure that we can receive the same amount of the Invoice. And you can pay money In RMB. No problem."
Q : What about your delivery time?
A : We have a lot of products in stock.We can send the stock products in about 4 work days.
If without stock,or stock is not enough, we will check the delivery time with you."
Q : How to ship my order ? Is it safe?
A : For small package, we will send it by Express, such as DHL, FedEx, UPS, TNT, EMS. That’s a Door to Door service.
For big packages, we will send them by Air or By sea. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.
Q : Can you provide Certificate of Origin?
A : Yes,Sure.We can offer it. And it's free.
