Made in Vietnam Sheet Cutting Machine Steel Coil Ss Coil Automatic Cut to Length Line for Factory Mill Plant High Quality
US $30,000.00-40,000.00 / set
1 set(s)Minimum order
cutting width (mm):
500 - 2000 mm
material thickness(mm):
0.3 - 6 mm
cutting speed(m/min):
10 - 18 m/min
video outgoing-inspection:
Provided
machinery test report:
Provided
core components:
PLC, Engine, Bearing, Gearbox, Pressure vessel
Privacy Policy:
Samples are free within a certain price range
Other recommendations for your business
$80,000.00-100,000.00
1 set (MOQ)
$100,000.00-110,000.00
1 set (MOQ)
$120,000.00-140,000.00
1 set (MOQ) Contact us
Quik Detail
| cutting width (mm) | 500 - 2000 mm |
|---|---|
| material thickness(mm) | 0.3 - 6 mm |
| cutting speed(m/min) | 10 - 18 m/min |
| video outgoing-inspection | Provided |
| machinery test report | Provided |
| core components | PLC, Engine, Bearing, Gearbox, Pressure vessel |
| coil weight (t) | 12 |
| leveling precision(±mm/m) | 0.5 ±mm/m |
| place of origin | Vietnam |
| brand name | Hong Ky |
| voltage | 380 |
| dimension(l*w*h) | 23*10*3 m |
| key selling points | Eco-Friendly |
| warranty | 2 years |
| Material | Steel Material, SS STEEL |
| Cut length of sheet | 300-4200mm |
| Coil outer diameter | 1000-8000mm |
| Coil inner diameter | 508-610 mm |
| Total electronic consumption | 145kW/380V |
| Cutting accuracy | Length: 0.5mm Based |
| Product Usage | Cut to length |
| Total weight | 50 tons |
| Dimension | 23x10x3 m |
| Warranty of core components | 2 years |
| Condition | New |
| Applicable Industries | Energy & Mining, Other, Manufacturing Plant |
| Showroom Location | Viet Nam |
| Marketing Type | Hot product |
| Weight | 50000 |
| Year | 2023 |
Product Detail
FEATURES AT A GLANCE
Line layout:
Machine specification
* Electric power: 5-37 kw
* Rolling speed: 12-60 m/min
* Machine Dimensions (L x W x H): (2-8)m x (1.2-2.0)m x 1.6m
Raw material
* Steel Thickness: 3 mm-6 mm
* Max Coil Width: 2000 mm
* Material: steel
* Material Strength: G300-G550
Production specification
* Control System: PLC, Touch Screen HMI
* Rolling transmission: Gear motor driven by Inverter
* Cutting system: Hydraulic
* Length Tolerance: ±2.0 mm
* Electric power: 5-37 kw
* Rolling speed: 12-60 m/min
* Machine Dimensions (L x W x H): (2-8)m x (1.2-2.0)m x 1.6m
Raw material
* Steel Thickness: 3 mm-6 mm
* Max Coil Width: 2000 mm
* Material: steel
* Material Strength: G300-G550
Production specification
* Control System: PLC, Touch Screen HMI
* Rolling transmission: Gear motor driven by Inverter
* Cutting system: Hydraulic
* Length Tolerance: ±2.0 mm

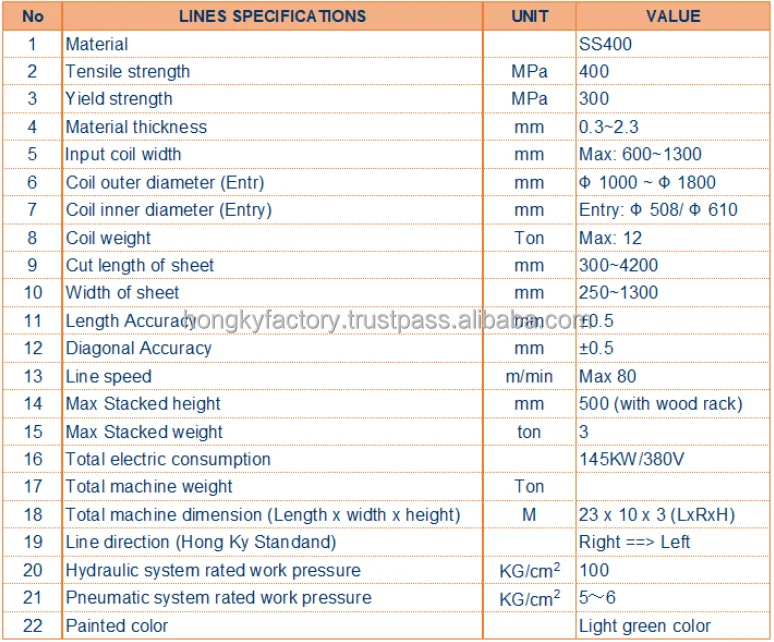

PRODUCT SPECIFICATIONS
SPECIFICATIONS FOR CUT TO LENGTH MACHINE | ||||||
Machine specification | Electric power | Kw | 5.5 - 37 | |||
Machine Dimensions | m | 3.0 m x 1.8 m x 1.6 m | ||||
Raw material | Steel Thickness (BMT) | mm | 0.3 mm – 6.0 mm (3.0 mm – 20.0 mm for Cut To Length Line) | |||
Coil Width | mm | 2000 | ||||
Material Strength | G300–G550 | |||||
Production specification | Forming speed | m/min | 14-18 | |||
Control system | PLC, HMI | |||||
Rolling transmission & Cutting system | Hydraulic, Inverter | |||||
Length Tolerance | mm | ± 2 | ||||
